Panel Lights
Products Details

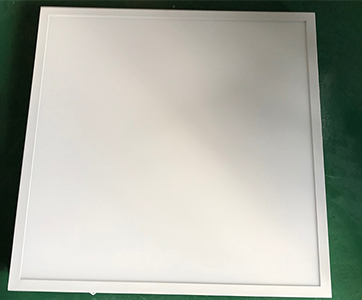

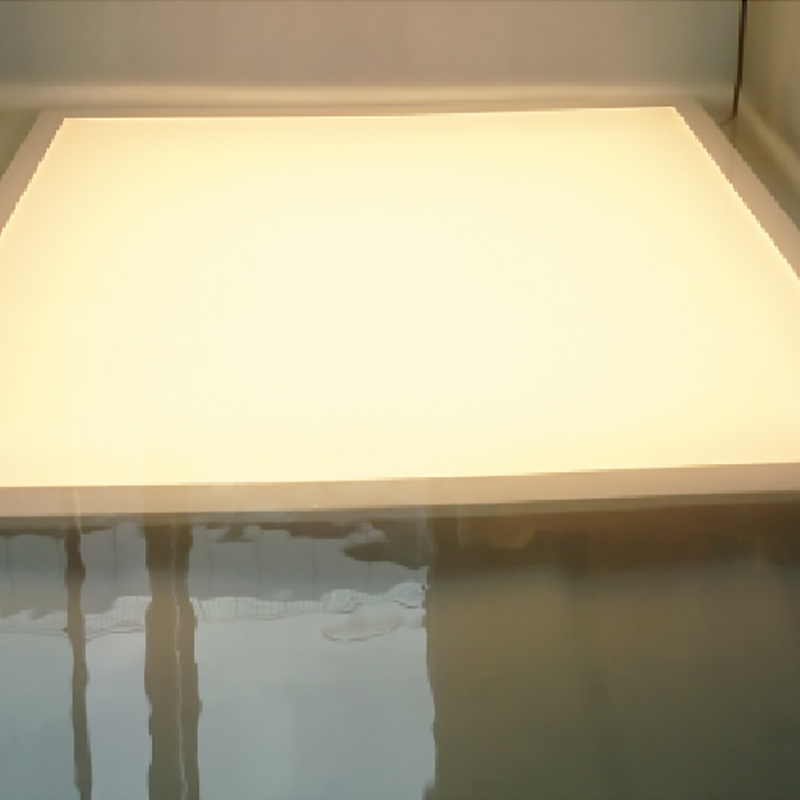

Thanks for choosing IP65 Series. Our Slim LED Panel is designed to replace conventional Grid Panel Light with fluorescent tube fixtures. This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution. Our slim panel has a dedicated driver and elegant appearance to make a space refined and smart, perfectly adapted to fashion or design needs.
◈ FEATURES
bg
1
IP65
Waterproof
3
Competitive
price
2
UGR<17.1
◈ ADVANTAGE
bg

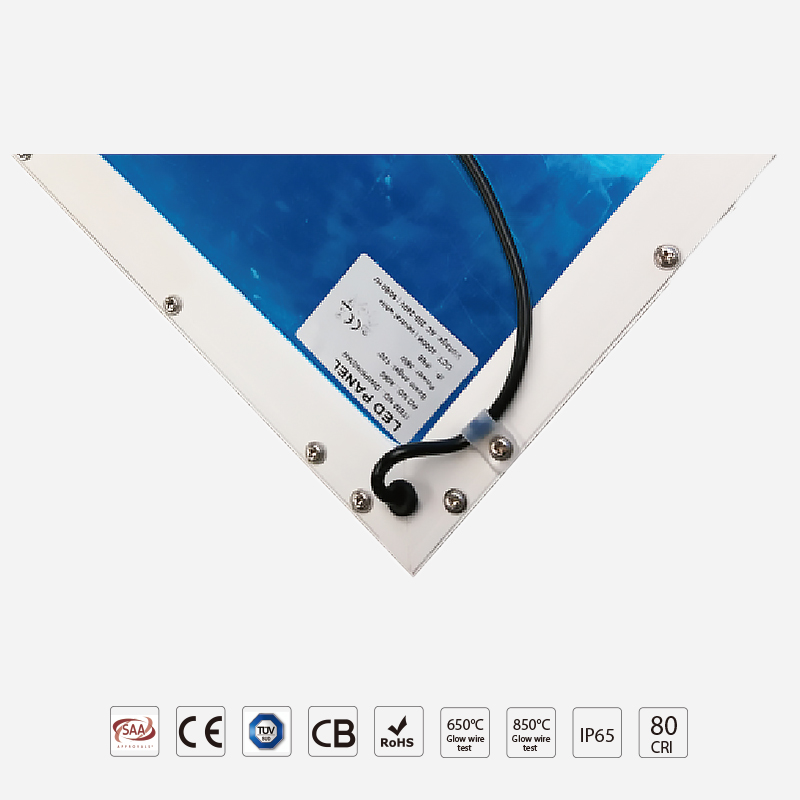

◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Super slim size with only 10mm thickness;
◪ Imported guide plate from Japan Mitsubishi /Taiwan CHIMEI, more than 80% light transmittance;
◪ Pure aluminum frame with white spray treatment, good heat dissipation & elegant appearance;
◪ IP65 test report, IK07 test report, clean room test report are available;
◪ Even light distribution, soft & smooth light, no glare.
◈ SPECIFICATION
bg
IP65 Waterproof UGR<17.1 LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 Lm/W |
3 | CCT | 3000K-6500K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 60° |
6 | UGR | <17.1 |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||

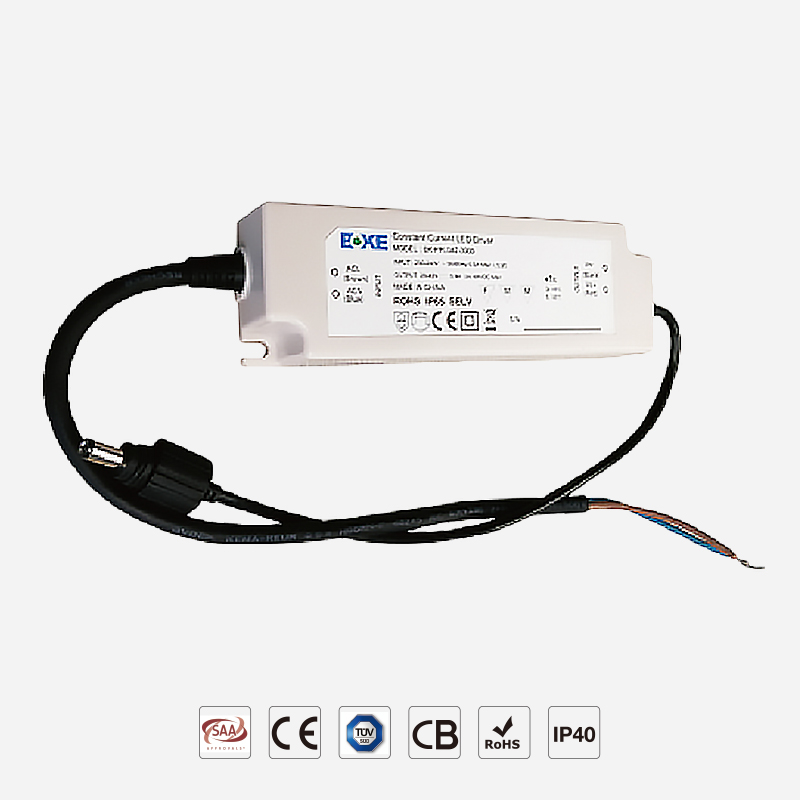

8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP65 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |

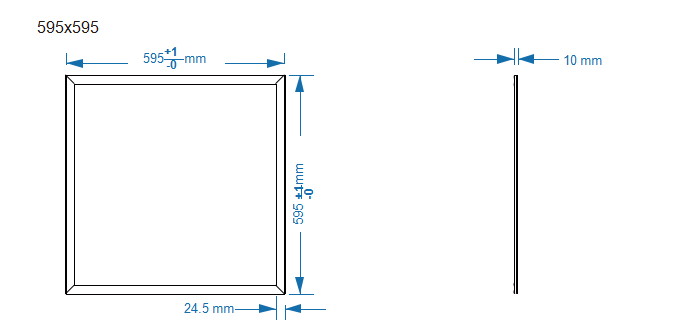

◈ SIZE
bg

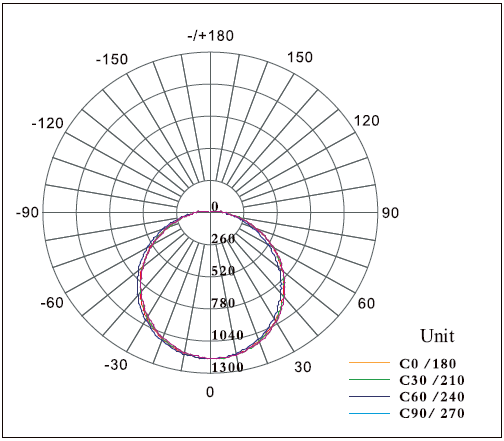

Photometric Data
size
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
100lm/W | DWIPU606036 | 36W | 3600lm | 80Ra | SMD2835 | 595x595x10mm |
DWIPU626236 | 36W | 3600lm | 80Ra | SMD2835 | 620x620x10mm | |
DWIPU3012036 | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x10mm | |
DWIPU606048 | 48W | 4800lm | 80Ra | SMD2835 | 595x595x10mm | |
DWIPU626248 | 48W | 4800lm | 80Ra | SMD2835 | 620x620x10mm | |
DWIPU3012048 | 48W | 4800lm | 80Ra | SMD2835 | 295x1195x10mm |
◈ FLEXIBLE INSTALLATION TYPE
bg
Mehtod A:

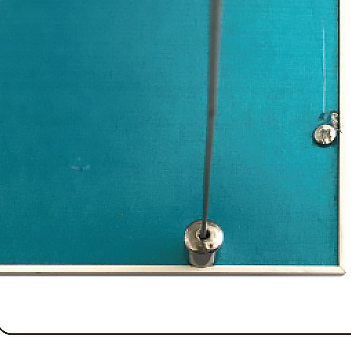

Suspending
Mehtod B:

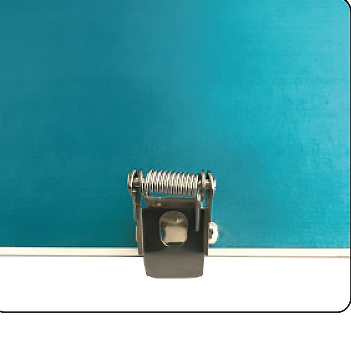

Clips recessed
Mehtod C:
Surface mount

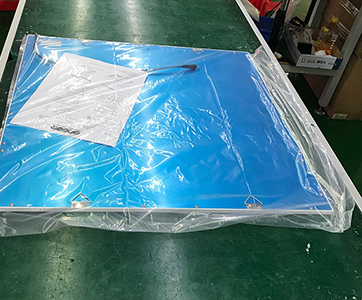

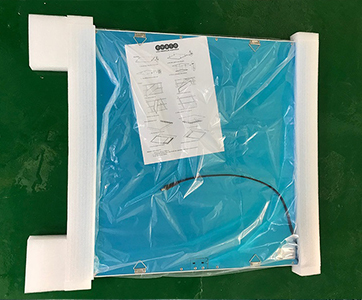

◈ PACKING
bg
1pc panel+1pc driver/box; 4 boxes/ carton
Plastic Bags
Pearl Cotton
Inside Box

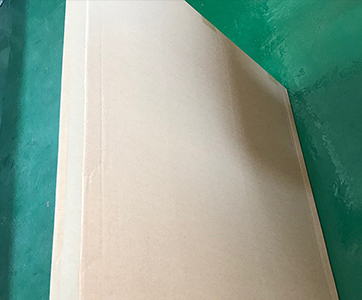

Carton

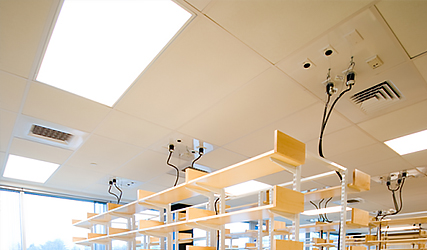

◈ APPLICATION
bg

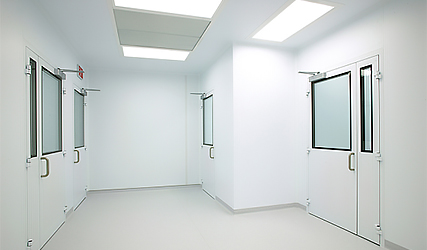

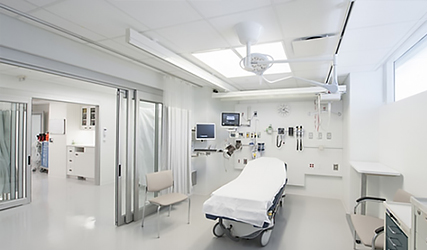

♦ Commercial Offices ♦ Retail/Shopping Malls ♦ Clean room/hospital
