Panel Lights
Products Details

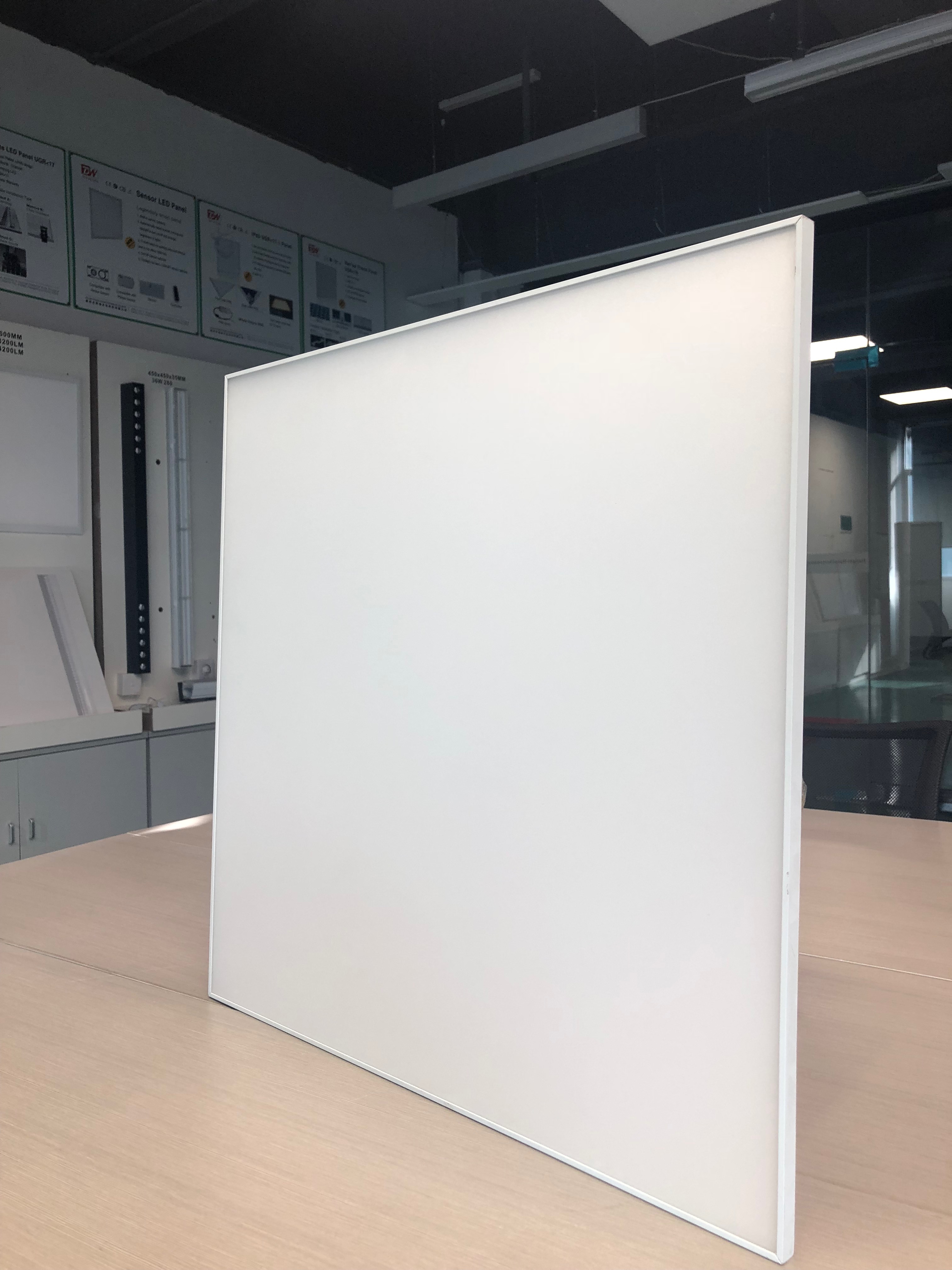

Narrow Frame panel are latest product, with perfect appearance, flat and neatly surface, the light use high lumen led chips and support seamless installation. The luminaires emit efficient, glare-free light and offer innovative features.
◈ FEATURES
bg
1
Only 4mm
width frame
3
UGR<19
available
2

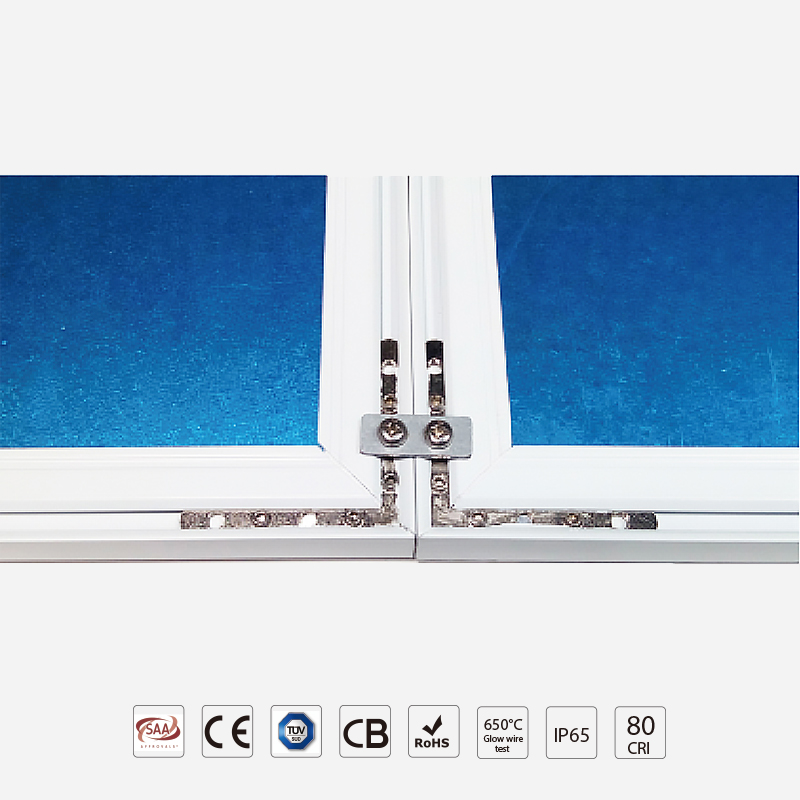

Be able to connect one by one into different shapes
◈ ADVANTAGE
bg

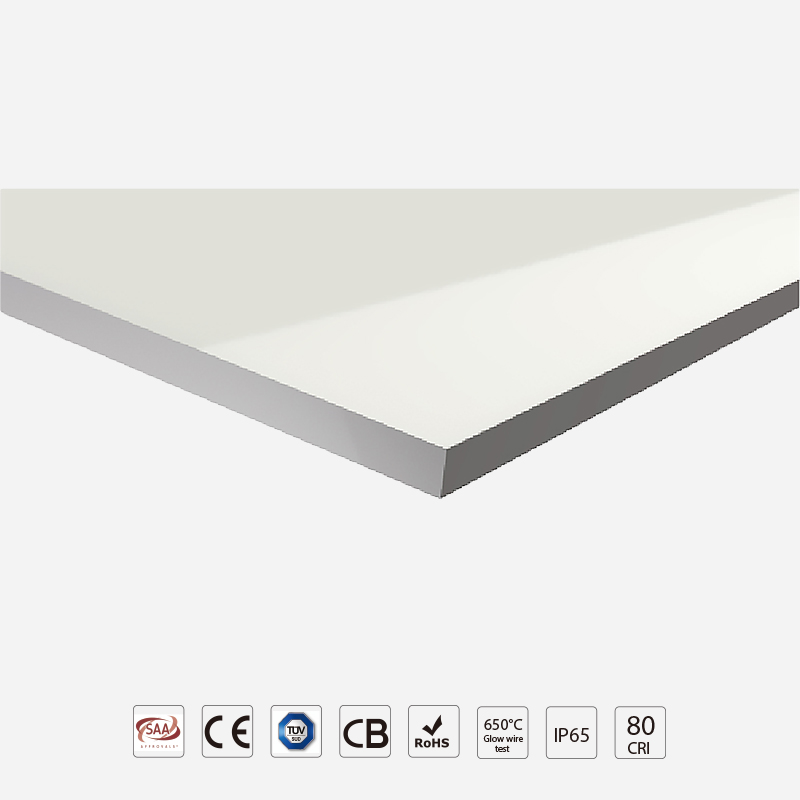

◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ PMMA LGP, anti-yellowing;
◪ Only 4mm width frame，overshadow your competitor's panels by attractive and neat looking;
◪ Imported guide plate from Japan Mitsubishi /Taiwan CHIMEI, more than 80% light transmittance;
◪ Diversified installation way;
◈ SPECIFICATION
bg
UGR<19 Narrow Frame Panel Light | ||
Photometric Parameters | ||
NO. | project | parameter |
1 | LED | SMD4014 |
2 | Luminous Efficiency | 100lm/W |
3 | CCT | 3000K-6500K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
6 | UGR | <19 |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver input voltage | AC220-240V /50～60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
bg
Photometric Data
size
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
Standard | DWN606036 | 36W | 3600lm | RA>80 | SMD4014 | 595x595x14mm |
DWN626236 | 36W | 3600lm | RA>80 | SMD4014 | 620x620x14mm | |
DWN606036 | 36W | 3600lm | RA>80 | SMD4014 | 295x1195x14mm | |
UGR<19 | DWNUGR606036 | 36W | 3600lm | RA>80 | SMD4014 | 595x595x14mm |
DWNUGR626236 | 36W | 3600lm | RA>80 | SMD4014 | 620x620x14mm | |
DWNUGR606036 | 36W | 3600lm | RA>80 | SMD4014 | 295x1195x14mm |
◈ COMPARE
bg

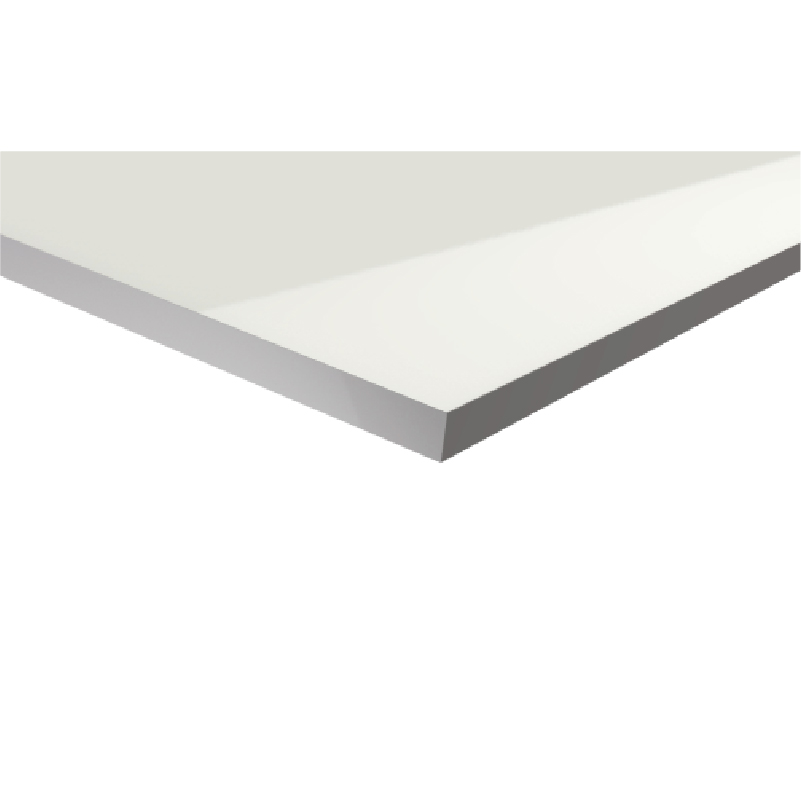

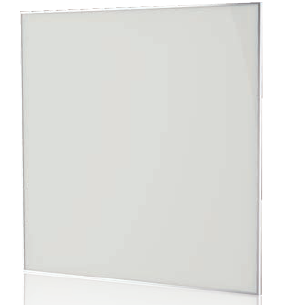

Narrow Frame Panel
4 mm wide frame

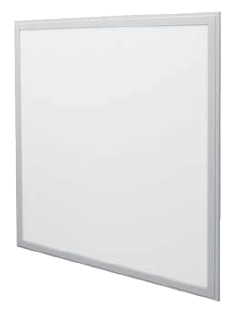

Classic Frame Panel
23.5mm wide frame
◈ FLEXIBLE INSTALLATION TYPE
bg

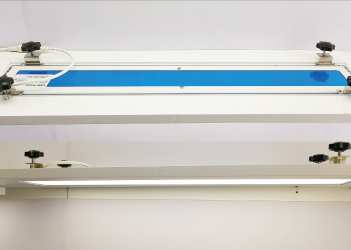

Mehtod A:
Surface Mount
Mehtod B:
Clips recess
Mehtod C:
Flat recess
◈ PACKING
bg

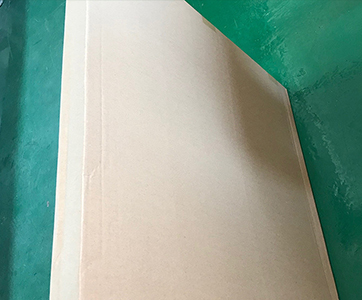

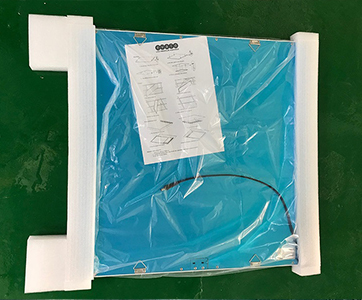

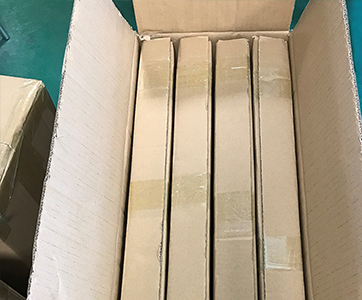

1pc panel+1pc driver/box; 4 boxes/ carton

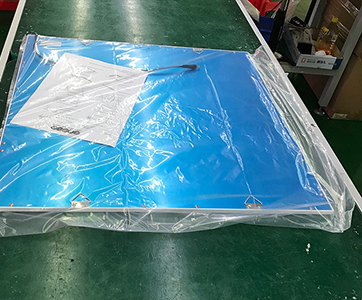

Plastic Bags
Pearl Cotton
Inside Box
Carton
◈ APPLICATION
bg

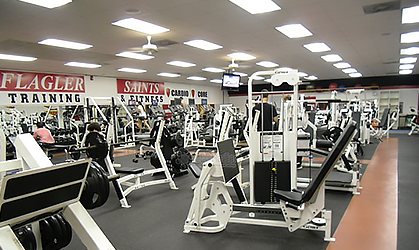

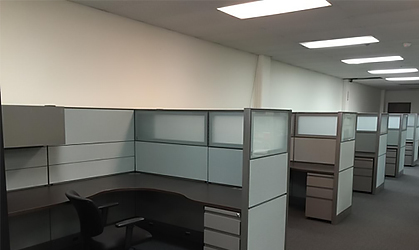

♦ Showrooms ♦ Boardrooms, offices, corridors ♦ Retail outlets ♦ Hospitals ♦ Hotels, motels/hospital
