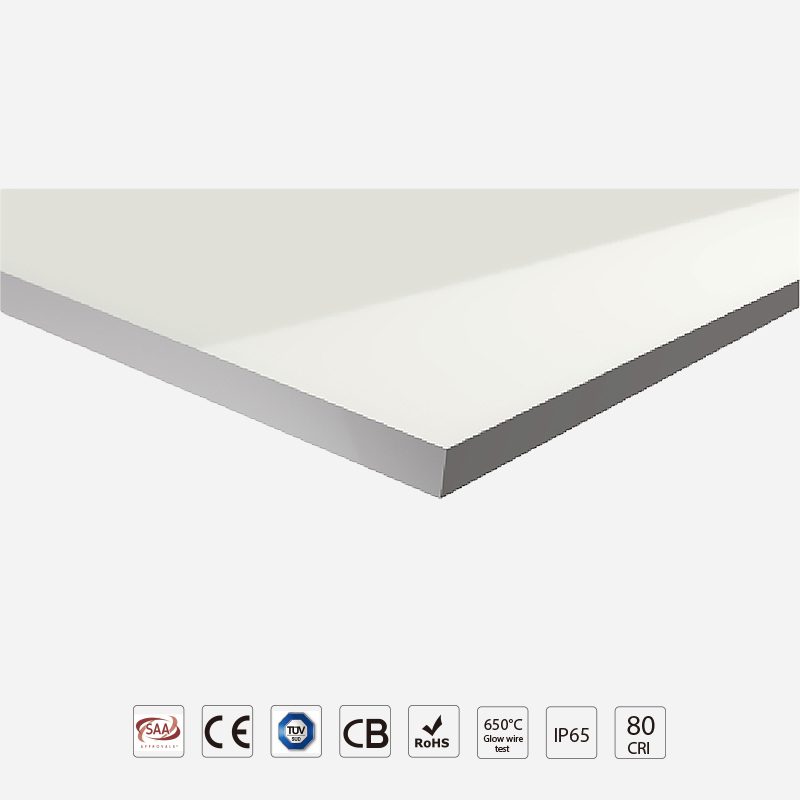

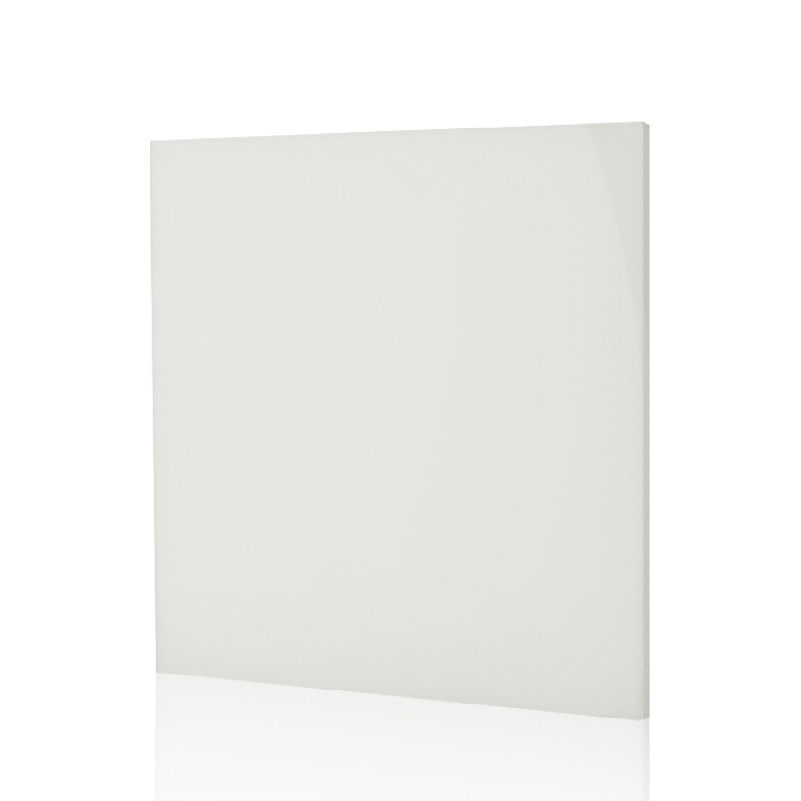

Frameless Panel Light Ideal for Building Panel Ceiling
Click on the image to view the original image
Product: views:8Frameless Panel Light Ideal for Building Panel Ceiling
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:45
  Negotiated
Product Details

Products Details

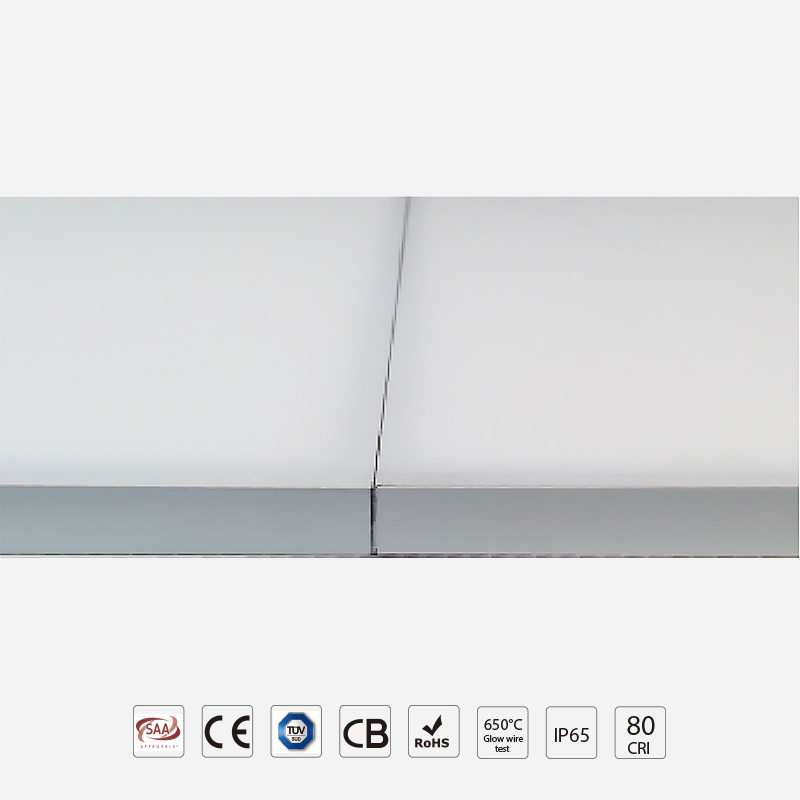

No mental frame, Dolight frameless panel is just like a clear Crystal. Thick PMMA diffuser and good quality PMMA LGP shows, no worry about yellowing. It emits soft and even light which is comfortable for human’s eyes and offer innovative features. No only good for illumination, frameless panel is outstanding in decoration by connecting into different shapes.


◈  FEATURES



◪    Frameless panel;

◪    PMMA LGP;

   Diversified installation way;

   It is ideal products to build the panel ceiling and panel wall.


◈  ADVANTAGE

bg


  • ◪      TUV Listed CE, CB, and RoHS, SAA,ISO9001;

  • ◪      Be able to connect one by one into different shapes;

  •    It is ideal products to build the panel ceiling and panel wall;

  •    Even light distribution, soft & smooth light, no glare.


◈  SPECIFICATION

bg



Frameless Panel Light

Photometric Parameters

NO.

project

parameter

1

LED

SMD4014

2

Luminous Efficiency

>90 Lm/W

3

CCT

3000K-5700K (warm white,  natural white, cool white)

4

CRI

≥80

5

Beam Angle

120°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

Driver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.9

11

Protection Class

Class II

12

Rating IP

IP40

13

Material

Aluminum + PMMA

14

Frame Finishing

White

15

Installation

Recessed/Pendant

16

Working Temperature

-20~+45℃

17

Storing Temperature

-40~+60℃

18

Working Humidity

15%~90%RH

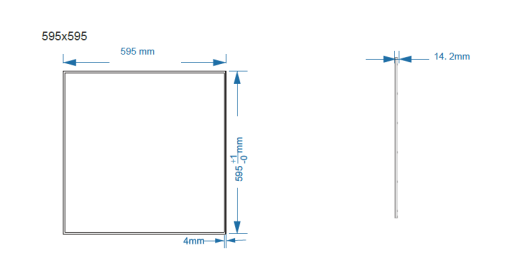

◈  SIZE

bg

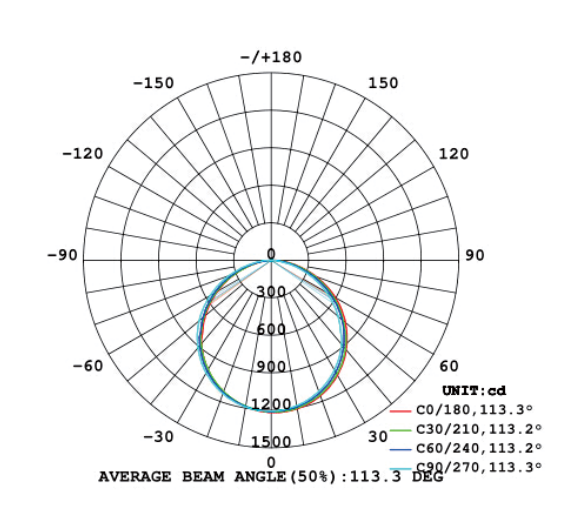

Photometric Data



size


Efficiency

Model No.

Wattage

Luminous flux

CRI

LED

Dimension

95LM/W

DWM303018

18W

1440lm

80Ra

SMD4014

295x295x16.7mm

DWM606036

36W

3450lm

80Ra

SMD4014

595x595x16.7mm

DWM626236

36W

3450lm

80Ra

SMD4014

620x620x16.7mm

DWM3012036

36W

3450lm

80Ra

SMD4014

295x1195x16.7mm



◈  COMPARE

bg

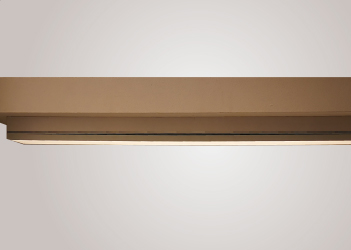

Our Frameless Panel

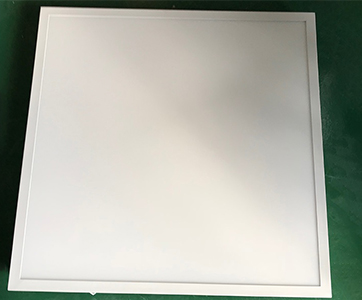

Comment frameless panel

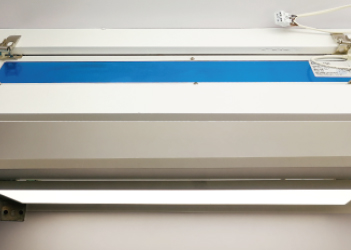

◈  FLEXIBLE INSTALLATION TYPE

bg





Mehtod A:

Surface Mount



Mehtod B:

Clips recess



Mehtod C:

Flat recess

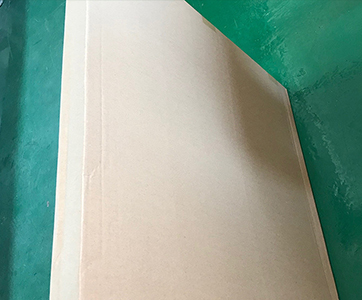

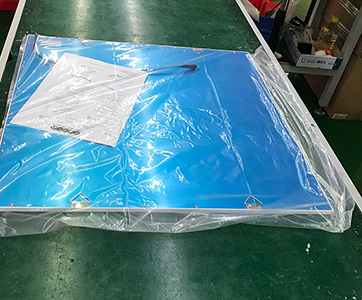

◈  PACKING

bg


1pc panel+1pc driver/box; 4 boxes/ carton


Panel Lights

Plastic Bags

Pearl Cotton


Inside Box

Carton

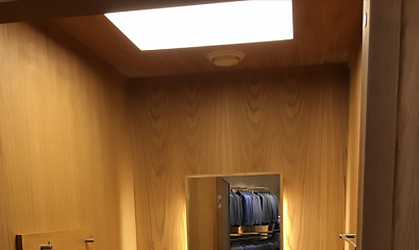

◈  APPLICATION

bg

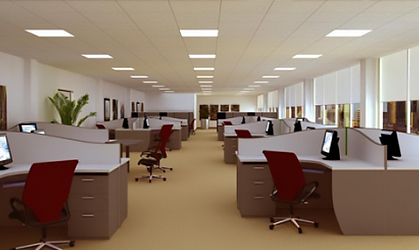

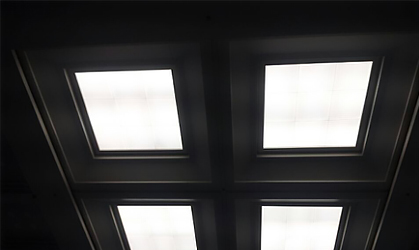

Showrooms   Boardrooms, offices, corridors   Retail outlets   Hospitals   Hotels, motels/hospital
