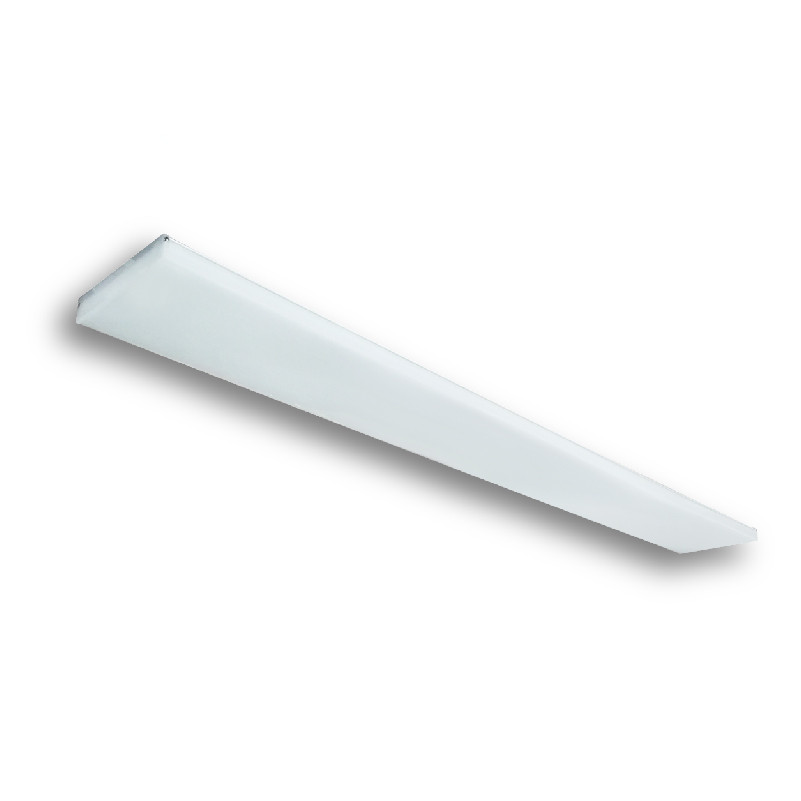

High Efficiency 3D Frameless Linear Panel Light
Click on the image to view the original image
Product: views:7High Efficiency 3D Frameless Linear Panel Light
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:45
  Negotiated
Product Details

Products Details

3D Frameless panel are lastest product, with perfect appearance,flat and neatly surface, the light use high lumen led chips and support sea- mless installation. It supports Various installation: Recessed,suspending,surface mount,DW track installation.And it enjoys multi application: It could used as the panel light,and also could be used to replace the traditional 145mm T-bar,It is also good choice to replace the linear light with more soft light and more elegant figure.

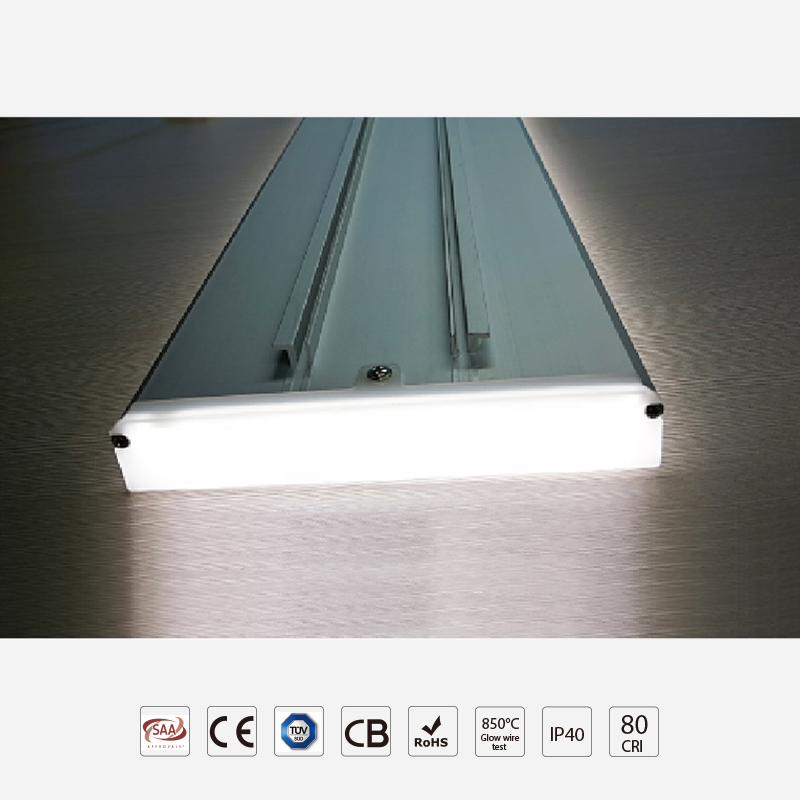

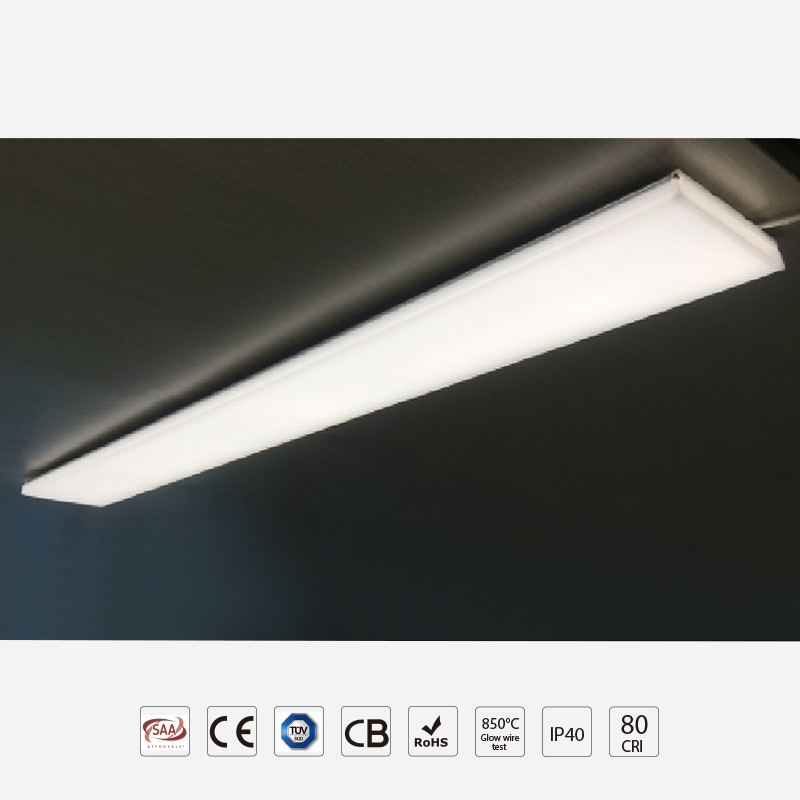

◈  FEATURES

bg
1

Real frameless

panel

3

Soft and smooth

light distribution

2

Pure PMMA LGP



◈  ADVANTAGE

bg


  • ◪      TUV Listed CE, CB, and RoHS, SAA,ISO9001;

  • ◪      Linear Linkable features enable users to expand the space easily and install these panels as long as you want;

  •    High efficient lumen output to be 100lm/w;

  •    Same theory as standard panel is used together with innovation technology to achieve such frameless functions;

  •    Diversified installation way: Suspending, clips recessed, flat recessed, surface mount,Tunner track installation.



◈  SPECIFICATION

bg



3D Frameless Linear Panel Light

 Photometric Parameters

 NO.

 Project

 Parameter

 1

 Size

 145*595*30mm;145*1195*30mm;

 2

 LED

 High luminous flux SMD LED Samsung/Osram

 3

 Luminous Efficiency

 100 Lm/W

 4

 CCT

 3000K-6500K (warm white, natural white, cool white)

 5

 CRI

 ≥80

 6

 Beam Angle

 120°

 7

 LED Lifespan

 ≥50000 Hours

 Electrical Parameters

 8

  Driver Input voltage

 AC220-240V /50-60Hz

 9

 OutputVoltage

 DC30-40V

 10

 Power Supply Efficiency

 ≥88%

 11

 Power Factor

 ≥0.9

 12

 Protection Class

 Class II

 General Parameters

 13

 Rating IP

 IP40

 14

 Material

 Aluminum + PMMA

 15

 Frame Finishing

 White

 16

 Installation

 Recessed/Pendant

 17

 Working Temperature

 -20~+45℃

 18

 Storing Temperature

 -40~+60℃

 19

 Working Humidity

 15%~90%RH

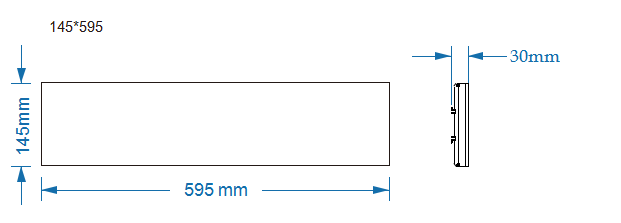

◈  SIZE

bg

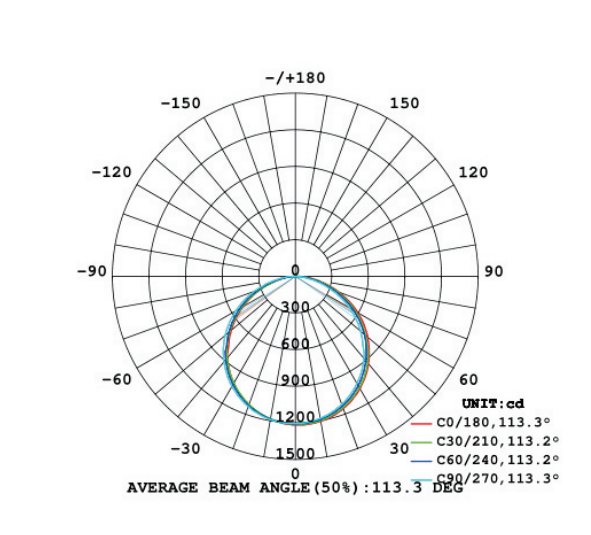

Photometric Data

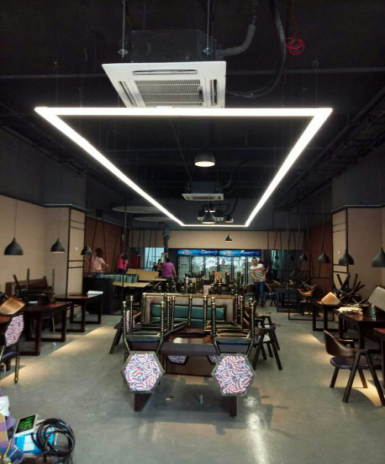

◈  APPLICATION

bg



♦ Commercial Offices

♦ Retail / Shopping Malls

Hotels Conference & Meeting Rooms

♦ Hotel & Supermarkets
