Products Details
◈ FEATURES
Enhanced
performance
Quick and
easy installation
White sturdy aluminium frame
◈ ADVANTAGE
◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Simple design,special used in the office and library;
◪ Soft light output, UGR<19;
◪ Driver built in the ceiling box;
◪ PMMA LGP, anti yellowing.
◈ SPECIFICATION
UGR<19 Pendant Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | Size | 145*1195*14mm; |
2 | LED | High luminous flux SMD LED Samsung/Osram |
3 | Luminous Efficiency | 100 lm/W |
4 | CCT | 3000K-5700K (warm white, natural white, cool white) |
5 | CRI | ≥80 |
6 | Beam Angle | 120° |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ COMPARE

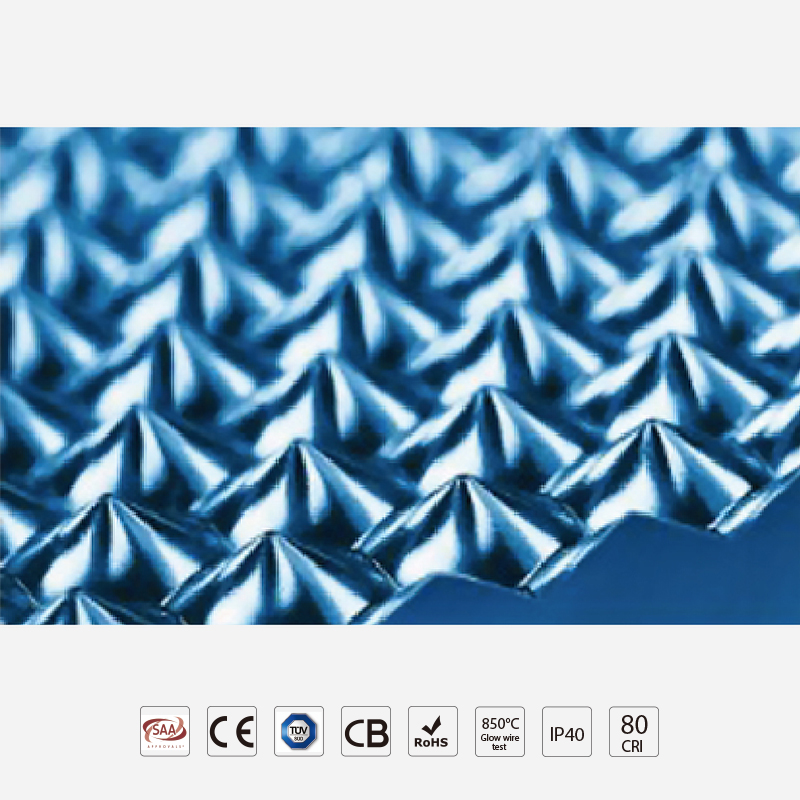

PMMA LGP & PS/MS Differences
Most of the time, all the standard panel like the same, but with very different price. Therefore Dolight explains some key components to you for better understanding on the quality and price.
PS/MS LGP is more cheaper,
but the LGP will going yellowing.
PMMA is more expensive.
This material will be very good to anti yellowing;
◈ FLEXIBLE INSTALLATION TYPE
◈ SIZE

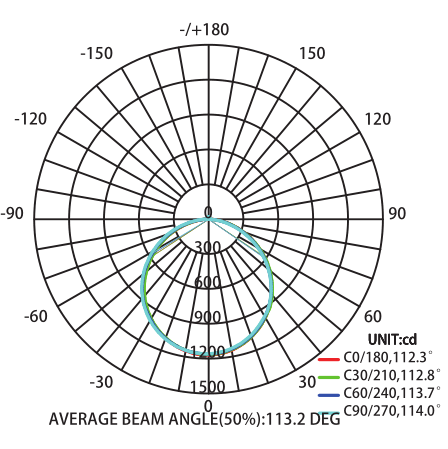

Photometric Data
Size
Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
DWNUGR1412036PT | 36W | 2800lm | 80Ra | SMD4014 | 145x1195x14mm |
DWNUGR2012036PT | 36W | 3240lm | 80Ra | SMD4014 | 195x1195x14mm |

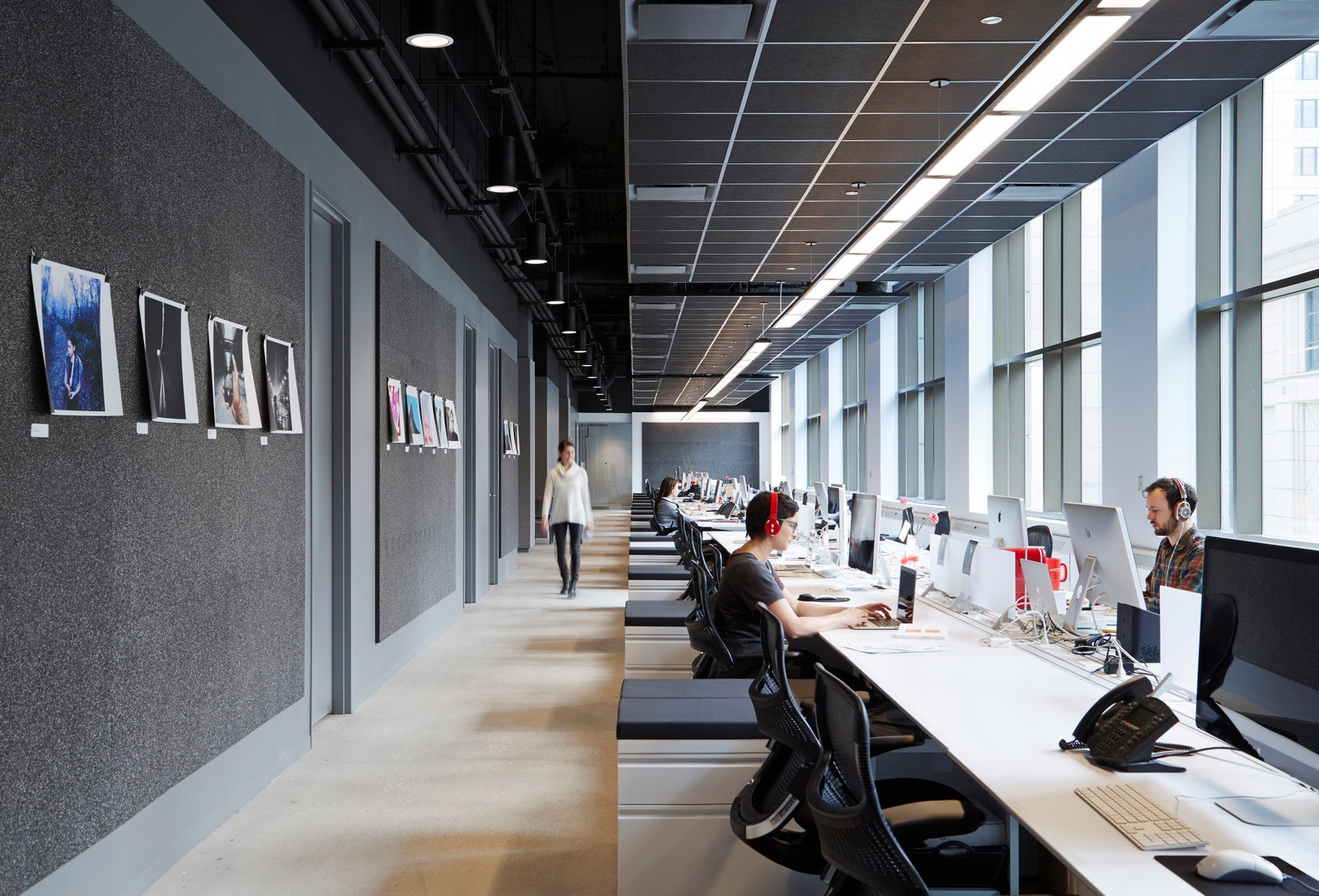

◈ APPLICATION
♦ Showrooms
♦ Boardrooms, offices, corridors
♦ Retail outlets
♦ Hospitals
♦ Hotels, motels
