Panel Lights
Products Details

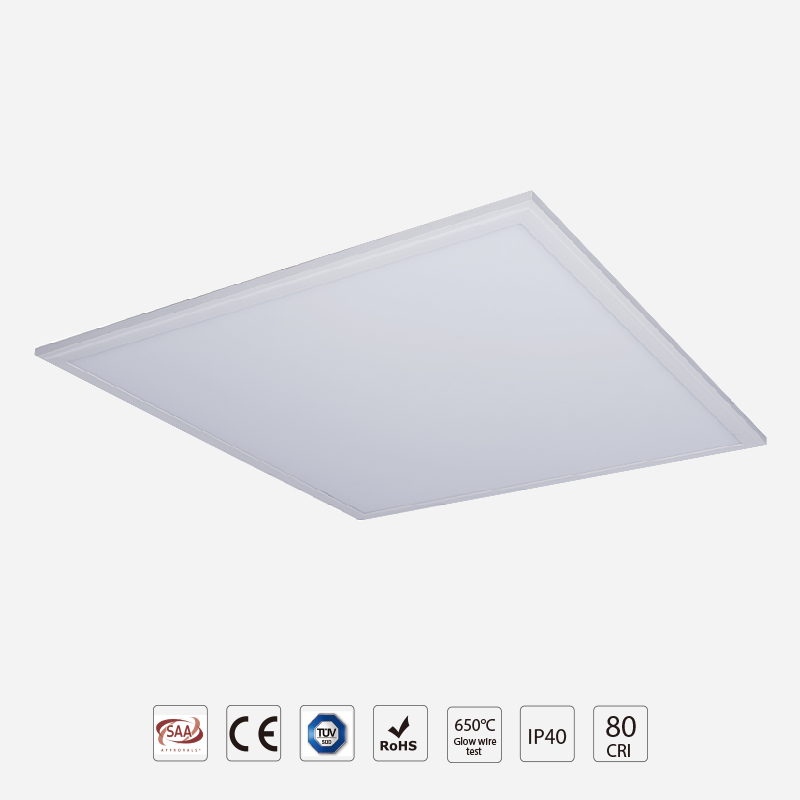

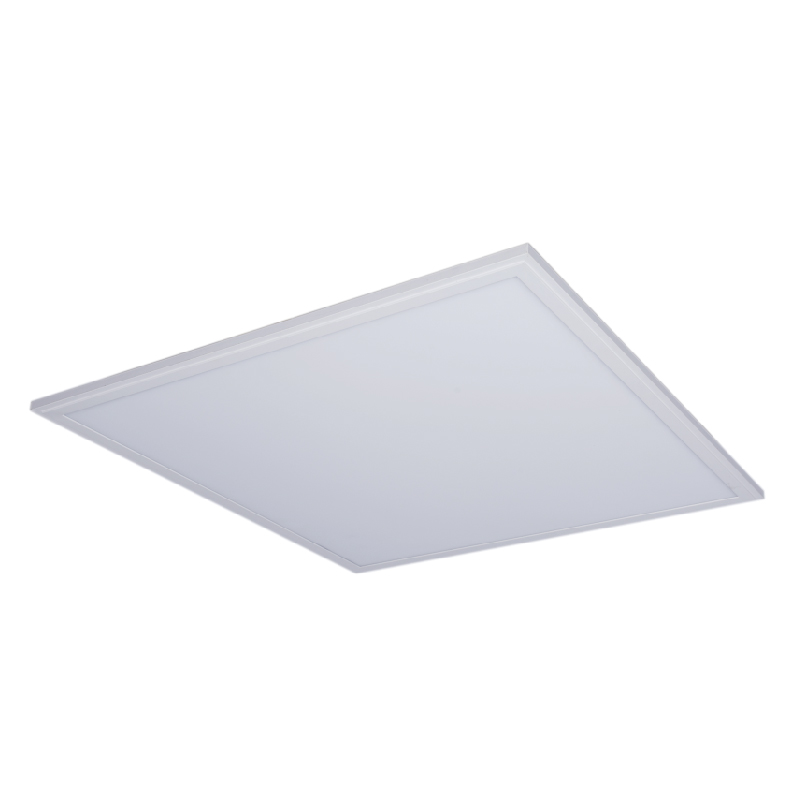

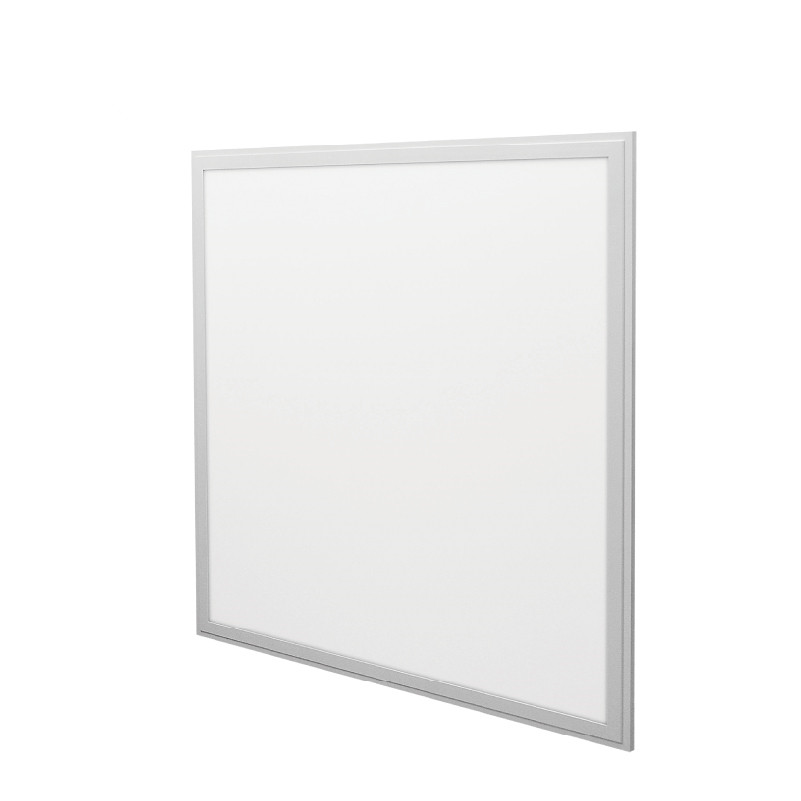

Thanks for choosing 100lm/W Pro Panel Series. Our Slim LED Panel is designed to replace conventional Grid Panel Light with fluorescent tube fifixtures. This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution.
◈ FEATURES
bg
1
100lm/W
3

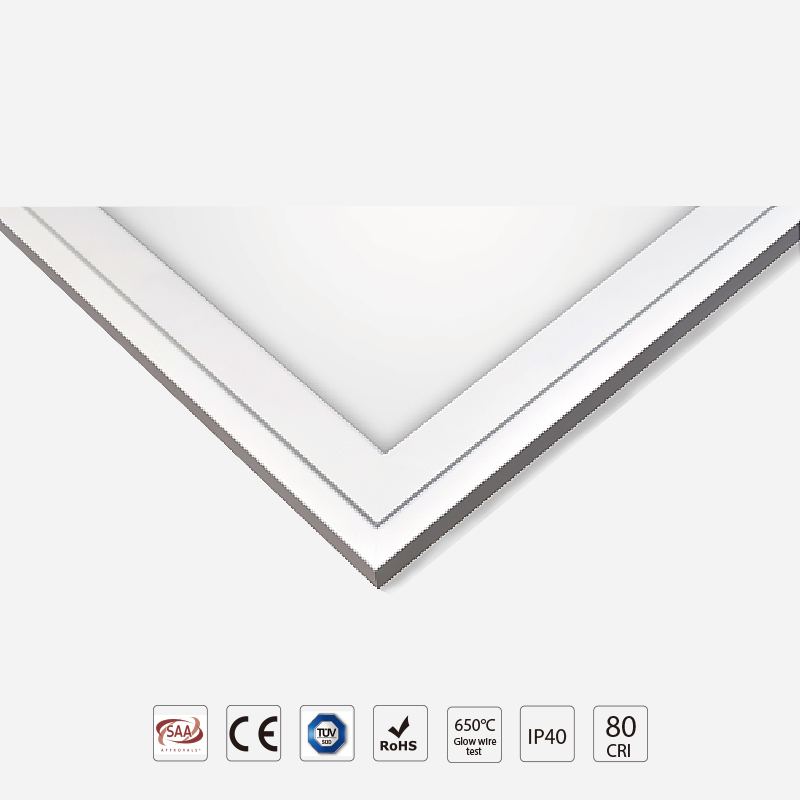

Anti-twisted frame
with seamless corner
2
5 years warranty time
◈ ADVANTAGE
bg
◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Designed for professional market;
◪ PMMA LGP, no worry on yellowing;
◪ Uniform light distribution to offer pure and clean light to end users;
◪ RA90 and one binning
; LED optional.
◈ SPECIFICATION
bg
Pro LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100Lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |

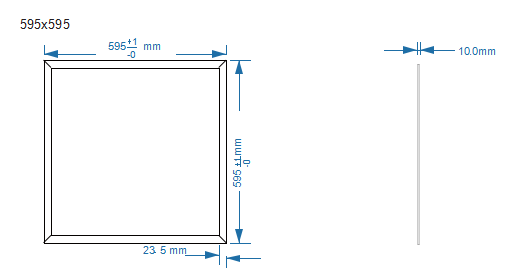

◈ SIZE
bg

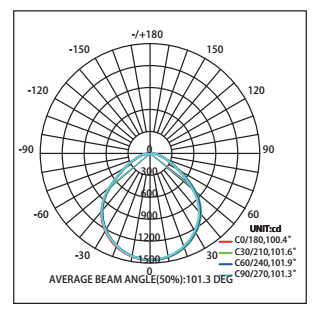

Photometric Data
Size
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
130lm/W | DWP606036H | 36W | 4680lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236H | 36W | 4680lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036H | 36W | 4680lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
120lm/W | DWP606036B | 36W | 4320lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236B | 36W | 4320lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036B | 36W | 4320lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
100lm/W | DWP606036 | 36W | 3600lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236 | 36W | 3600lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036 | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
DWP60603648 | 48W | 4800lm | 80Ra | SMD2835 | 595x595x10.5mm | |
DWP62623648 | 48W | 4800lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012048 | 48W | 4800lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
DWP6012060 | 60W | 6000lm | 80Ra | SMD2835 | 595x1195x12mm |
◈ COMPARE
bg
1F

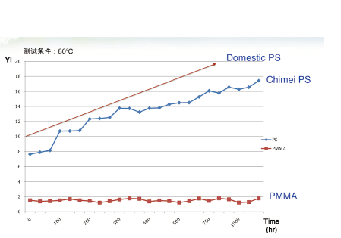

PMMA LGP & PS/MS Differences
Most of the time, all the standard panel like the same, but with very different price. Therefore Dolight explains some key components to you for better understanding on the quality and price.
2F
PMMA will anti yellowing; if LGP is PS the MS, the LGP Will go yellowing after used in 6mouth step by step.
PS/MS LGP
PS/MS LGP is more cheaper,
but the LGP will going yellowing.
PMMA LGP
PMMA is more expensive.
This material will be very good to anti yellowing;
◈ INSTALLATION
bg

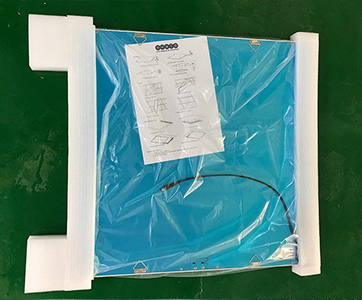

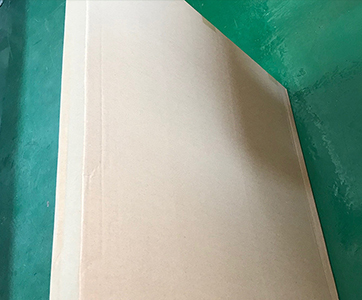

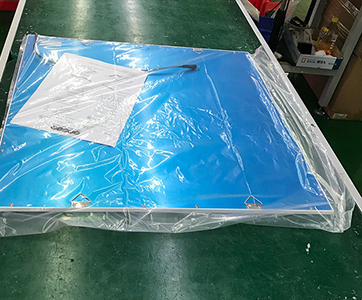

◈ PACKING
bg
1pc panel+1pc driver/box; 4 boxes/ carton
Plastic Bags
Pearl Cotton
Inside Box
Carton

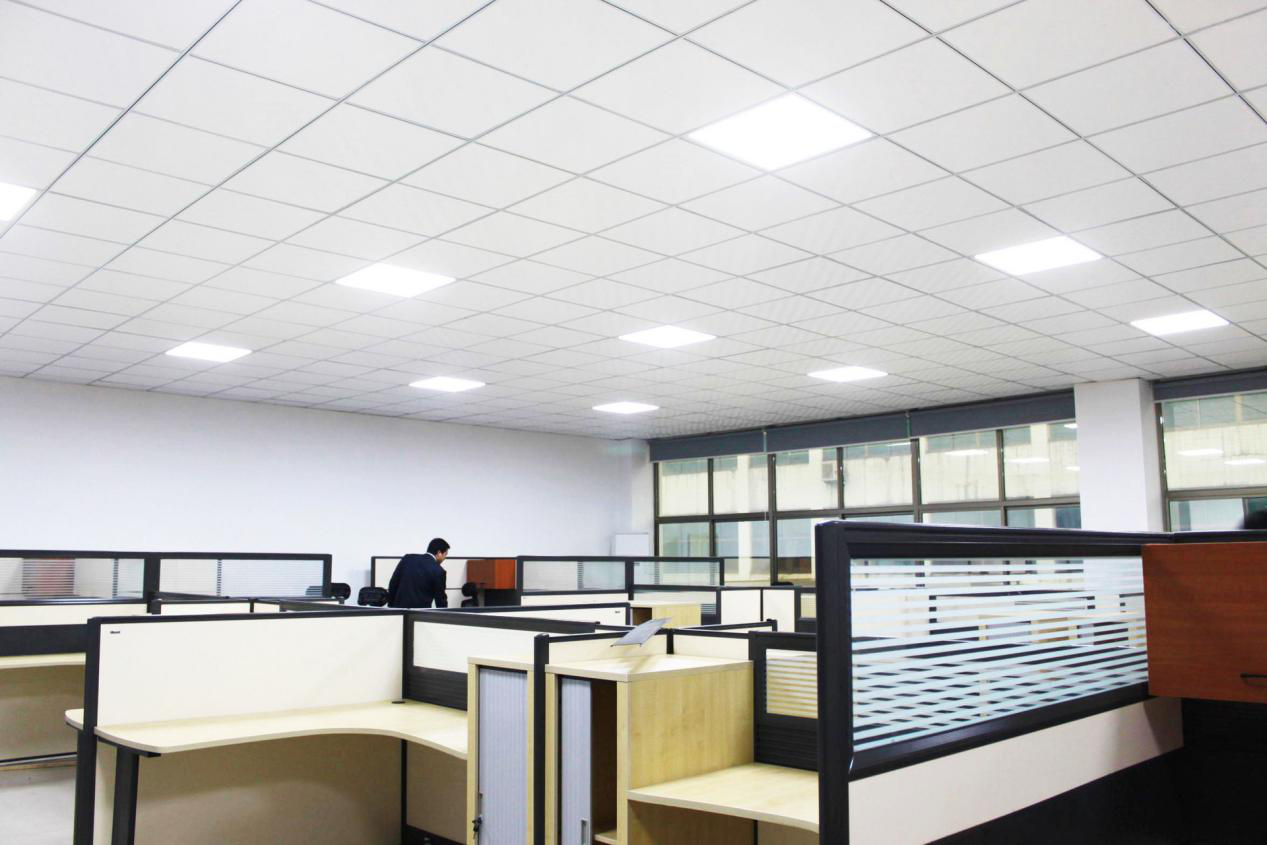

◈ APPLICATION
bg
♦ Commercial office
♦ Retail/Shopping Mail Hotels
♦ Conference&Meeting Rooms
♦ Hotels&Supermarkeets
