Panel Lights
Products Details
Thanks

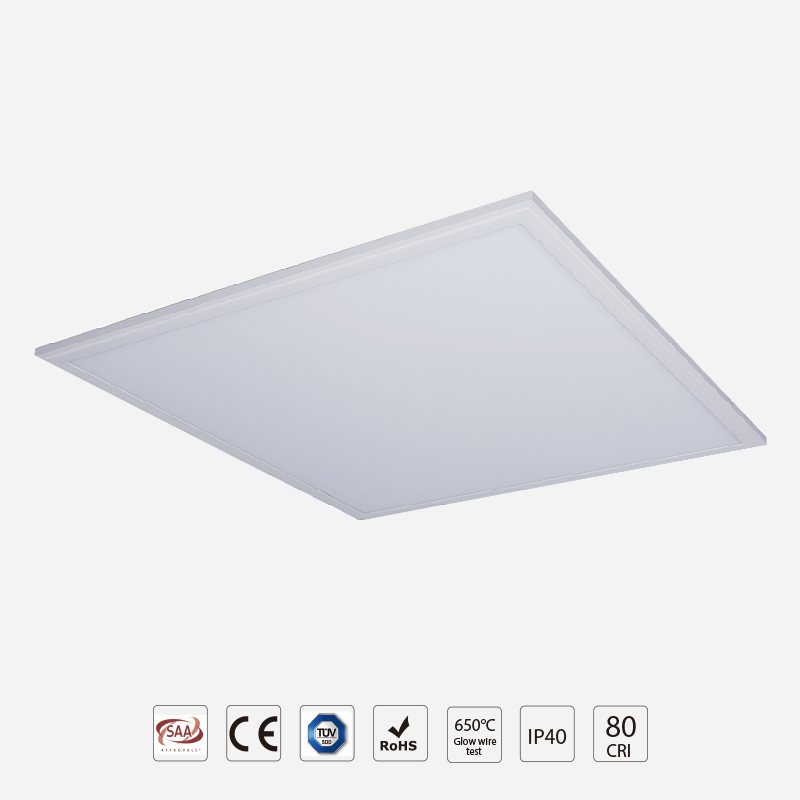

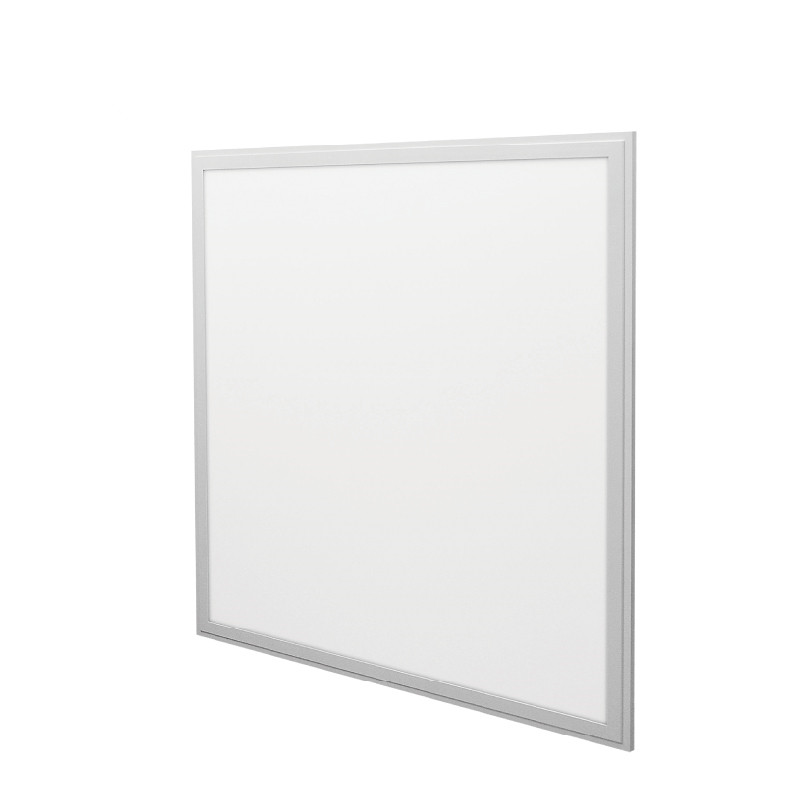

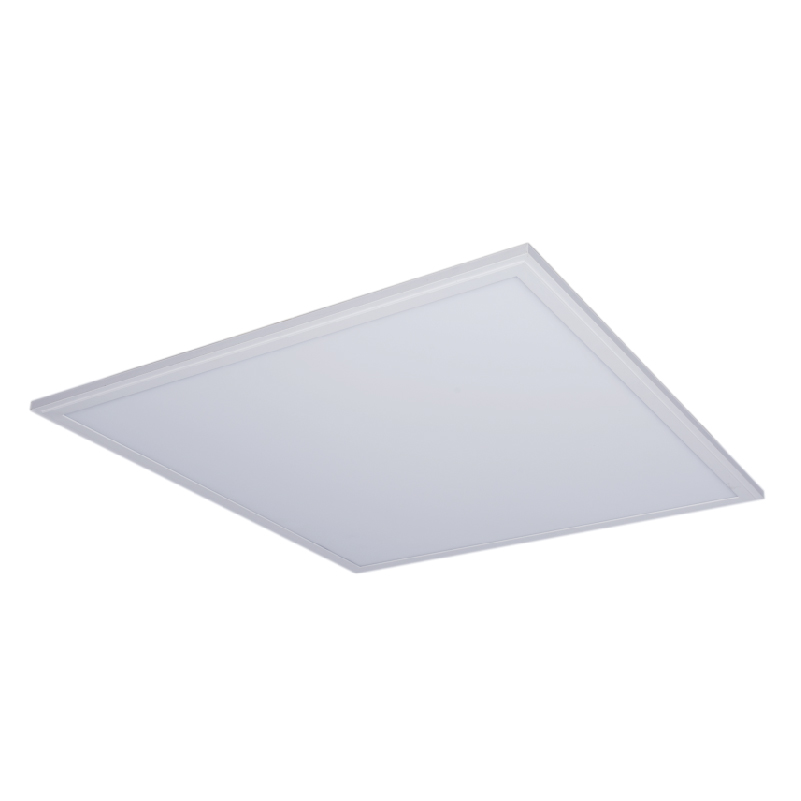

for choosing 100lm/W Pro Panel Series. Our Slim LED Panel is designed
to replace conventional Grid Panel Light with fluorescent tube fifixtures.
This light combines innovative optical and mechanical design features
to achieve a soft and uniform light distribution.
◈ FEATURES
bg
1
100lm/W
3

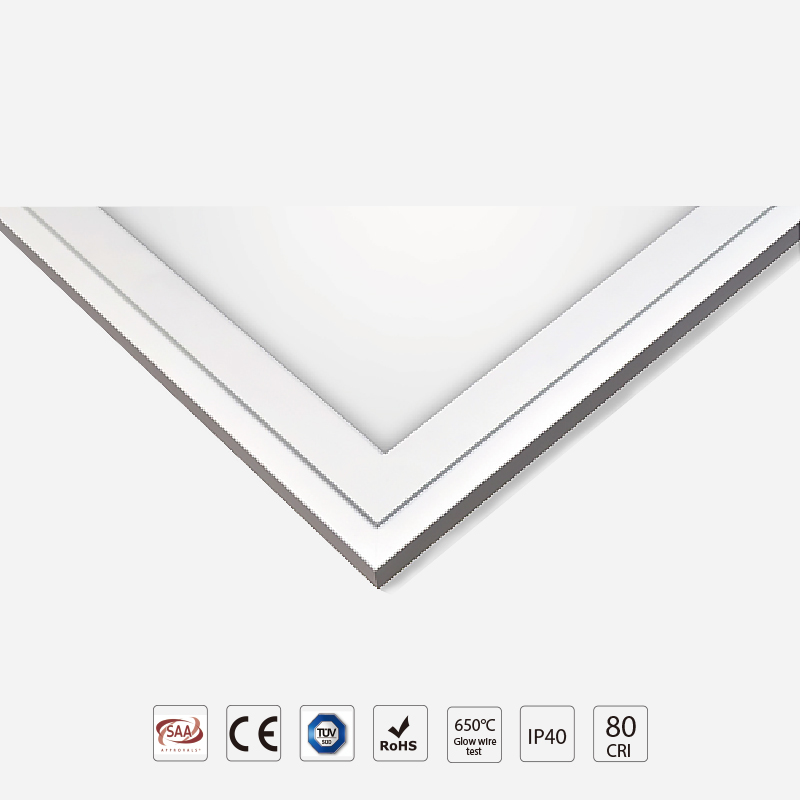

Anti-twisted frame
with seamless corner
2
5 years warranty time
◈ ADVANTAGE
bg
◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Designed for professional market;
◪ PMMA LGP, no worry on yellowing;
◪ Uniform light distribution to offer pure and clean light to end users;
◪ RA90 and one binning
; LED optional.
◈ SPECIFICATION
bg
Pro LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100Lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
bg
Photometric Data
Size
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
130lm/W | DWP606036H | 36W | 4680lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236H | 36W | 4680lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036H | 36W | 4680lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
120lm/W | DWP606036B | 36W | 4320lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236B | 36W | 4320lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036B | 36W | 4320lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
100lm/W | DWP606036 | 36W | 3600lm | 80Ra | SMD2835 | 595x595x10.5mm |
DWP626236 | 36W | 3600lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012036 | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
DWP60603648 | 48W | 4800lm | 80Ra | SMD2835 | 595x595x10.5mm | |
DWP62623648 | 48W | 4800lm | 80Ra | SMD2835 | 620x620x10.5mm | |
DWP3012048 | 48W | 4800lm | 80Ra | SMD2835 | 295x1195x10.5mm | |
DWP6012060 | 60W | 6000lm | 80Ra | SMD2835 | 595x1195x12mm |
◈ COMPARE
bg
1F
Flicker free driver and Flicking driver
Non flickering
Non flickering driver used;
The light is more comfortable.
Flickering
Flickering driver used;
It will cause the headache
Or eye tiredness
2F
Installation
◈ PACKING
bg
1pc panel+1pc driver/box; 4 boxes/ carton
Plastic Bags
Pearl Cotton
Inside Box
Carton
◈ APPLICATION
bg
♦ Commercial office
♦ Retail/Shopping Mail Hotels
♦ Conference&Meeting Rooms
♦ Hotels&Supermarkeets
