Panel Lights
Products Details

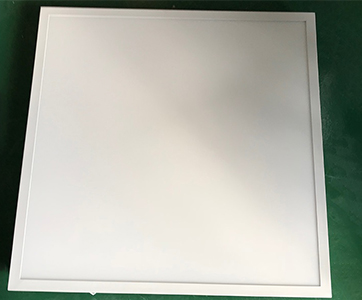

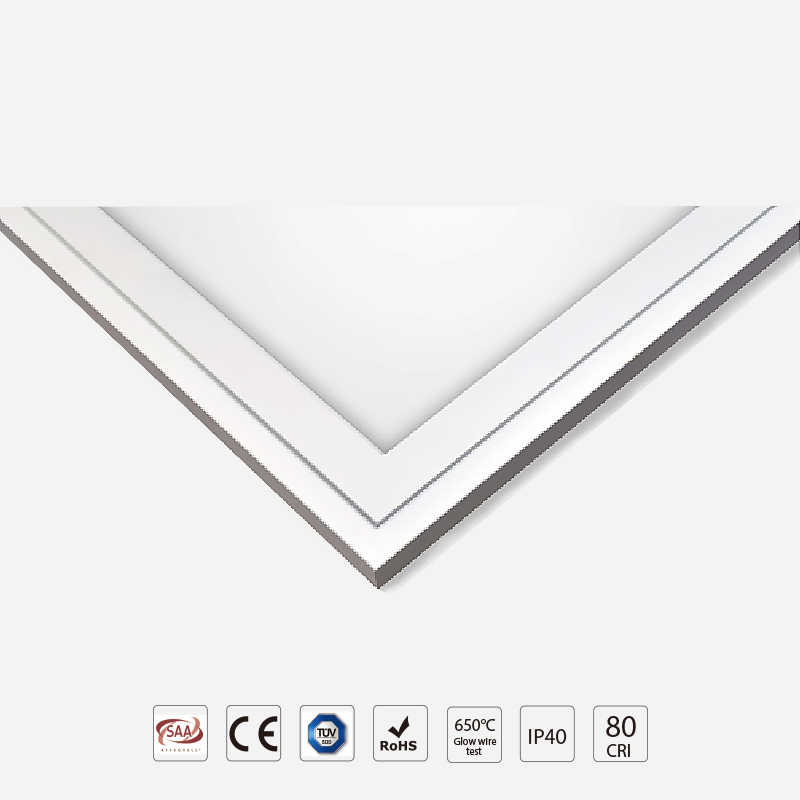

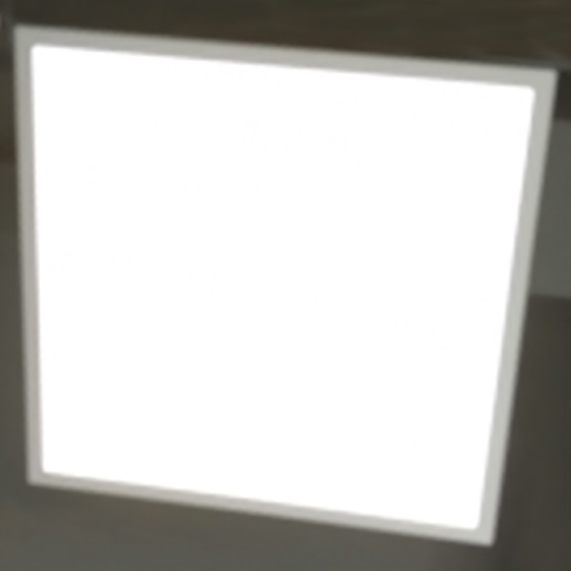

Thanks for choosing UGR<19 M Series Panel Series light provide a soft, bright luminance that is gentle on the eyes and ideal for both domestic and commercial environments. Thanks to the use of an edge-lighting design, the output is uniform across the panel without any dark or weak spots, and the super-low profile provides a nice clean ceiling line.

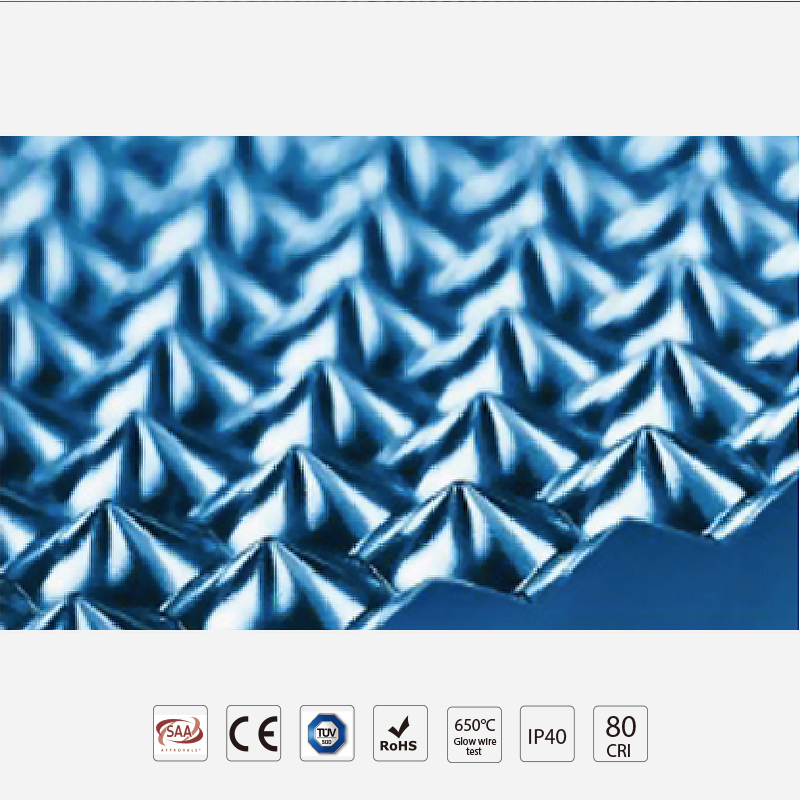

◈ FEATURES
bg
1
PS LGP
3
100lm/W
2
UGR<19
◈ ADVANTAGE
bg
◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Best price and quality balance panels；
◪ 3.Anti-twisted frame with seamless corner;
◪ Uniform light distribution;
◪ 3 years warranty time
◈ SPECIFICATION
bg
M Series LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 Lm/W |
3 | CCT | 3000K-6500K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
bg

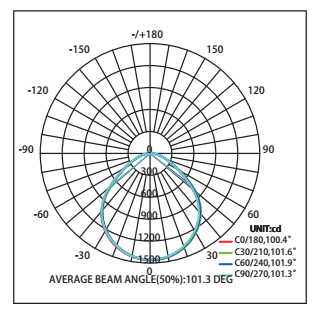

Photometric Data

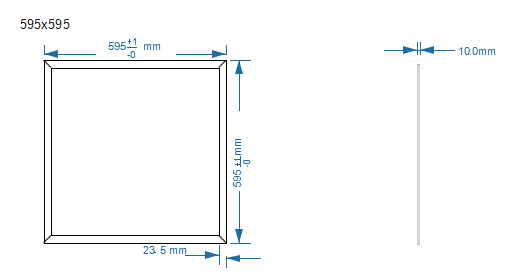

Size
Efficiency | Model No. | Wattage | Luminous Flux | CRI | LED | Dimension |
100lm/W | DWUGR606036M | 36W | 3600lm | 80Ra | SMD4014 | 595x595x10.5mm |
DWUGR3012036M | 36W | 3600lm | 80Ra | SMD4014 | 295x1195x10.5mm | |
DWUGR626236M | 36W | 3600lm | 80Ra | SMD4014 | 620x620x10.5mm |
◈ COMPARE
bg
1F
Flicker free driver and Flicking driver
Non flickering
Non flickering driver used;
The light is more comfortable.

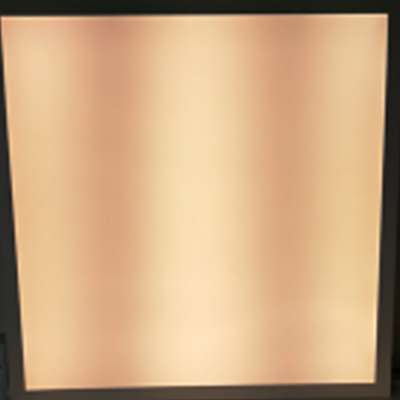

Flickering
Flickering driver used;
It will cause the headache
Or eye tiredness
2F

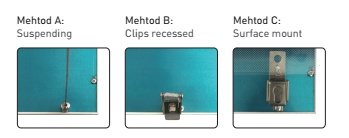

Installation

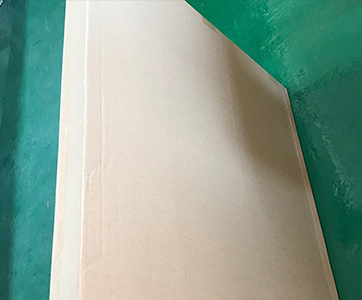

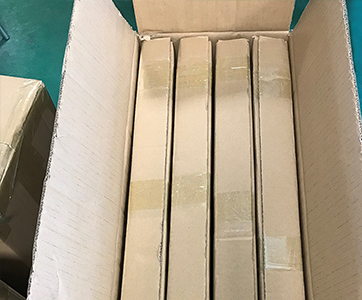

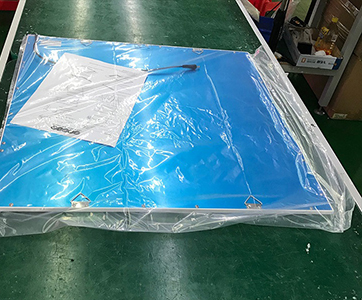

◈ PACKING
bg
1pc panel+1pc driver/box; 4 boxes/ carton
Plastic Bags
Pearl Cotton
Inside Box
Carton

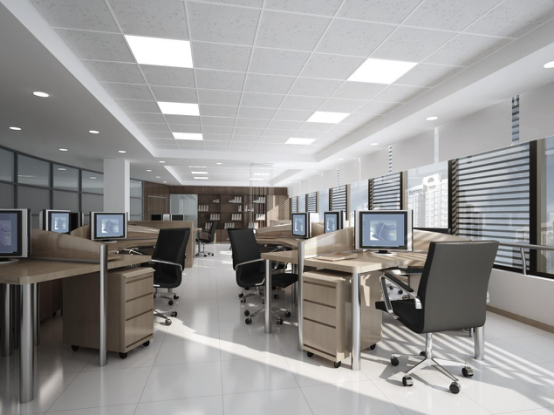

◈ APPLICATION
bg
♦ Commercial office
♦ Retail/Shopping Mail Hotels
♦ Conference&Meeting Rooms
♦ Hotels&Supermarkeets
