Panel Lights
Products Details
The Surface Mount LED Mini Panel adopt side emitting technology with uniformity
illumination & no glare. Aluminum housing for superior heat dissipation and for a strong support.
◈ FEATURES
bg
1
Surface mount
installation
3
UGR<19 optional
2
High efficiency:100lm/W or 120lm/W
◈ ADVANTAGE
bg
◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Surface mounted directly offers easy installation and saves cost from Panel+surface mount kits;

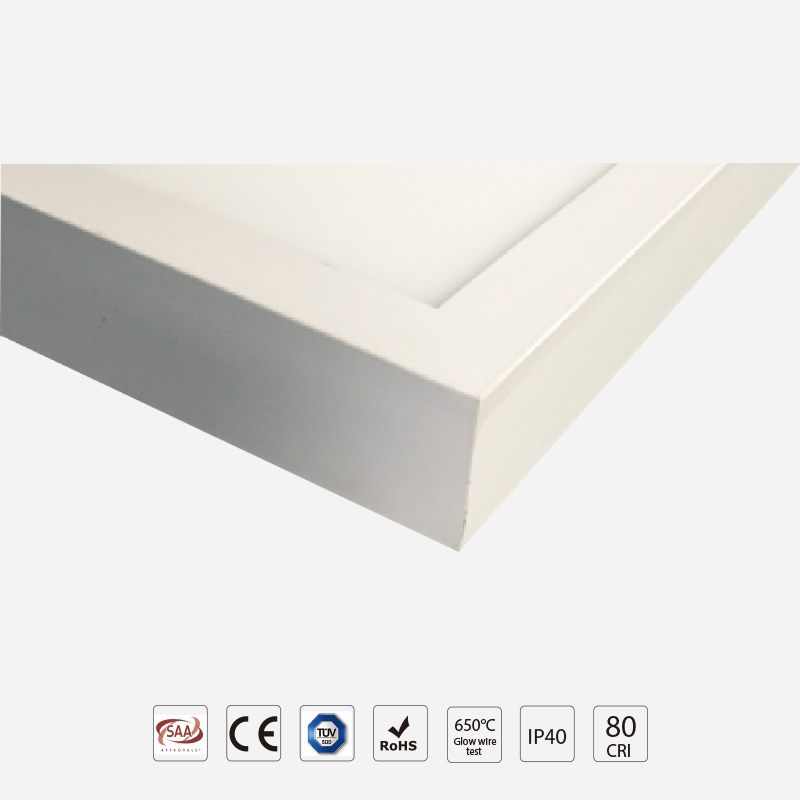

◪ Anti-twisted frame with seamless corner;
◪ No white or black dots,no yellow lines or bright lines on the edge
◈ SPECIFICATION
bg
Surface Mount LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
bg
Photometric Data
Size
Efficiency | Model No. | Wattage | Luminous Flux | CRI | LED | Dimension |
120lm/W | DWP606036BCS | 36W | 4320lm | 80Ra | SMD2835 | 595x595x40mm |
DWP626236BCS | 36W | 4320lm | 80Ra | SMD2835 | 620x620x40mm | |
DWP3012036BCS | 36W | 4320lm | 80Ra | SMD2835 | 295x1195x40mm | |
100lm/W | DWP303018CS | 18W | 1620lm | 80Ra | SMD2835 | 295x295x40mm |
DWP306036CS | 36W | 3600lm | 80Ra | SMD2835 | 295x595x40mm | |
DWP606036CS | 36W | 3600lm | 80Ra | SMD2835 | 595x595x40mm | |
DWP626236CS | 36W | 3600lm | 80Ra | SMD2835 | 620x620x40mm | |
DWP3012036CS | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x40mm |
◈ COMPARE
bg
1F
Flicker free driver and Flicking driver
Surface mount panel
Specilized in surface mount
Panel lights and frames are integrated
Simple installation
Better appearance
panel+surface mount frame
panel is separated with the frame
more steps for installation
2F

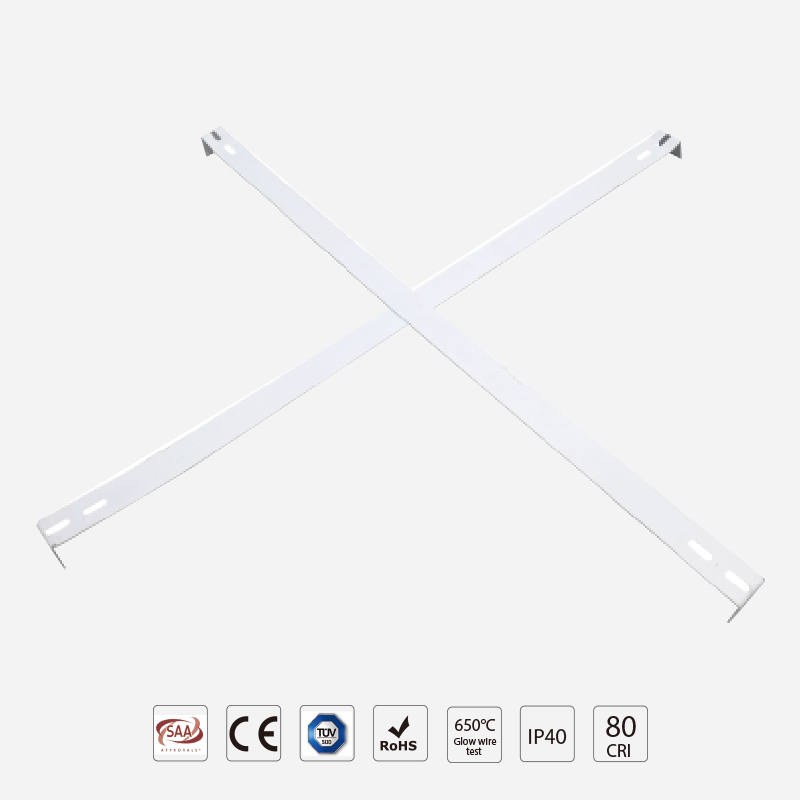

Installation
◈ PACKING
bg
1pc panel+1pc driver/box; 4 boxes/ carton
Plastic Bags
Pearl Cotton
Inside Box
Carton
◈ APPLICATION
bg
♦ Showrooms ♦ Boardrooms, offices, corridors ♦ Retail outlets ♦ Hospitals ♦ Hotels,motels
