Products Details

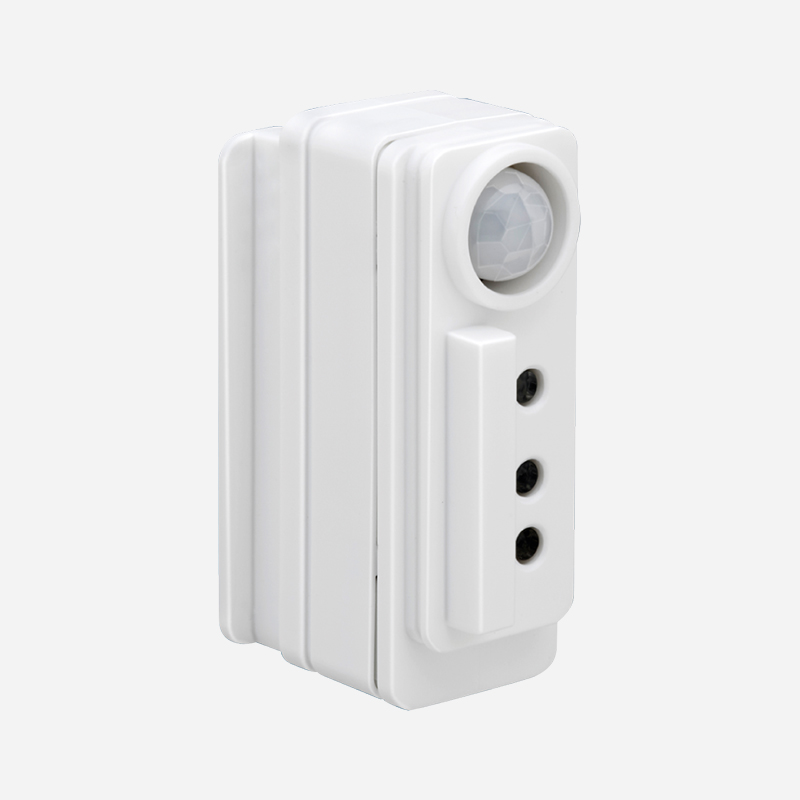

Dolight On/Off Sensor LED panel light, it’s designed to replace conventional Grid Panel Light with fluorescent tube fixtures. Our slim led panel has a dedicated driver and elegant appearance to make a space refined and smart, perfectly adapted to fashion or design needs.
◈ FEATURES
◪ On/ Off Sensor
◪ Built- in sensor system
◪ Daylight harvesting function Optional
◈ ADVANTAGE
◪ TUV Listed CE, CB, and RoHS, SAA,ISO9001;
◪ Domestic sensor,
and
sensor optional◪ Super slim size with only 9mm thickness
◪ More accurate light distribution control
◈ SPECIFICATION
Sensor LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 Lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 12° |
6 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
7 | Driver Input Voltage | AC220-240V /50-60Hz |
8 | OutputVoltage | DC30-40V |
9 | Power Supply Efficiency | ≥88% |
10 | Power Factor | ≥0.9 |
11 | Protection Class | Class II |
General Parameters | ||
12 | Rating IP | IP40 |
13 | Material | Aluminum + PMMA |
14 | Frame Finishing | White |
15 | Installation | Recessed/Pendant |
16 | Working Temperature | -20～+45℃ |
17 | Storing Temperature | -40～+60℃ |
18 | Working Humidity | 15%~90%RH |
◈ SIZE
Photometric Data
size
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
ON/OFF sensor | DWS606036 | 36W | 3600lm | 80Ra | SMD2835 | 595x595x9mm |
DWS626236 | 36W | 3600lm | 80Ra | SMD2835 | 620x620x9mm | |
DWS3012036 | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x9mm | |
ON/OFF daylight harvest sensor | DWS606036D | 36W | 3600lm | 80Ra | SMD2835 | 595x595x9mm |
DWS626236D | 36W | 3600lm | 80Ra | SMD2835 | 620x620x9mm | |
DWS3012036D | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x9mm |
◈ DETAILS

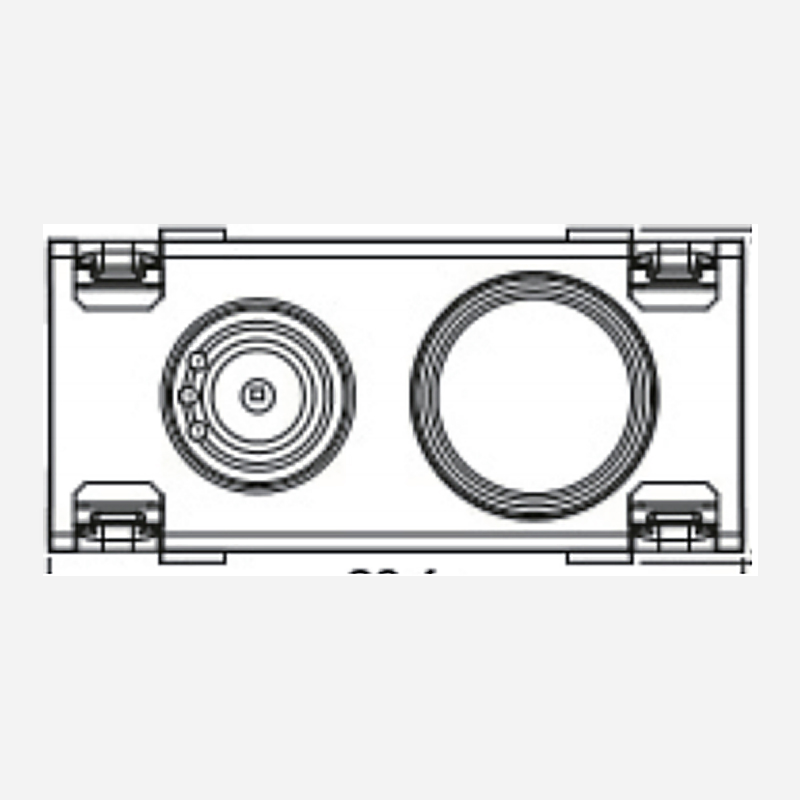

Dimensions（mm)
Connection
Mounting
◈ APPLICATION
♦ Showrooms
♦ Boardrooms, offices, corridors
♦ Retail outlets
♦ Hospitals
♦ Hotels, motels
