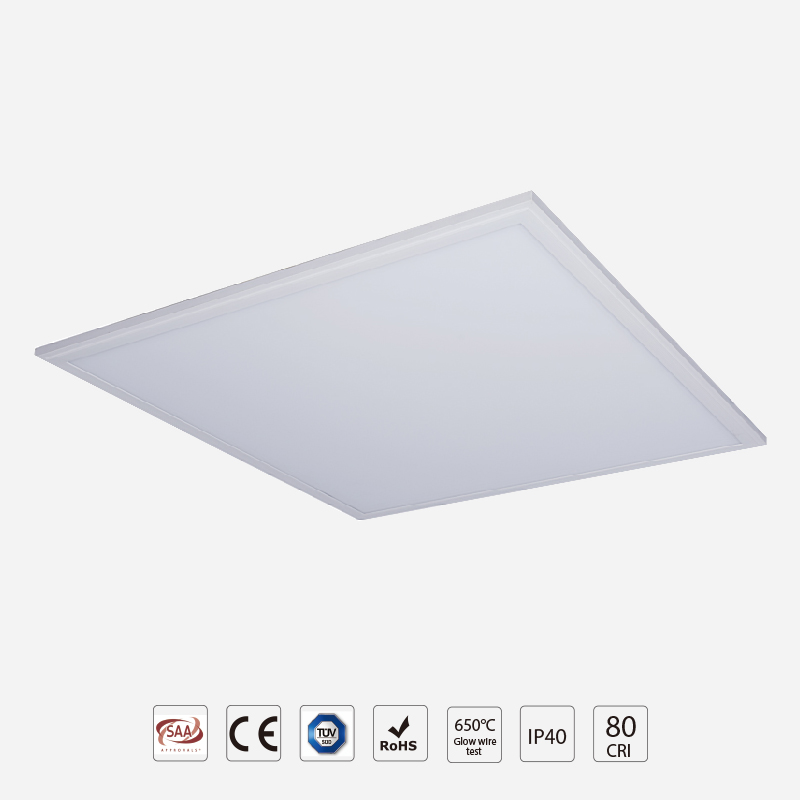

| Pro LED Panel Light | ||
| Photometric Parameters | ||
| NO. | Project | Parameter |
| 1 | LED | High luminous flux SMD LEDSamsung/Osram |
| 2 | Luminous Efficiency | 130lm/W |
| 3 | CCT | 3000K-5700K(warmwhite, natural white, cool white) |
| 4 | CRI | ≥80 |
| 5 | BeamAngle | 120° |
| 7 | LED Lifespan | ≥50000 Hours |
| Electrical Parameters | ||
| 8 | driver input voltage | AC220-240V /50-60Hz |
| 9 | OutputVoltage | DC30-40V |
| 10 | Power Supply Efficiency | ≥88% |
| 11 | Power Factor | ≥0.9 |
| 12 | Protection Class | Class II |
| General Parameters | ||
| 13 | Rating IP | IP40 |
| 14 | Material | Aluminum + PMMA |
| 15 | Frame Finishing | White |
| 16 | Installation | Recessed/Pendant |
| 17 | WorkingTemperature | -20～+45℃ |
| 18 | StoringTemperature | -40～+60℃ |
| 19 | Working Humidity | 15%~90%RH |
Pro Panel Light Quality Oriented 130lm/W
