Home > Products > Lens LED Linear Light LL50 Lower Glare UGR<14

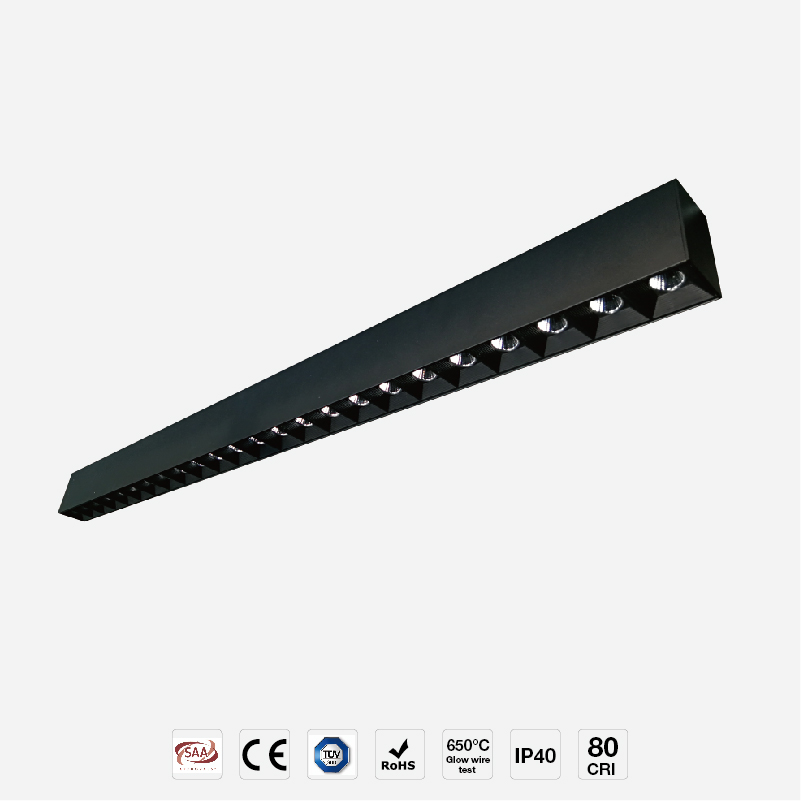

Lens LED Linear Light LL50 Lower Glare UGR<14
Click on the image to view the original image
Product: views:15Lens LED Linear Light LL50 Lower Glare UGR<14
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:45
  Negotiated
Product Details


Products Details

Thanks for choosing DW Lens LED Linear Light. Revolutionary LENS design to offer specific lighting output. Strong Aluminium profile housing and screw free diecasting end cap provide simple installation but stable performance. Elegant diffuser emits uniform and soft light. It’s free to combine different sizes together to display in a modern way.

◈  FEATURES

bg


  • ◪   Revolutionary LENS design to offer specific lighting output;

  • ◪   Lower glare UGR<14

  • ◪    Simply extrusion design with screw free diecasting end cap

  • ◪    Integrated driver

  • ◪   RA 90 optional

  • ◪   CCT tunable option

  • ◪   It could be used in the sho[, store and all other commercial place


◈  PERFORMANCE

bg






◈ TECHNICAL DATA  SHEET

bg


LL50

Photometric Parameters

NO.

Item

Parameter

1

LED

High luminous flux SMD LED

2

Luminous Efficiency

>80LM/W

3

CCT

3000K,4000K 5700K

(warm white, natural white, cool white)

4

CRI

≥80

5

BeamAngle

90°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

dirver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.95

11

Protection Class

Class II

General Parameters

12

Rating IP

IP 40

13

Material

Aluminum + PC

14

Frame Finishing

Aluminium silver color

15

Installation

Suspended, Surface mount, Recessed

16

WorkingTemperature

-20~+45℃

17

StoringTemperature

-40~+60℃

18

Working Humidity

15%~90%RH

19

Certificate

CE RoHS


◈  DIMENSION

bg


Model  No.

Efficiency

power

CCT

Lumen

Size

DWLL436

100lm/W

36W


3000K

4000K

5700K


3600lm

1140*50*80mm

DWLL548

100lm/W

48W


3000K

4000K

5700K


4800lm

1140*50*80mm

DWLL430B

100lm/W

30W


3000K

4000K

5700K


3000lm

1140*50*80mm

DWLR548B

100lm/W

36W


3000K

4000K

5700K


3600lm

1450*50*80mm



◈  INSTALLATION   INSTRUCTION

bg




◈  APPLICATION

bg


♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school
