Home > Products > Wall Wash LED Linear Light LA50 48W

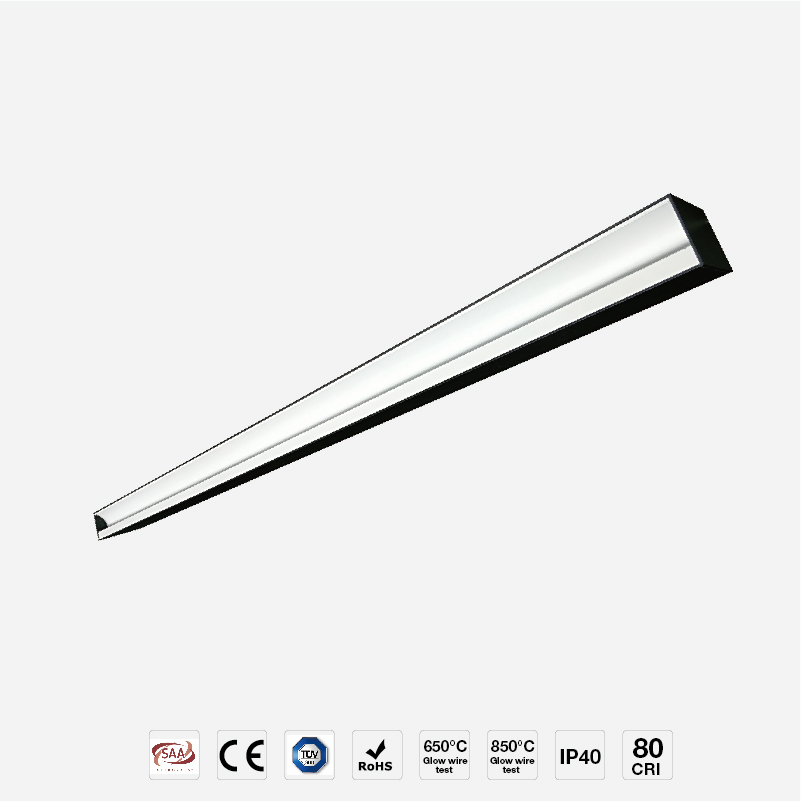

Wall Wash LED Linear Light LA50 48W
Click on the image to view the original image
Product: views:11Wall Wash LED Linear Light LA50 48W
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:45
  Negotiated
Product Details

Products Details

Thanks for choosing DW Wall Wash LED Linear Light. It is designed to be used in as the wall washer to highlight the picture, commodity, letters on the wall in the shops, stores, etc. Strong Aluminium profile housing and screw free diecasting end cap provide simple installation but stable performance. Elegant diffuser emits uniform and soft light. It’s free to combine different sizes together to display in a modern way.

◈  FEATURES

bg


          ◪    t is designed to be used in as the wall washer to highlight the picture, commodity, letters on the wall in the shops, stores, school, etc.

  • ◪      RA90 and dimmable optionslOpal

  • ◪    Simply extrusion design with screw free diecasting end cap

  • ◪    Integrated driver

  • ◪   RA 90 optional

  • ◪   CCT tunable optional


◈  PERFORMANCE

bg






◈ TECHNICAL DATA  SHEET

bg


LA50

Photometric Parameters

NO.

Item

Parameter

1

LED

High luminous flux SMD LED

2

Luminous Efficiency

>80LM/W

3

CCT

3000K,4000K 5700K

(warm white, natural white, cool white)

4

CRI

≥80

5

BeamAngle

110°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

dirver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.95

11

Protection Class

Class II

General Parameters

12

Rating IP

IP 40

13

Material

Aluminum + PC

14

Frame Finishing

Aluminium silver color

15

Installation

Suspended; Surface Mount; Recessed

16

WorkingTemperature

-20~+45℃

17

StoringTemperature

-40~+60℃

18

Working Humidity

15%~90%RH

19

Certificate

CE RoHS SAA


◈  DIMENSION

bg


Model  No.

Efficiency

power

CCT

Lumen

Size

DWLA4-24V

80lm/W

36W


3000K

4000K

5700K


2880lm

1140*50*80mm

DWLA4-24V

80lm/W

48W


3000K

4000K

5700K


3800lm

1450*50*80mm



◈  INSTALLATION   INSTRUCTION

bg




◈  APPLICATION

bg


♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school
