Suspension Opal Led Linear light 90lm/w UGR<19
Click on the image to view the original image
Product: views:12Suspension Opal Led Linear light 90lm/w UGR<19
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:45
  Negotiated
Product Details




Products Details

Thanks for choosing reflector module LED linear light. This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution. Our reflector ledliner light  has a dedicated driver and elegant appearance to make a space refined and smart, perfectly adapted to fashion or design needs.

◈  FEATURES

bg

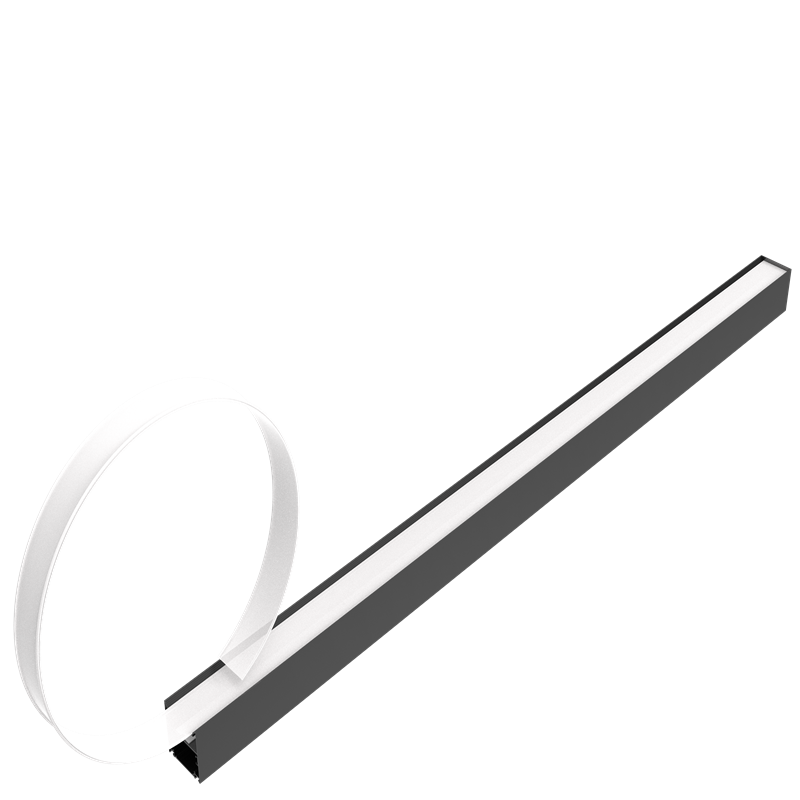

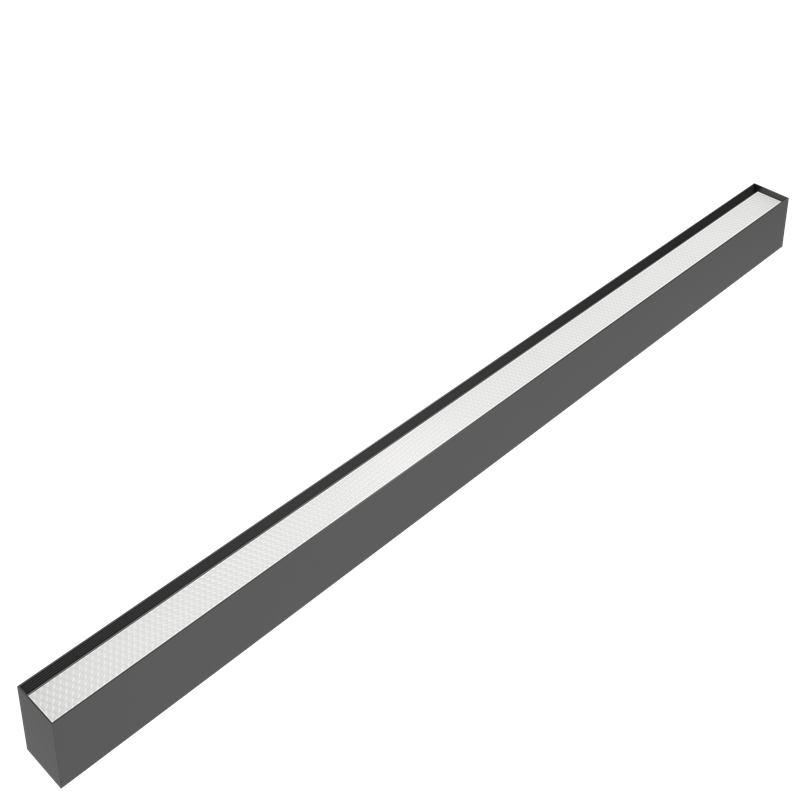

          ◪   Opal diffuser and prismatic UGR<19 Version optional;

         ◪   Efficiency:90lm/W;

         ◪   Anti-glare design UGR<19 optional;

         ◪   Simply extrusion profile with screw free diecasting end cap;

         ◪   Integrated driver,RA90 optional;

         ◪   Flexible installation:Suspended,surfacemount;

         ◪   Standalone type and continuous row optional

         ◪   Lifud,BOKE,Tridonic diver or other driver optional;
































◈  PERFORMANCE

bg



◈ TECHNICAL DATA  SHEET

bg


DWLO436-1

Photometric Parameters

NO.

Item

Parameter

1

LED

High luminous flux SMD LED

2

Luminous Efficiency

90LM/W

3

CCT

3000K,4000K 5700K

(warm white, natural white, cool white)

4

CRI

≥80

5

BeamAngle

110°

6

LED Lifespan

≥50000 Hours

Electrical Parameters

7

dirver input voltage

AC220-240V /50~60Hz

8

OutputVoltage

DC30-40V

9

Power Supply Efficiency

≥88%

10

Power Factor

≥0.95

11

Protection Class

Class II

General Parameters

12

Rating IP

IP 40

13

Material

Aluminum + PC

14

Frame Finishing

Aluminium silver color

15

Installation

Suspended, Surface mount, Recessed

16

WorkingTemperature

-20~+45℃

17

StoringTemperature

-40~+60℃

18

Working Humidity

15%~90%RH

19

Certificate

CE RoHS


◈  DIMENSION

bg


Model  No.

Efficiency

power

CCT

Lumen

Size

DWLO436

90lm/W

36W


3000K

4000K

5700K


3200lm

W55XH58XL1124mm

DWLO548

90lm/W

48W


3000K

4000K

5700K


43000lm

W55XH58XL1404mm

DWLU436

100lm/W

36W


3000K

4000K

5700K


3600lm

W55XH58XL1124mm

DWLU548

100lm/W

48W


3000K

4000K

5700K


4800lm

W55XH58XL1404mm

DWLF436

90lm/W

36W


3000K

4000K

5700K


3200lm

W55XH58XL1124mm

DWLF548

90lm/W

48W


3000K

4000K

5700K


4800lm

W55XH58XL1404mm




◈  INSTALLATION   INSTRUCTION

bgmETHIN

Method A: Suspending

1. Tighten the set screws to fix 4 strip corners at both ends       2.  Fix the lifting brackets and cable holders at both ends with screws

3. Fix the bases on the ceiling according to the drawing              4.String one end of the sling into the cable holder;

and install the cables into the bases.

Method B: Ceiling Installation

  1. The two ceiling brackets are screwed to the ceiling, and the       2. Install the lamp into the ceiling brackets and lock the  2 brackets are installed within lamp length.                                      screws on the ceiling brackets;

Mehod C: Connected with End Caps

1. Remove the two small pieces at the top of the end caps;          2. Use the screw to fix the bar connectors to one end of the                                                                                                                     products, then instert another products to be spliced into the                                                                                                               bar connectors and lock the machine screw;

Method D: Connected without end caps

  1. Remove the black cover and end cover,  and fix the bar               2. Instert another product to the bar connector and lock the connectors on the side of the product with set screws;        machine connectors , install all the black cover.

L Connector Connection

T Connector Connection

X Connector Connection








◈  APPLICATION

bg


♦ Office

♦ Home

♦ Corridor

♦ Shops

♦ school
