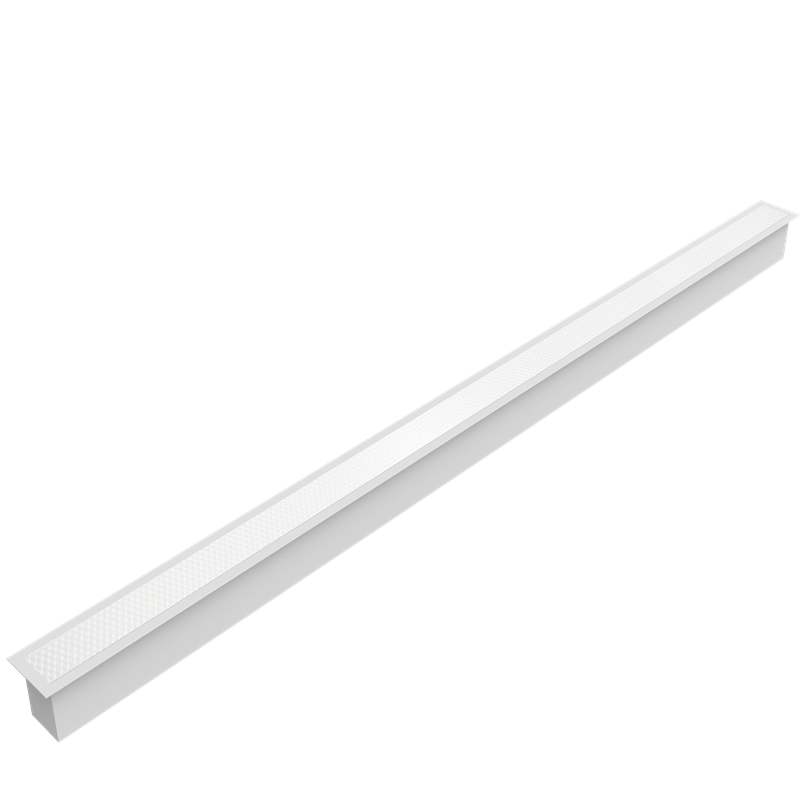

Thanks for choosing reflector module LED linear light. This light combines innovative optical and mechanical design features to achieve a soft and uniform light distribution. Our reflector ledliner light has a dedicated driver and elegant appearance to make a space refined and smart, perfectly adapted to fashion or design needs.
◈ FEATURES
◪ Opal diffuser and prismatic UGR<19 Version optional;
◪ Efficiency:90lm/W;
◪ Integrated driver,RA90 optional;
◪ Ressed installation;
◪ 180 degree Joining connector helps continuous connection;
◪ Lifud,BOKE,Tridonic diver or other driver optional;
◪ Seamless connection and no light leakage;
◈ PERFORMANCE
◈ TECHNICAL DATA SHEET
DWLO436-1 | |||||||
Photometric Parameters | |||||||
NO. | Item | Parameter | |||||
1 | LED | High luminous flux SMD LED | |||||
2 | Luminous Efficiency | 90LM/W | |||||
3 | CCT | 3000K,4000K 5700K (warm white, natural white, cool white) | |||||
4 | CRI | ≥80 | |||||
5 | BeamAngle | 110° | |||||
6 | LED Lifespan | ≥50000 Hours | |||||
Electrical Parameters | |||||||
7 | dirver input voltage | AC220-240V /50～60Hz | |||||
8 | OutputVoltage | DC30-40V | |||||
9 | Power Supply Efficiency | ≥88% | |||||
10 | Power Factor | ≥0.95 | |||||
11 | Protection Class | Class II | |||||
General Parameters | |||||||
12 | Rating IP | IP 40 | |||||
13 | Material | Aluminum + PC | |||||
14 | Frame Finishing | Aluminium silver color | |||||
15 | Installation | Suspended, Surface mount, Recessed | |||||
16 | WorkingTemperature | -20～+45℃ | |||||
17 | StoringTemperature | -40～+60℃ | |||||
18 | Working Humidity | 15%~90%RH | |||||
19 | Certificate | CE RoHS | |||||
◈ DIMENSION
Model No. | Efficiency | power | CCT | Lumen | Size |
DWLO436R | 90lm/W | 36W | 3000K 4000K 5700K | 3200lm | W59XH57XL1124mm |
DWLO548R | 90lm/W | 48W | 3000K 4000K 5700K | 43000lm | W59XH57XL1404mm |
DWLU436R | 90lm/W | 36W | 3000K 4000K 5700K | 3200lm | W59XH57XL1124mm |
DWLU548R | 90lm/W | 48W | 3000K 4000K 5700K | 4300lm | W59XH57XL1404mm |
DWLF436R | 90lm/W | 36W | 3000K 4000K 5700K | 3200lm | W59XH57XL1124mm |
DWLF548R | 90lm/W | 48W | 3000K 4000K 5700K | 4300lm | W59XH57XL1404mm |
◈ INSTALLATION INSTRUCTION
Method A: Suspending
1. Tighten the set screws to fix 4 strip corners at both ends 2. Fix the lifting brackets and cable holders at both ends with screws
3. Fix the bases on the ceiling according to the drawing 4.String one end of the sling into the cable holder;
and install the cables into the bases.
Method B: Ceiling Installation
The two ceiling brackets are screwed to the ceiling, and the 2. Install the lamp into the ceiling brackets and lock the 2 brackets are installed within lamp length. screws on the ceiling brackets;
Mehod C: Connected with End Caps
1. Remove the two small pieces at the top of the end caps; 2. Use the screw to fix the bar connectors to one end of the products, then instert another products to be spliced into the bar connectors and lock the machine screw;
Method D: Connected without end caps
Remove the black cover and end cover, and fix the bar 2. Instert another product to the bar connector and lock the connectors on the side of the product with set screws; machine connectors , install all the black cover.
L Connector Connection
T Connector Connection
X Connector Connection
