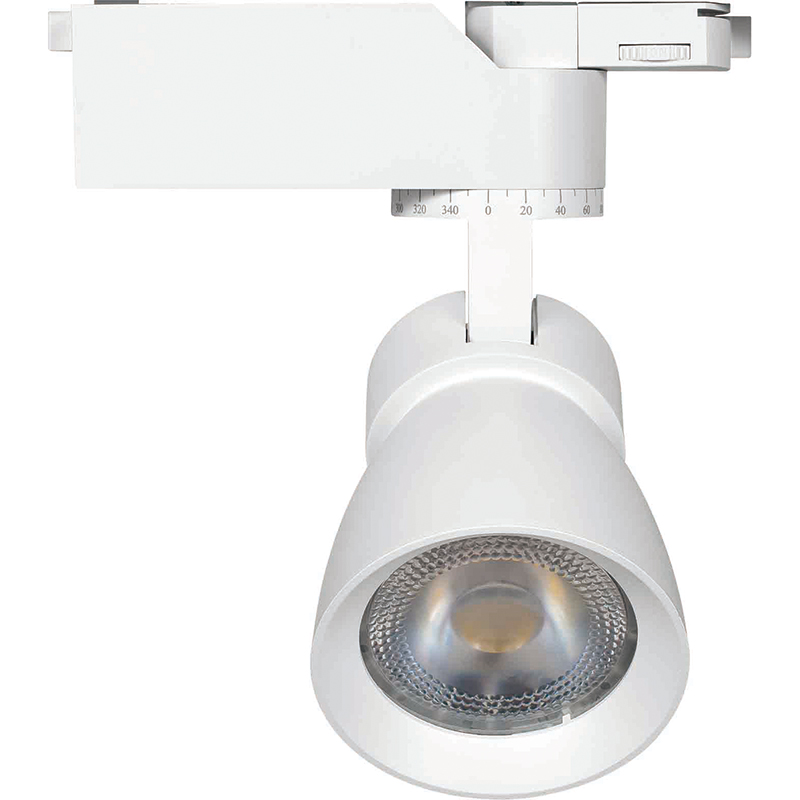

Very nice design track light, made by die-cast aluminium; surface powder coated in white ,black or silver; spotlight head 355° rotatable and 180° tiltable; optimised for installation in CANYON 50 channel, adapter disappears into channel; Integrated converter in the plastic adapter; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI ≥ 90; min. 80 % of the luminous flux after 50000 hours; BO 70 BASIC: high quality aluminium reflector with spherical facet finish; high-gloss anodised; precise radiation characteristic with four different beam angles; installed and exchanged without tools; BO 70 degree of protection IP 20; PC I; adapter for toolless insertion or movement on a variety of 3-phase power tracks; optional DALI
Product test data
| 12° | 24° | 36° | |||||||
| h(m) | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
| d(m) | 0.26 | 0.52 | 0.78 | 0.4 | 0.8 | 1.2 | 0.57 | 1.15 | 1.73 |
| Em | 13397 | 3349 | 1489 | 6532 | 1633 | 726 | 4920 | 1230 | 547 |
| Emax | 17871 lx | 4468 lx | 1489 lx | 9367 lx | 2342 lx | 1041 lx | 7527 lx | 1882 lx | 836 lx |
Show details
