SPECIFICATIONS
Technical data |
| Information | |
Brand | Mingfa tech | Net weight (gram) | 192.0 |
Item number | EtraLED-7050 Passive cooling | Certification | CE, ROHS, WEEE |
Series | EtraLED Star Heatsink | Packing quantity | 150 |

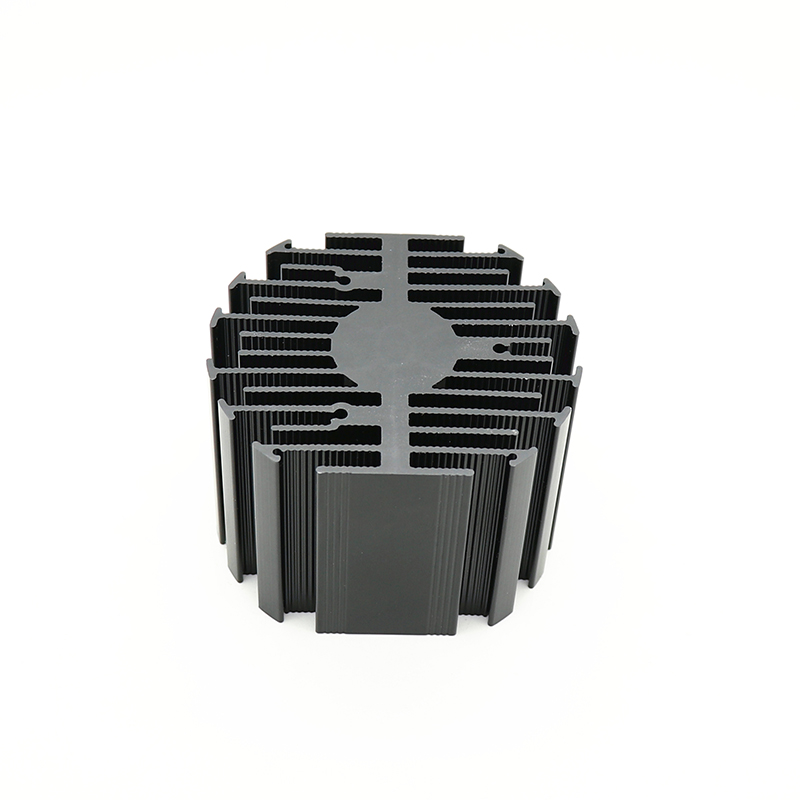

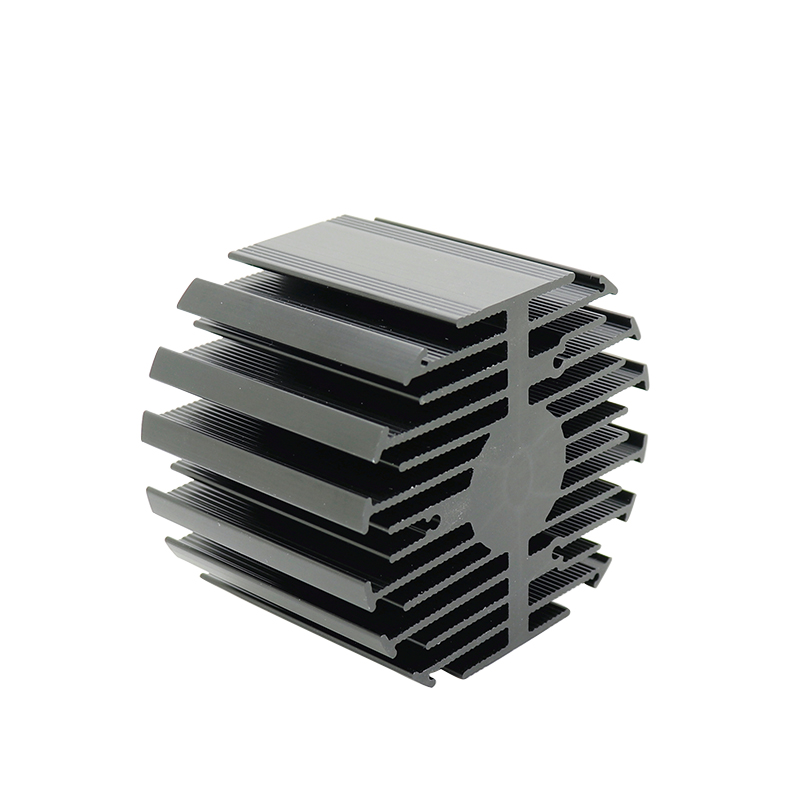

Description | LED Star Heatsink ø70mm x H50mm, Standard height 50mm, other heights on request. Designed for Spotlight and Downlight 1200~3000lm; Rth 2.20°C/w. Self-taping holes or custom mounting holes for Zhaga book 3 and book 11 LED modules. Extruded from highly conductive aluminum, standard finish - black anodized;Compatible all branded COBs. |
|
|
Material | AL6063-T5 |
|
|
Dia.(mm) | 70.0 |
|
|
Height (mm) | 50.0 |
|
|
Width (mm) | * |
|
|
Lenght (mm) | * |
|
|
Thermal Resistance Rth (°C/W) | 2.2 |
|
|
Lumen (lm) | 1200~3000 |
|
|
Color & Finishing | Black Anodizd |
|
|
Heatsink Material | AL6063-T5 |
|
|
Dissipated power (Ths-amb,50°C) | 22.9(W) |
|
|
Cooling surface area (mm²) | 79093 |
| |
Datasheets
PRODUCT APPLICATION
Spot Light
Down Light
