Technical Data |
| Information | |
Brand | Mingfa Tech | Net Weight (gram) | 81.0 |
Item Number | eLED-4640 Passive cooling | Certification | CE, ROHS, WEEE |
Series | eLED Star Heatsink | Packing Quantity | 150 |

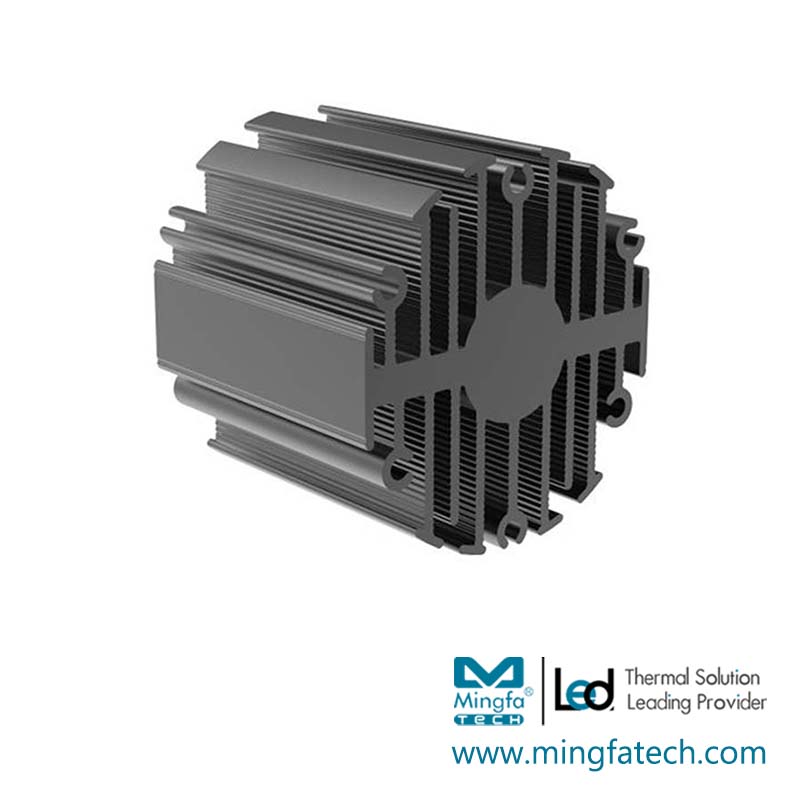

Description | LED light accessory Heatsink ø46.5mm x H40mm, Standard height 40mm, other heights on request. Designed for Spotlight and Downlight 500~1300lm; Rth 5.20°C/w. Self-taping holes or custom mounting holes for Zhaga book 3 and book 11 LED modules. Extruded from highly conductive aluminum, standard finish - black anodized; Compatible all branded COBs. |
|
|
Material | AL6063-T5 |
|
|
Dia.(mm) | 46.5 |
|
|
Height (mm) | 40.0 |
|
|
Width (mm) | * |
|
|
Lenght (mm) | * |
|
|
Thermal Resistance Rth (°C/W) | 5.56 |
|
|
Lumen (lm) | 500~1300 |
|
|
Color & Finishing | Black Anodized |
|
|
Heatsink Material | AL6063-T5 |
|
|
Dissipated Power (Ths-amb,50°C) | 9.7(W) |
|
|
Cooling Surface Area (mm²) | 33323 |
| |
