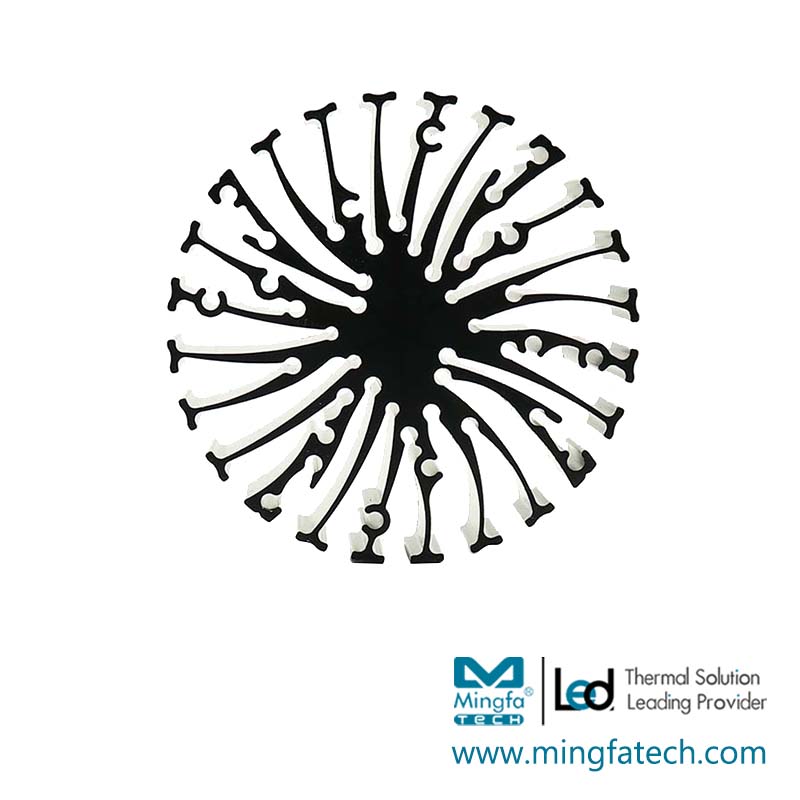

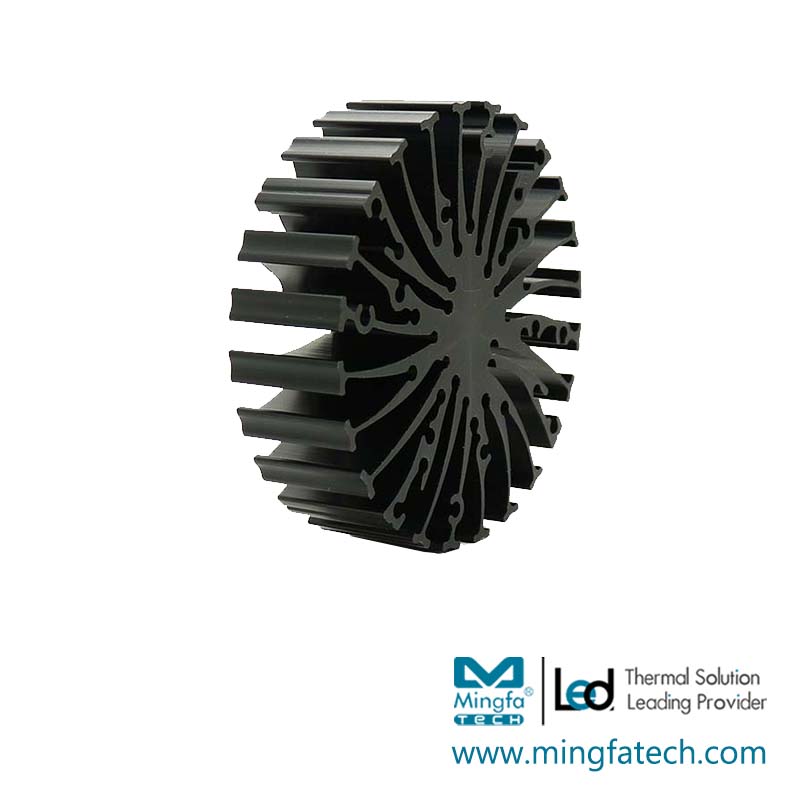

EtraLED-7020 Passive cooling
Click on the image to view the original image
Product: views:9EtraLED-7020 Passive cooling
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-09-03 08:45
  Negotiated
Product Details

SPECIFICATIONS

DATASHEETS

APPLICATION

Related products


SPECIFICATIONS

Technical Data



Information

Brand

Mingfa Tech

Net Weight (gram)

77.0

Item Number

EtraLED-7020 Passive cooling

Certification

CE, ROHS, WEEE

Series

EtraLED Star Heatsink

Packing Quantity

150

Description

LED Star Heatsink ø70mm x H20mm, Standard height 20mm, other heights on request.


Designed for Spotlight and Downlight 800~2000lm; Rth 3.57°C/w.


Self-taping holes or custom mounting holes for Zhaga book 3 and book 11 LED modules.


Extruded from highly conductive aluminum, standard finish - black anodized;


Compatible all branded COBs.





Material

AL6063-T5





Dia.(mm)

70.0





Height (mm)

20.0





Width (mm)

*





Lenght (mm)

*





Thermal Resistance Rth  (°C/W)

3.57





Lumen (lm)

800~2000





Color & Finishing

Black Anodized





Heatsink Material

AL6063-T5





Dissipated Power  (Ths-amb,50°C)

14.0(W)





Cooling Surface Area (mm²)

33348
