SPECIFICATIONS
Technical Data |
| Information | |
Brand | Mingfa Tech | Net Weight (gram) | 336.0 |
Item Number | tLED-92×90×30 Passive cooling | Certification | CE, ROHS, WEEE |
Series | tLED Star Heatsink | Packing Quantity | 45 |

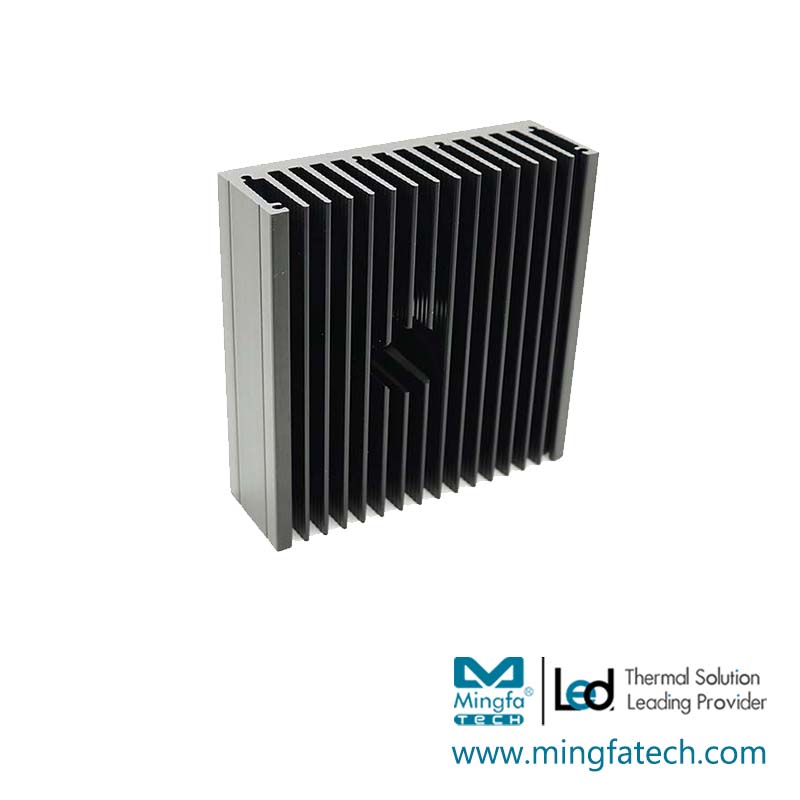

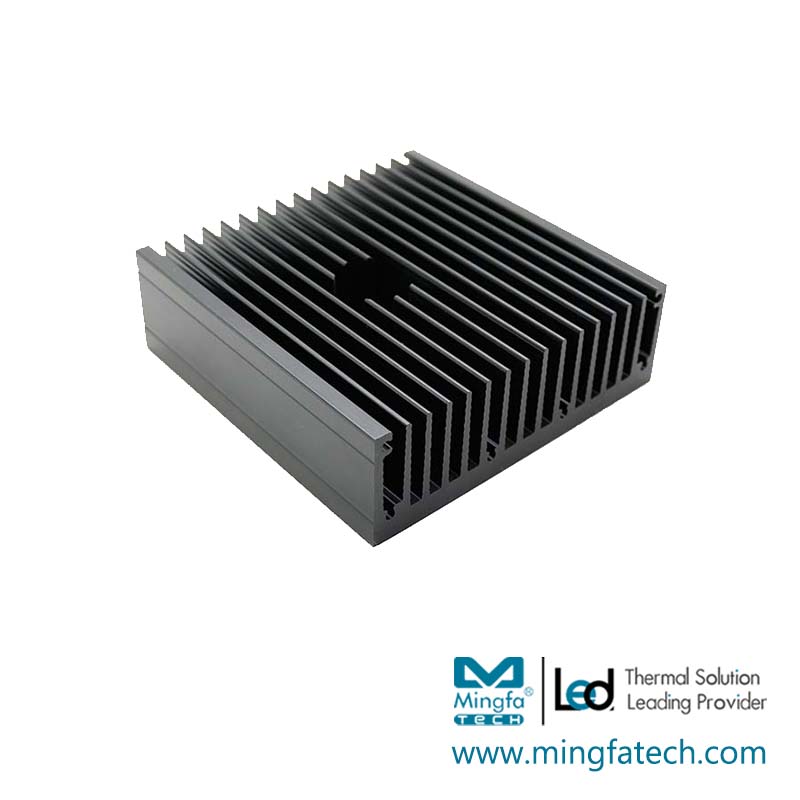

Description | LED Star Heatsink L90xW92xH30mm, Standard height 30mm, other heights on request. Designed for Spotlight and Downlight 1500~4500lm; Rth 1.50°C/w. Without hole or custom mounting holes for Zhaga book 3 LED modules; Extruded from highly conductive aluminum, standard finish - black anodized; Compatible all branded COBs. |
|
|
Material | AL6063-T5 |
|
|
Dia.(mm) | * |
|
|
Height (mm) | 30.0 |
|
|
Width (mm) | 92.0 |
|
|
Lenght (mm) | 90.0 |
|
|
Thermal Resistance Rth (°C/W) | 1.5 |
|
|
Lumen (lm) | 1500~4500 |
|
|
Color & Finishing | Black Anodized or Clear Anodized |
|
|
Heatsink Material | AL6063-T5 |
|
|
Dissipated Power (Ths-amb,50°C) | 34.0(W) |
|
|
Cooling Surface Area (mm²) | 89975 |
| |
