SPECIFICATIONS
Technical Data |
| Information | |
Brand | Mingfa Tech | Net Weight (gram) | 666.0 |
Item Number | tLED-115×50×115 Passive cooling | Certification | CE, ROHS, WEEE |
Series | tLED Star Heatsink | Packing Quantity | 150 |

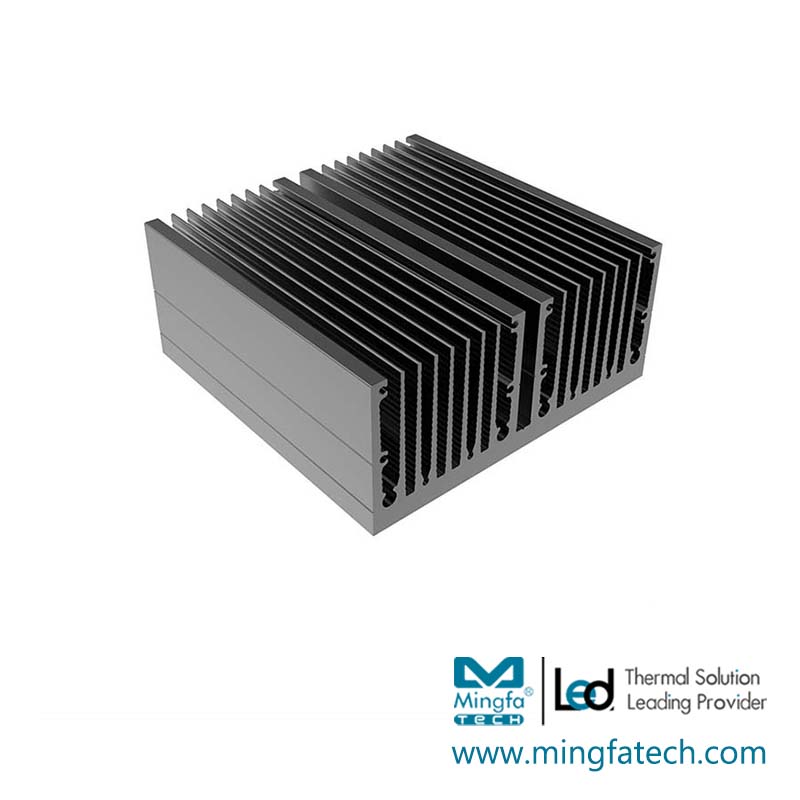

Description | LED Star Heatsink L115xW50xH115mm, Standard height 50mm, other heights on request. Designed for Hibay,floodlight and street light 2500~6000lm; Rth 1.00°C/w; Without hole or custom mounting holes for Zhaga book 3 LED modules; Extruded from highly conductive aluminum, standard finish - black anodized; Compatible all branded SMDs. |
|
|
Material | AL6063-T5 |
|
|
Dia.(mm) | * |
|
|
Height (mm) | 115.0 |
|
|
Width (mm) | 50.0 |
|
|
Lenght (mm) | 115.0 |
|
|
Thermal Resistance Rth (°C/W) | 1.0 |
|
|
Lumen (lm) | 2500~6000 |
|
|
Color & Finishing | Black Anodized or Clear Anodized |
|
|
Heatsink Material | AL6063-T5 |
|
|
Dissipated Power (Ths-amb,50°C) | 50.0(W) |
|
|
Cooling Surface Area (mm²) | 145374 |
| |
