PRODUCT VIDEO
SPECIFICATIONS
| Brand | Mingfa Tech | ||

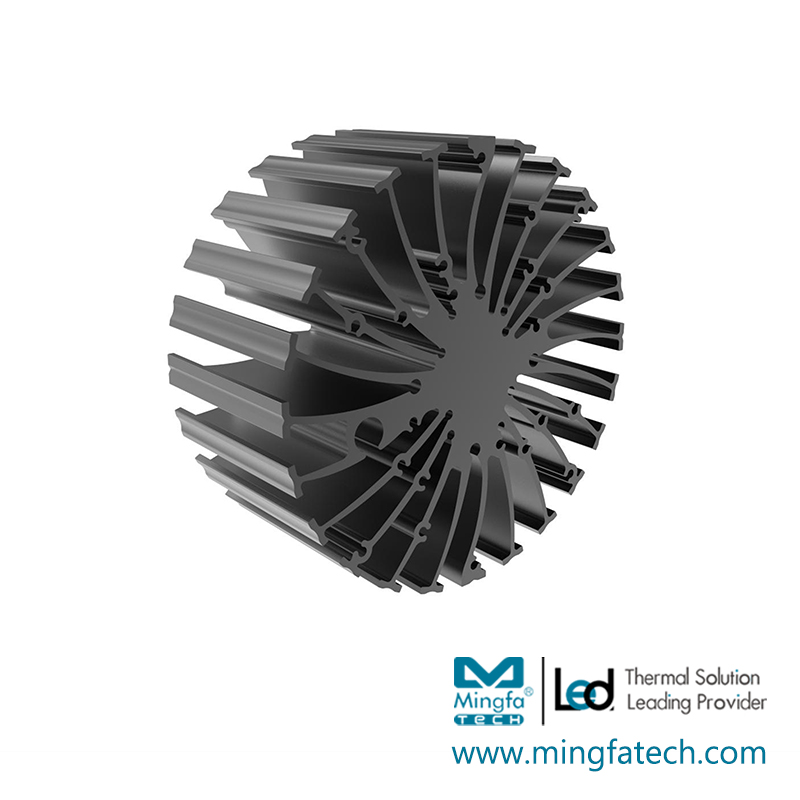

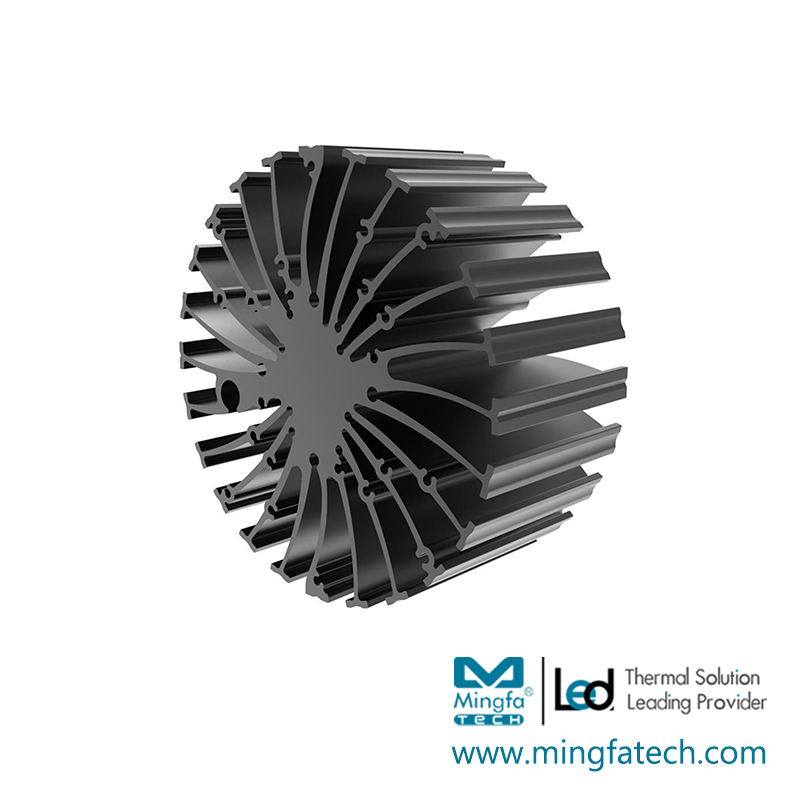

| Series Name | EtraLED passive heat sinks | ||
| Seriest Number | EtraLED-110 | ||
| Manufacturing Technology | Aluminum extrusion | ||
| Material | AL6063-T5 | ||
| Color & Finishing | Black Anodized & Clear Anodized | ||
| Certification | CE, ROHS, WEEE | ||
| Diameter(mm) | Φ110 | ||
| Height(mm) | 20.0 | 50.0 | 80.0 |
| Item Number | EtraLED-11020 | EtraLED-11050 | EtraLED-11080 |
| Max. Lumen | 4600 lm | 6700 lm | 7900 lm |
| Dissipated Power (Ths-amb,50°C) | 33.0 W | 48.0 W | 57.0 W |
| Thermal Resistance Rth（°C/W) | 1.5°C/W | 1.1°C/W | 0.9°C/W |
| Cooling Surface Area (mm²) | 53311 mm² | 124084 mm² | 194856 mm² |
| Net Weight (g) | 165.0 g | 414.0 g | 662.0 g |
| Quantity(pcs/CTN) | 36 pcs | 18 pcs | 12 pcs |
| Modular Types | COB | COB | COB |
| For Environments | Indoor area | ||
| For Lightings | Down lights,Architectural lights | ||
| For Application | Retail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare | ||
| For LED brands | Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga | ||
DATASHEETS
EtraLED-110 Series Star Heat Sinks Φ110mm for COB Modular Product Brief.pdf - EtraLED-110 Series Φ110mm COB Star Heat Sinks Thermal Data.pdf
