Home > Products > EtraLED-13020/13040/13050/13080 cylindrical extruded aluminum heatsink

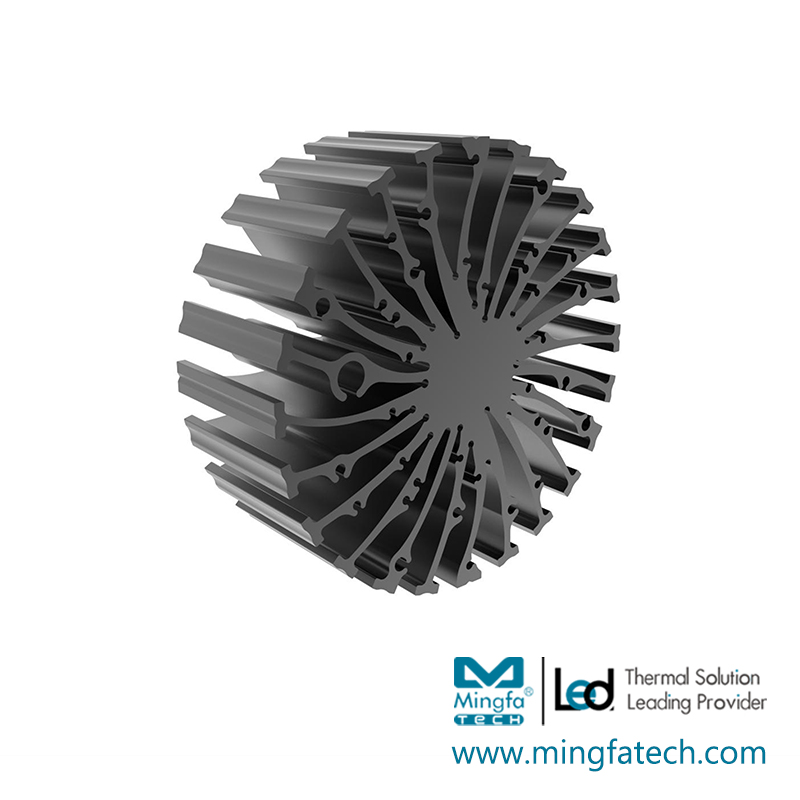

EtraLED-13020/13040/13050/13080 cylindrical extruded aluminum heatsink
Click on the image to view the original image
Product： views：9EtraLED-13020/13040/13050/13080 cylindrical extruded aluminum heatsink
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-09-03 08:45
  Negotiated
Product Details

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

BrandMingfa Tech
Series NameEtraLED passive heat sinks
Seriest NumberEtraLED-130
Manufacturing TechnologyAluminum extrusion
MaterialAL6063-T5
Color & FinishingBlack Anodized & Clear Anodized
CertificationCE, ROHS, WEEE
Diameter(mm)Φ130
Height(mm)20.0 40.0 50.0 80.0
Item NumberEtraLED-13020EtraLED-13040EtraLED-13050EtraLED-13080
Max. Lumen5000 lm6000 Im6700 lm8400 lm
Dissipated Power  (Ths-amb,50°C)42.0 W51.0 W56.5 W70.6 W
Thermal Resistance Rth（°C/W)1.1°C/W0.9°C/W0.9°C/W0.7°C/W
Cooling Surface Area (mm²)68964 mm²127858 mm²157205 mm²245462 mm²
Net Weight (g)274.0 g553.0 g684.0 g1108.0 g
Quantity(pcs/CTN)32 pcs16 pcs16 pcs12 pcs
Modular TypesCOBCOBCOBCOB
For EnvironmentsIndoor area
For LightingsDown lights,Architectural lights
For ApplicationRetail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brandsAdura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS

PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminous surface of 9.0-55.0mm.
  • 03

    Suitable for hole positions of Xicato XTM, Philips SLM and DLM modules.
Mingfa Tech-Etraled-130201304013050 cylindrical extruded aluminum heatsink-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05
    Self-tapping hole design can save tapping cost and inventory pressure cost for customers.
  • 06

    Compatible with more than 20 COB brands . Covering 85%-95% of modules.

PRODUCT COMPARISON

Mingfa Tech-Etraled-130201304013050 cylindrical extruded aluminum heatsink-4
Mingfa Tech-Etraled-130201304013050 cylindrical extruded aluminum heatsink-5

CERTIFICATE

Mingfa Tech-Etraled-130201304013050 cylindrical extruded aluminum heatsink-6
