SPECIFICATIONS
| Brand | Mingfa Tech | ||

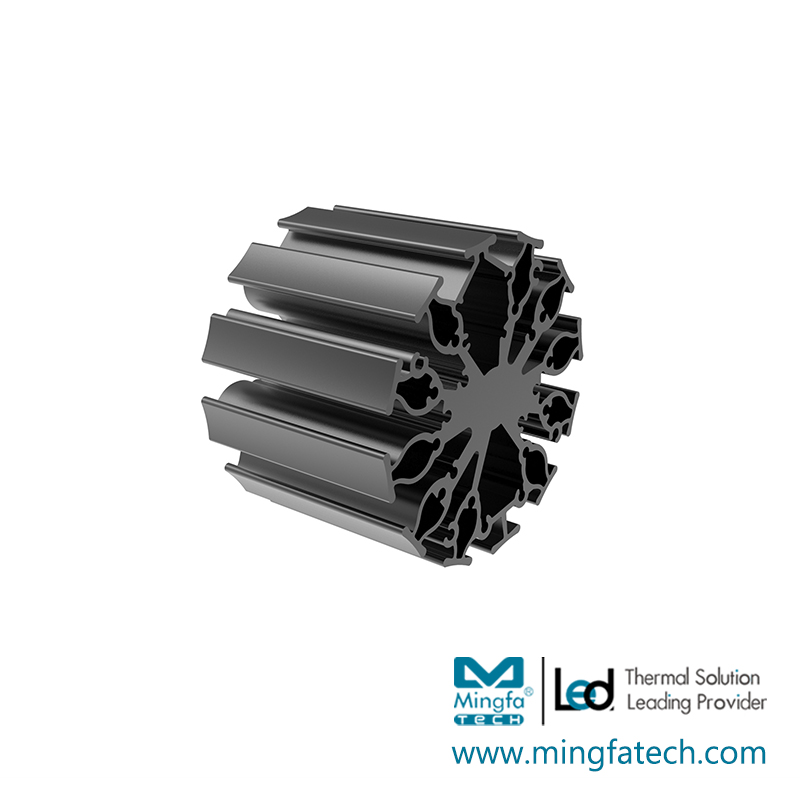

| Series Name | FanLED passive heat sinks | ||
| Seriest Number | FanLED-70 | ||
| Manufacturing Technology | Aluminum extrusion | ||
| Material | AL6063-T5 | ||
| Color & Finishing | Black Anodized or Clear Anodized | ||
| Certification | CE, ROHS, WEEE | ||
| Diameter(mm) | Φ70 | ||
| Height(mm) | 20.0 | 50.0 | 80.0 |
| Item Number | FanLED-7020 | FanLED-7050 | FanLED-7080 |
| Max. Lumen | 1800 lm | 2700 lm | 3200 lm |
| Dissipated Power (Ths-amb,50°C) | 13.0 W | 19.6 W | 23.0 W |
| Thermal Resistance Rth（°C/W) | 3.8°C/W | 2.3°C/W | 1.9°C/W |
| Cooling Surface Area (mm²) | 25980 mm² | 64452 mm² | 103923 mm² |
| Net Weight (g) | 73.5 g | 183.9 g | 294.2 g |
| Quantity(pcs/CTN) | 128 pcs | 64 pcs | 48 pcs |
| Modular Types | COB | COB | COB |
| For Environments | Indoor area | ||
| For Lightings | Spot lights,Down lights,Architectural lights,Track lights | ||
| For Application | Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare | ||
| For LED brands | Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga | ||
DATASHEETS
FanLED-70 Series Star Heat Sinks Φ70mm for COB Modular Product Brief.pdf - FanLED-70 Series Φ70mm Material AL6063-T5 COB Star Heat Sinks Thermal Data.pdf
