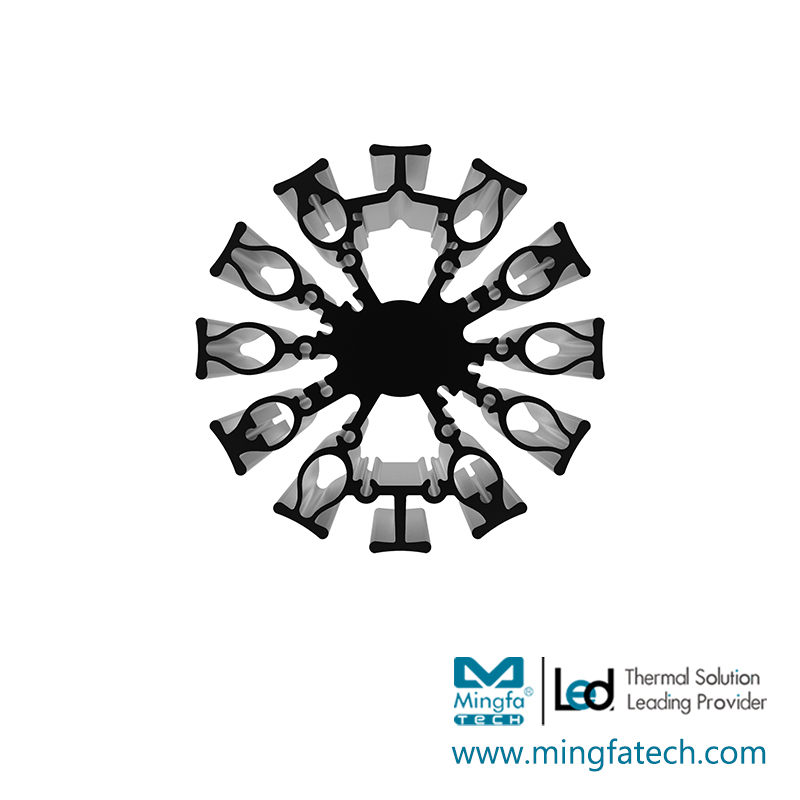

FanLED-8520/8550/8580 led passive heatsink cob heat sink
Click on the image to view the original image
Product： views：11FanLED-8520/8550/8580 led passive heatsink cob heat sink
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-09-03 08:45
  Negotiated
Product Details

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

BrandMingfa Tech
Series NameFanLED passive heat sinks
Seriest NumberFanLED-85
Manufacturing TechnologyAluminum extrusion
MaterialAL6063-T5
Color & FinishingBlack Anodized or Clear Anodized
CertificationCE, ROHS, WEEE
Diameter(mm)Φ85
Height(mm)20.0 50.0 80.0
Item NumberFanLED-8520FanLED-8550FanLED-8580
Max. Lumen2300 lm3600 lm4400 lm
Dissipated Power  (Ths-amb,50°C)17.0 W26.0 W32.0 W
Thermal Resistance Rth（°C/W)3.0°C/W1.9°C/W1.6°C/W
Cooling Surface Area (mm²)33881 mm²79151 mm²124420 mm²
Net Weight (g)100.0 g249.9 g399.8 g
Quantity(pcs/CTN)72 pcs36 pcs27 pcs
Modular TypesCOBCOBCOB
For EnvironmentsIndoor area
For LightingsDown lights,Architectural lights
For ApplicationRetail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brandsAdura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS


PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminescent surface of 6.3-30.0mm.
  • 03

    Beautiful appearance design, and the line can go inside.
Mingfa Tech-Fanled-852085508580 Led Passive Heatsink Cob heat sink-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05
    The product can be added with the general market shape square fan (L60xW60).
  • 06

    10%-15% thermal wattage higher than normal star heatsink.
