SPECIFICATIONS
| Brand | Mingfa Tech | |

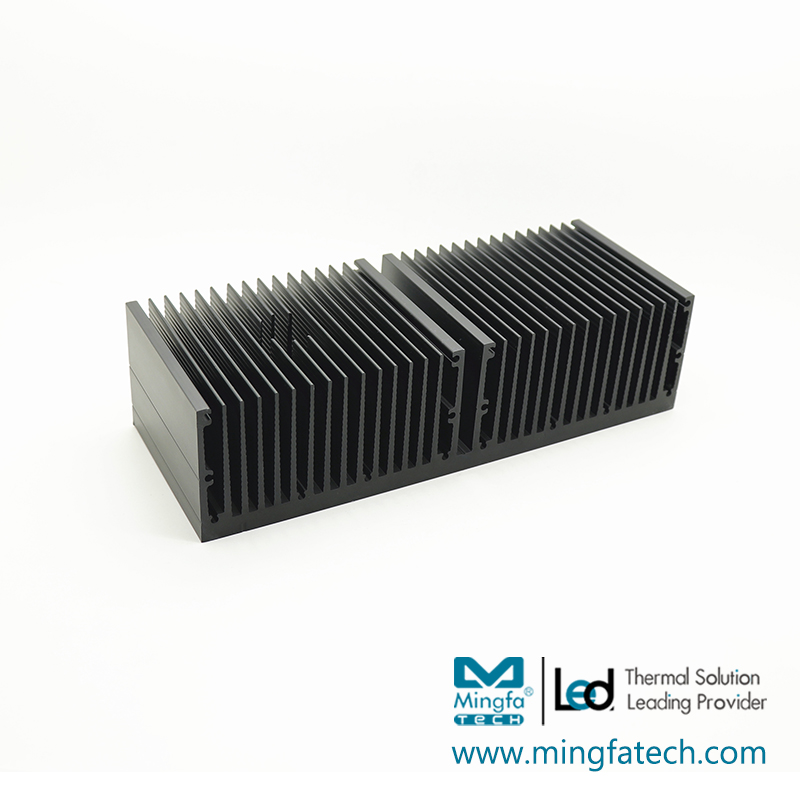

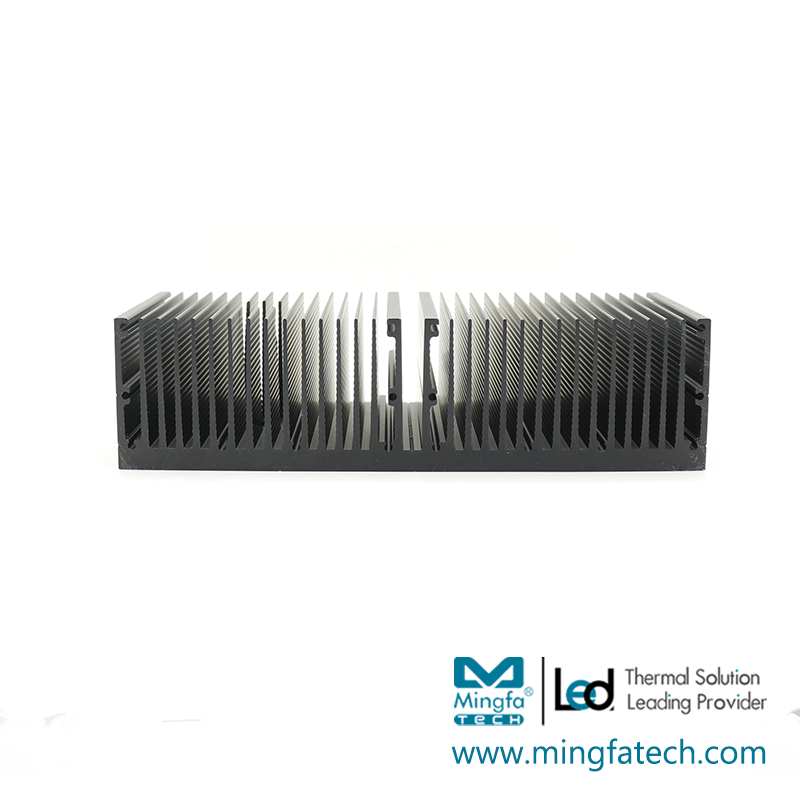

| Series Name | tLED passive heat sinks | |
| Seriest Number | tLED-190 | |
| Manufacturing Technology | Aluminum extrusion | |
| Material | AL6063-T5 | |
| Color & Finishing | Black Anodized & Clear Anodized | |
| Certification | CE, ROHS, WEEE | |
| Length*Width(mm) | L190xW70 | |
| Height(mm) | 30.0 | 50.0 |
| Item Number | tLED-190×70×30 | tLED-92×90×50 |
| Max. Lumen | 7400 Im | 9900 Im |
| Dissipated Power (Ths-amb,50°C) | 53.0 W | 47.0 W |
| Thermal Resistance Rth（°C/W) | 0.9°C/W | 0.7°C/W |
| Cooling Surface Area (mm²) | 142323 mm² | 234320 mm² |
| Net Weight (g) | 533.0 g | 770.0 g |
| Quantity(pcs/CTN) | 24 pcs | 18 pcs |
| Modular Types | SMD | SMD |
| For Environments | Indoor area，Outdoor area | |
| For Lightings | Flood lights,Street lights,Horticultures,Architectural lights,Area Lights | |
| For Application | Industrial & Warehouse,Station & Airport,Horticulture,Outdoor | |
| For LED brands | Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga | |
