SPECIFICATIONS
| Brand | Mingfa Tech | |

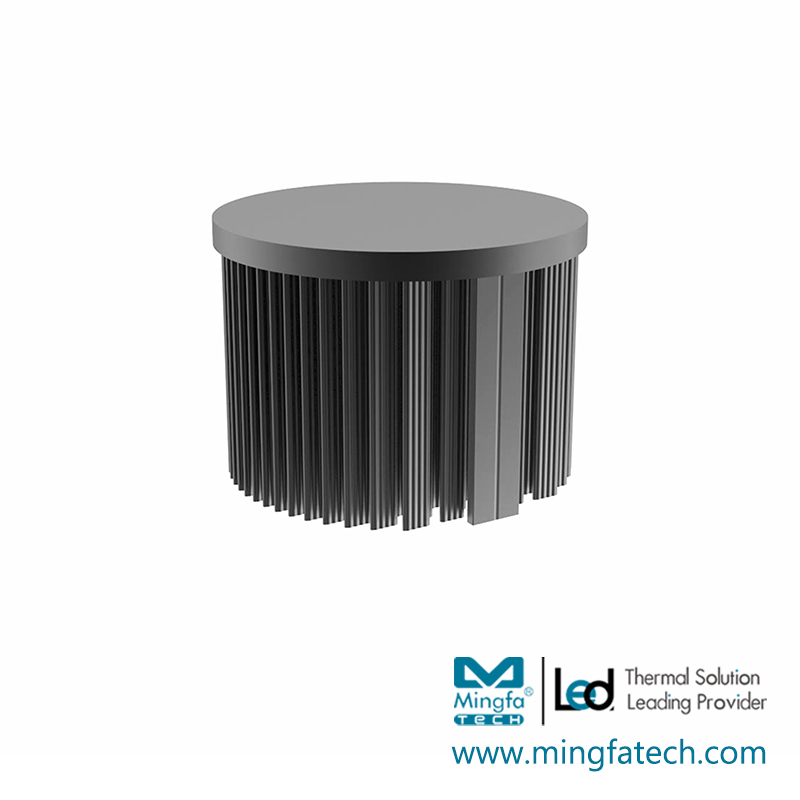

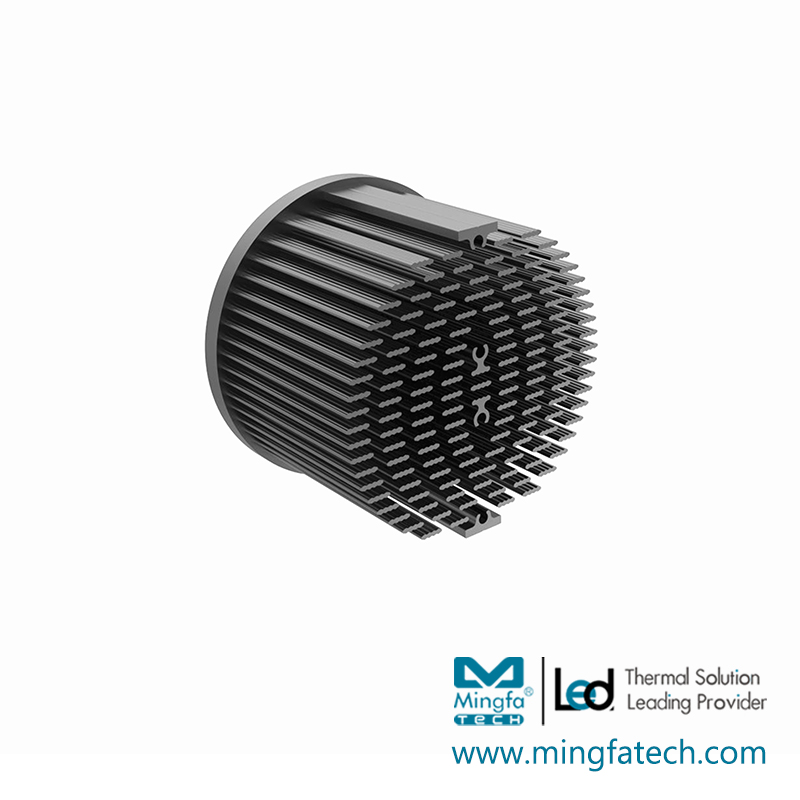

| Series Name | xLED passive heat sinks | |
| Seriest Number | xLED-80 | |
| Manufacturing Technology | Cold forging | |
| Material | AL1070 | |
| Color & Finishing | Black Anodized & Clear Anodized | |
| Certification | CE, ROHS, WEEE | |
| Diameter(mm) | Φ80 | |
| Height(mm) | 30.0 | 50.0 |
| Item Number | xLED-8030 | xLED-8050 |
| Max. Lumen | 2200 Im | 2900 Im |
| Dissipated Power (Ths-amb,50°C) | 16.0 W | 21.0 W |
| Thermal Resistance Rth（°C/W) | 3.1°C/W | 2.3°C/W |
| Cooling Surface Area (mm²) | 72123 mm² | 120774 mm² |
| Net Weight (g) | 140.0 g | 197.0 g |
| Quantity(pcs/CTN) | 90 pcs | 54 pcs |
| Modular Types | SMD | SMD |
| For Environments | Indoor area，Outdoor area | |
| For Lightings | Spot lights,Down lights,Track lights,Architectural lights | |
| For Application | Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare | |
| For LED brands | Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga | |
