Home > Products > xLED-13030/13050/13080/130100 led pin fin coolers smd heat sink

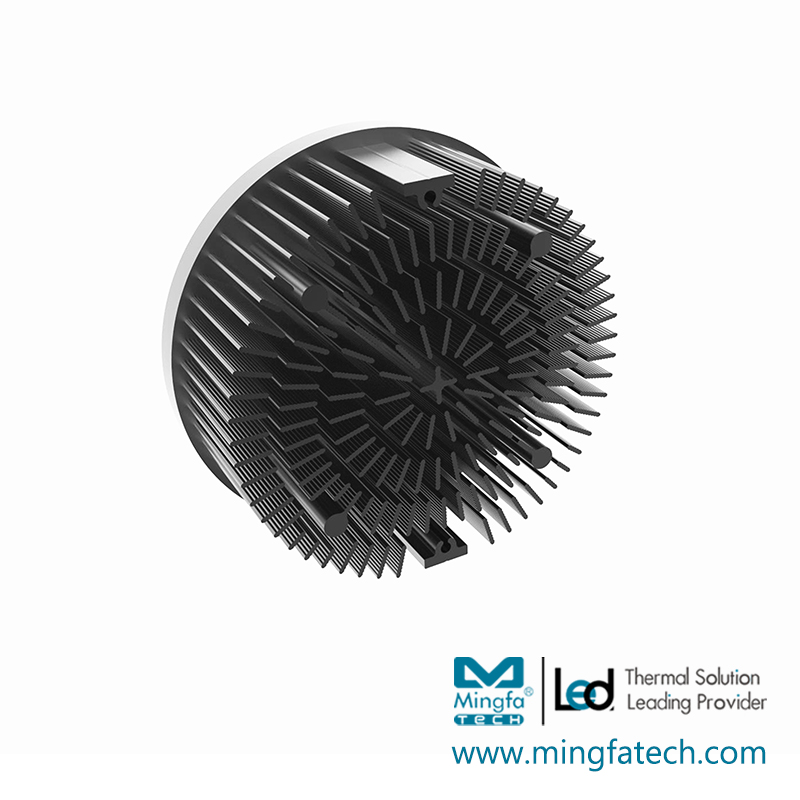

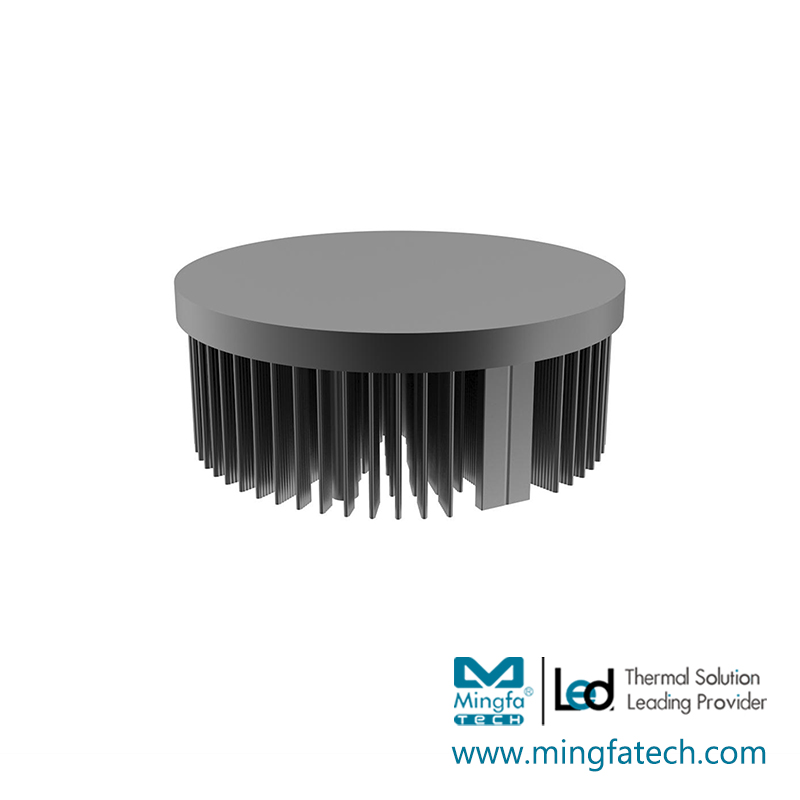

xLED-13030/13050/13080/130100 led pin fin coolers smd heat sink

Click on the image to view the original image

Product：	views：18xLED-13030/13050/13080/130100 led pin fin coolers smd heat sink
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-09-03 08:45

Product Details

PRODUCT VIDEO

SPECIFICATIONS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

PRODUCT VIDEO

Brand	Mingfa Tech
Series Name	xLED passive heat sinks
Seriest Number	xLED-130
Manufacturing Technology	Cold forging
Material	AL1070
Color & Finishing	Black Anodized & Clear Anodized
Certification	CE, ROHS, WEEE
Diameter(mm)	Φ130
Height(mm)	30.0	50.0	80.0	100.0
Item Number	xLED-13030	xLED-13050	xLED-13080	xLED-130100
Max. Lumen	4600 Im	6700 Im	8400 Im	9100 Im
Dissipated Power (Ths-amb,50°C)	33.0 W	48.0 W	60.0 W	65.0 W
Thermal Resistance Rth（°C/W)	1.5°C/W	1.0°C/W	0.8°C/W	0.7°C/W
Cooling Surface Area (mm²)	103277 mm²	175923 mm²	284892 mm²	357538 mm²
Net Weight (g)	492.0 g	625.0 g	825.0 g	958.0 g
Quantity(pcs/CTN)	40 pcs	24 pcs	16 pcs	12 pcs
Modular Types	SMD	SMD	SMD	SMD
For Environments	Indoor area，Outdoor area
For Lightings	Down lights,Flood lights,Street lights,Architectural lights,Horticulture lights,Area Lights
For Application	Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brands	Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

04

With dissipation surface 40% more than traditional heatsink.
05

High-end cooling products designed for Spot light, Down light and Track light.
06

Solid bottom plate can meet IP65-IP67.
