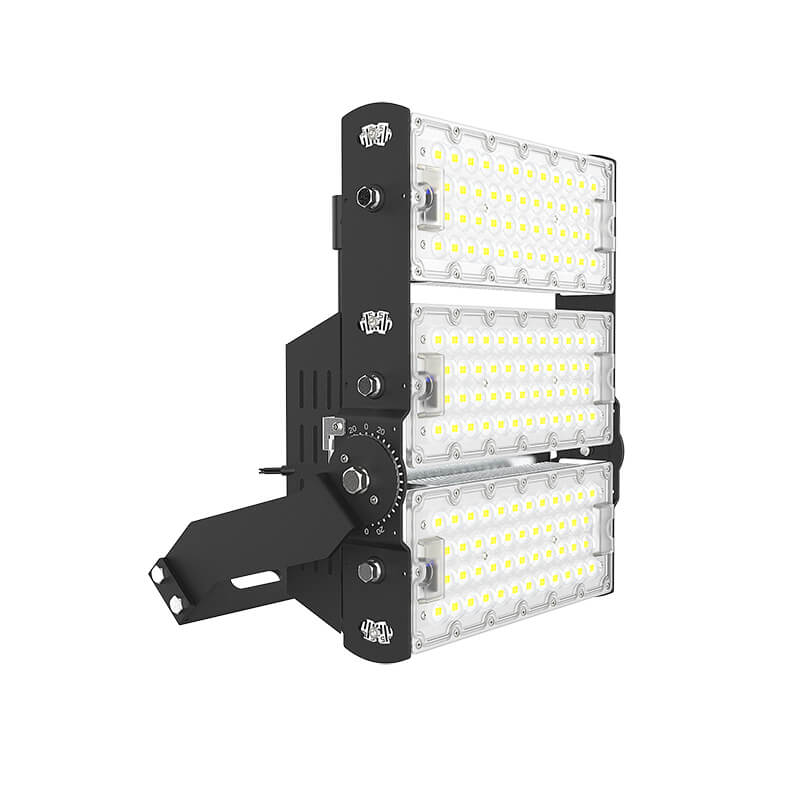

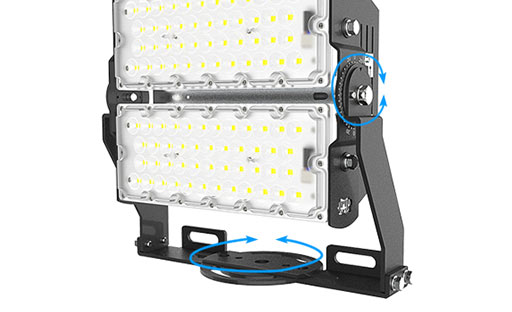

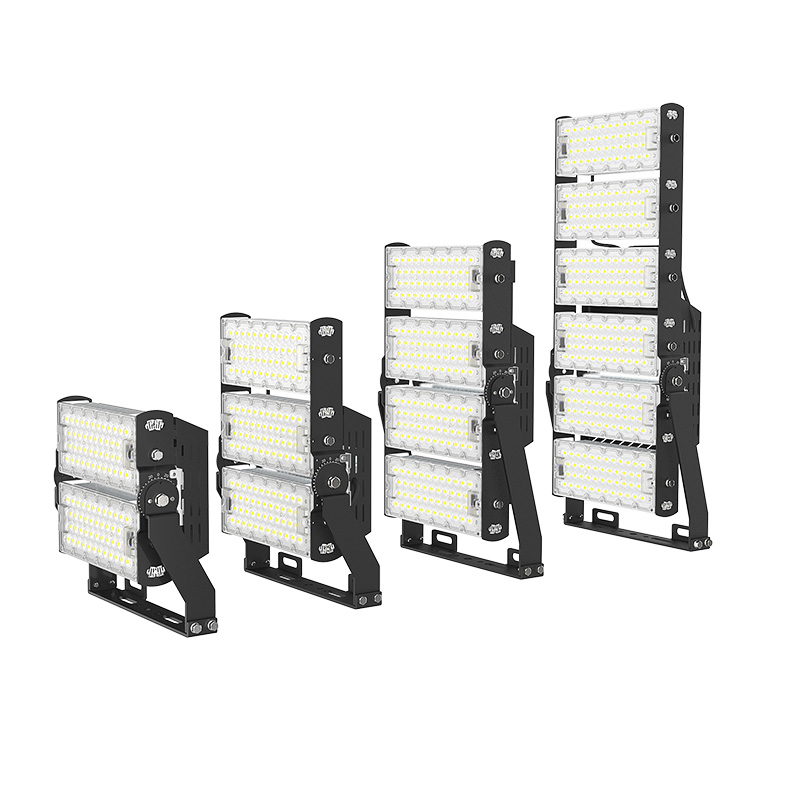

LED Stadium light/Spot light/High mast light can be used as LED flood light,sport light and tunnel light.Rotatable Multi-Modular.150-160lm/W ultra efficient.
◆ PRODUCT PARAMETER
| Data Specifications | TFL-A series | |||
| Power | 240W | 300W | 480W | 720W |
| Input Voltage | AC100-180V : 192W; AC200-305V : 240W; 50/60Hz | AC100-180V : 240W; AC200-305V : 300W; 50/60Hz | AC100-180V : 384W; AC200-305V : 480W; 50/60Hz | AC100-180V : 576W; AC200-305V : 720W; 50/60Hz |
| Output Voltage | DC45-48V | |||
| color temperature | 2800-3200 /4000-4500 /5500-6000K | |||
| CRI | Ra>70 & Ra>80 | |||
| Average Beam angle(50%) | 8°/20°/40°/60°/90°/120°/140X100° | |||
| Light Efficiency | whole lamp output 145-155lm/w | |||
| Lumens | 240W：36000lm | 300W：45000lm | 480W：72000lm | 720W：108000lm |
| LED | 90pcs(Cree XPG3) for 8° /92pcs(Philips SMD 5050) for 20°,40°/368pcs(Philips SMD 3030) for 60°,90°,120°,140°x100° | 135pcs(Cree XPG3) for 8° /138pcs(Philips SMD 5050) for 20°,40°/552pcs(Philips SMD 3030) for 60°,90°,120°,140°x100° | 180pcs(Cree XPG3) for 8° /184pcs(Philips SMD 5050) for 20°,40°/736pcs(Philips SMD 3030) for 60°,90°,120°,140°x100° | 270pcs(Cree XPG3) for 8° /276pcs(Philips SMD 5050) for 20°,40°/1104pcs(Philips SMD 3030) for 60°,90°,120°,140°x100° |
| Driver | MEANWELL ELG-240-48 | MEANWELL ELGC-300-48 | MEANWELL ELG-240-48*2 | MEANWELL ELG-240-48*3 |
| UGR | 20 | |||
| Power Factor(Typ) | ≥0.95 | |||
| Operating Temperature | （-40～70 ℃）(Lowest operation temp -40°C, and highest 70°C) | |||
| Ip rate | the waterproof grade IP65 ,can work outdoor under rain | |||
| Life Span | 50000Hrs (L70B50>50,000hrs) | |||
| Main Materials | High purity aluminum+LED+PC lens | |||
| Operating Humidity | 20%～90% | |||
| Storage Temperature | (-40～80 ℃) | |||
| Lumen Maintenance | >85%（5000Hrs） | |||
| Others | ||||
| Warranty | 5 years | |||
| Lux on 5 meter | 7195lx (lux at ground from 5m high) | 9666lx (lux at ground from 5m high) | 14523lx (lux at ground from 5m high) | 21575lx (lux at ground from 5m high) |
| Lux on 10 meter | 1799lx (lux at ground from 10m high) | 2416lx (lux at ground from 10m high) | 3631lx (lux at ground from 10m high) | 5394lx (lux at ground from 10m high) |
| Temperature on housing Max | 66.5°C (Test environment temperature 25 °C) | 66.2 °C (Test environment temperature 25 °C） | 75 °C (Test environment temperature 25 °C） | 65.6 °C (Test environment temperature 25 °C） |
| Temperature on LED Max | 73.5 °C (Test environment temperature 25 °C） | 70.6 °C (Test environment temperature 25 °C） | 85.7 °C (Test environment temperature 25 °C） | 84.2°C (Test environment temperature 25 °C） |
| Temperature on Driver Max | 59.9°C (Test environment temperature 25 °C） | 61.4 °C (Test environment temperature 25 °C） | 65.8 °C (Test environment temperature 25 °C） | 58.5 °C (Test environment temperature 25 °C） |
| Net weight | 4.5 Kgs (without package) | 7 Kgs (without package) | 11 Kgs (without package) | 16.5 Kgs (without package) |
| Gross Weight(Kgs) | 6 Kgs (with package) | 8.5 Kgs (with package) | 14 Kgs (with package) | 19 Kgs (with package) |
| Package Size | 410x385x175mm | 515x410x175mm | 640x410x175mm | 910x420x175mm |

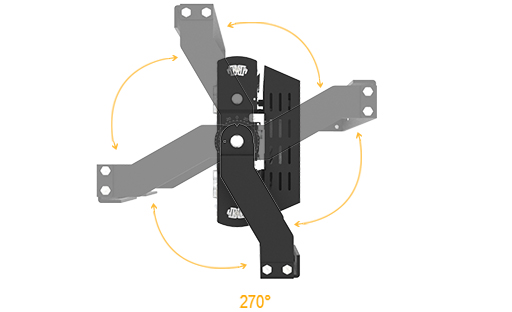

| Installations | U-Bracket | |||

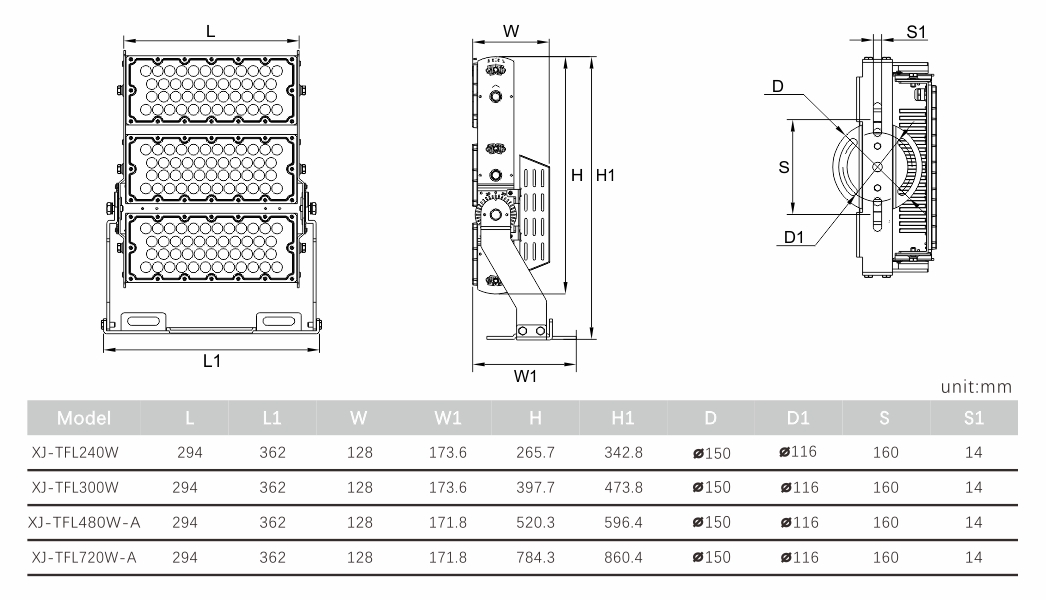

◆ PRODUCT SIZE

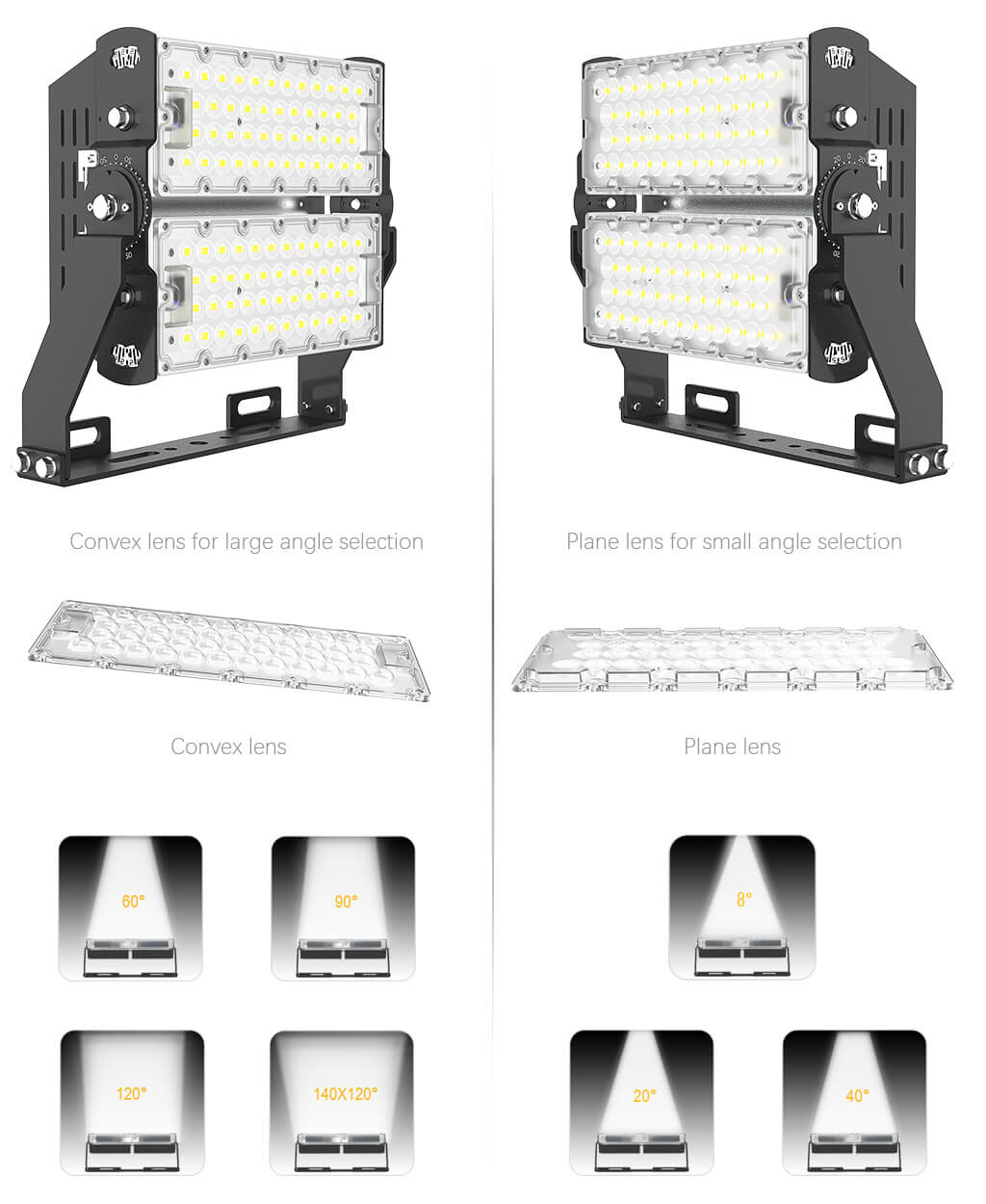

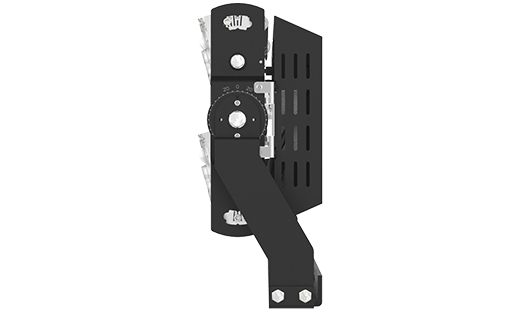

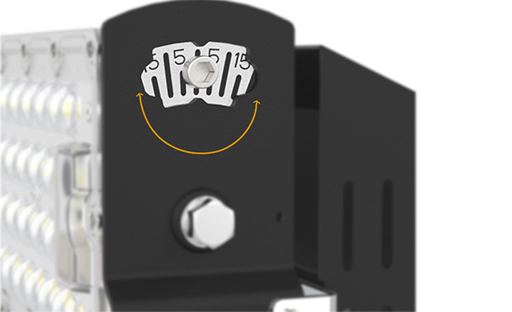

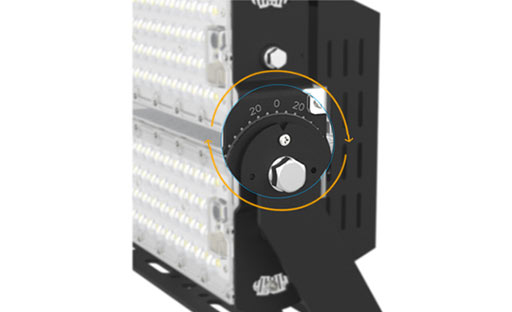

◆ PRODUCT DETAILS

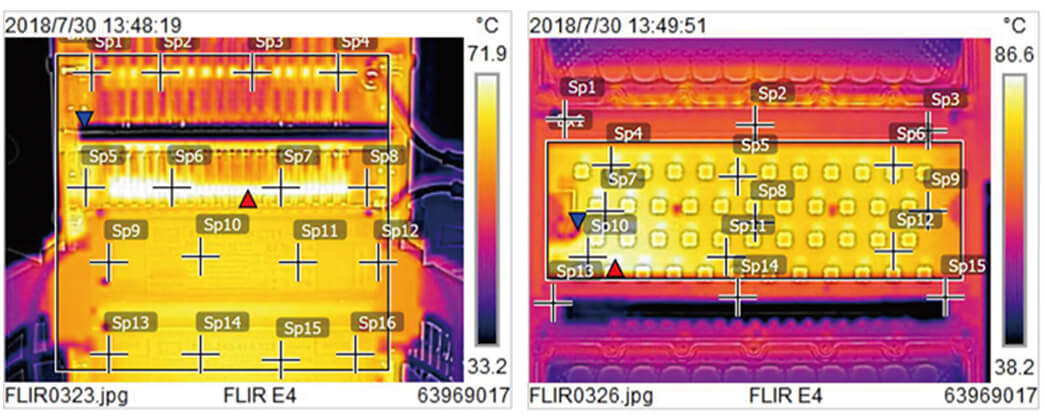

◆ THERMAL PRESENTATION

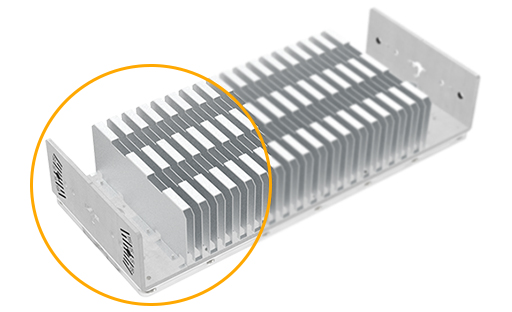

The combination of high thermal conductivity materials.The whole lamp is tested by thermal radiation: TFL- 480W-A The lowest operating temperature of the radiator is 33 degrees, the highest temperature is 72 degrees, the lowest operating temperature of the LED light source is 38 degrees, the highest temperature is 87 degrees, the whole product greatly improved the life and stability.

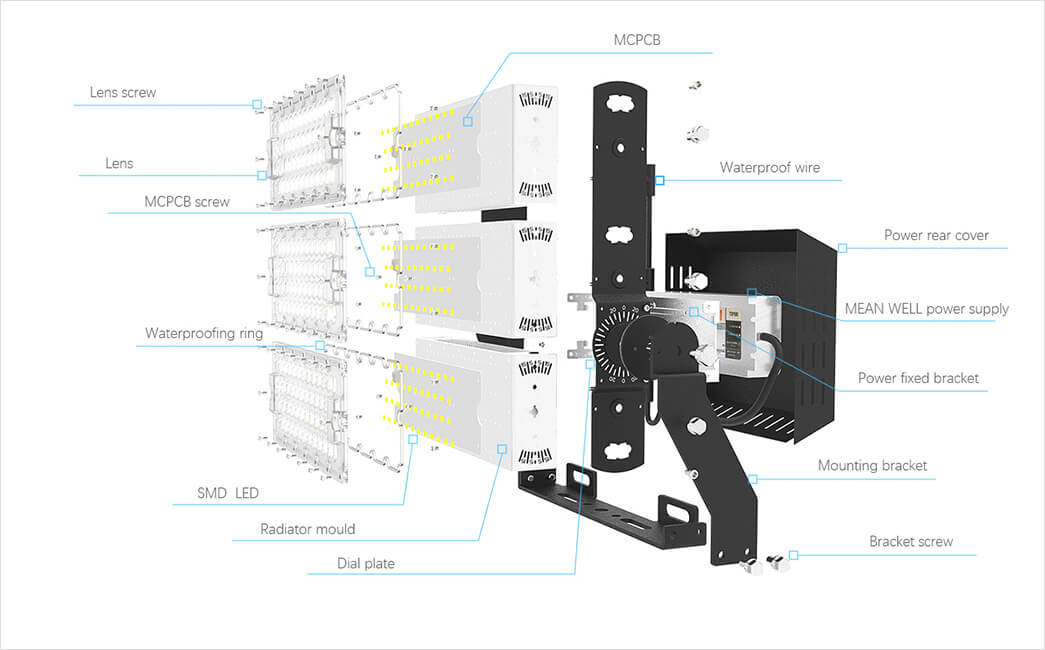

◆ PRODUCT EXPLOSIVE VIEW

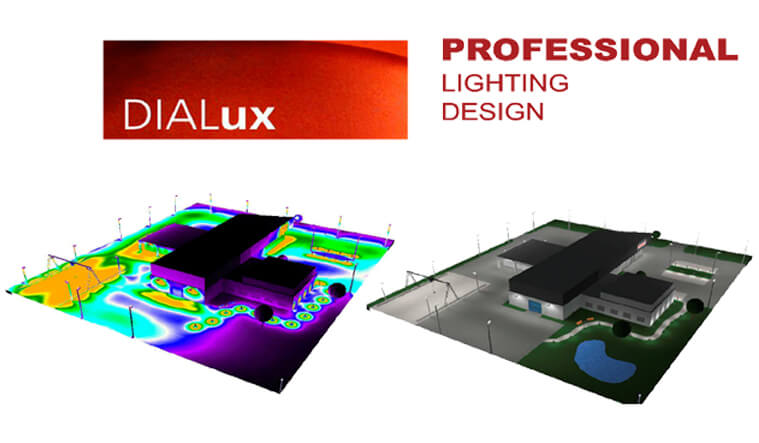

◆ PROFESSIONAL LIGHTING DESIGN
◆ FREE LIGHTING DESIGN
SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.
