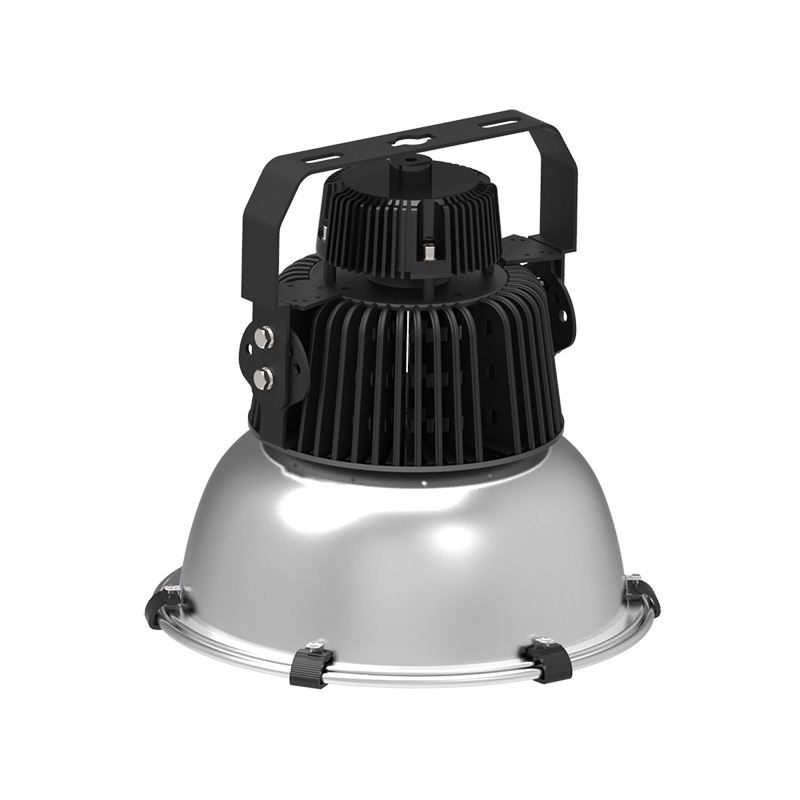

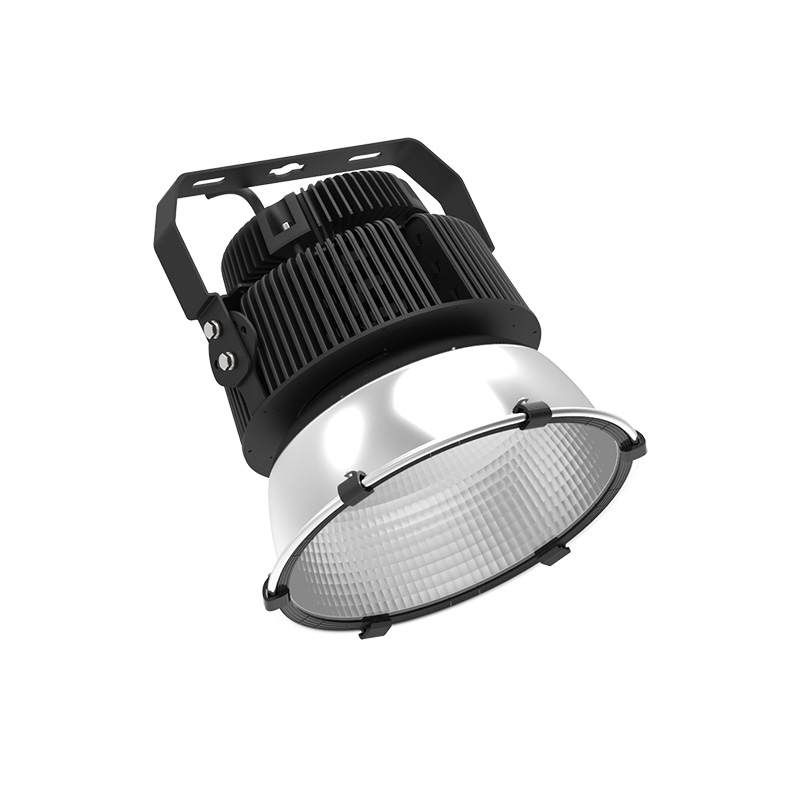

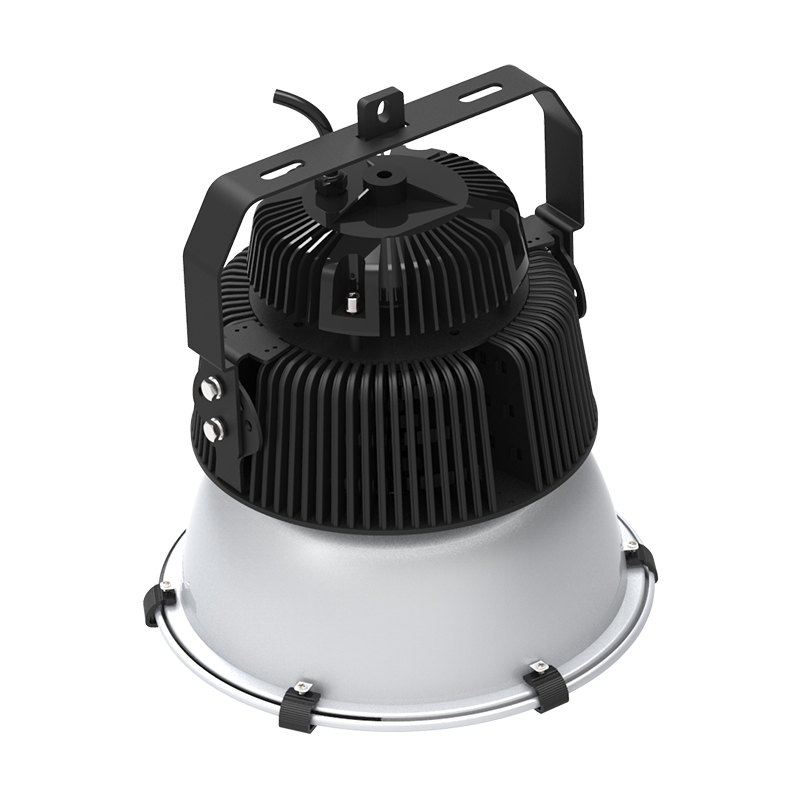

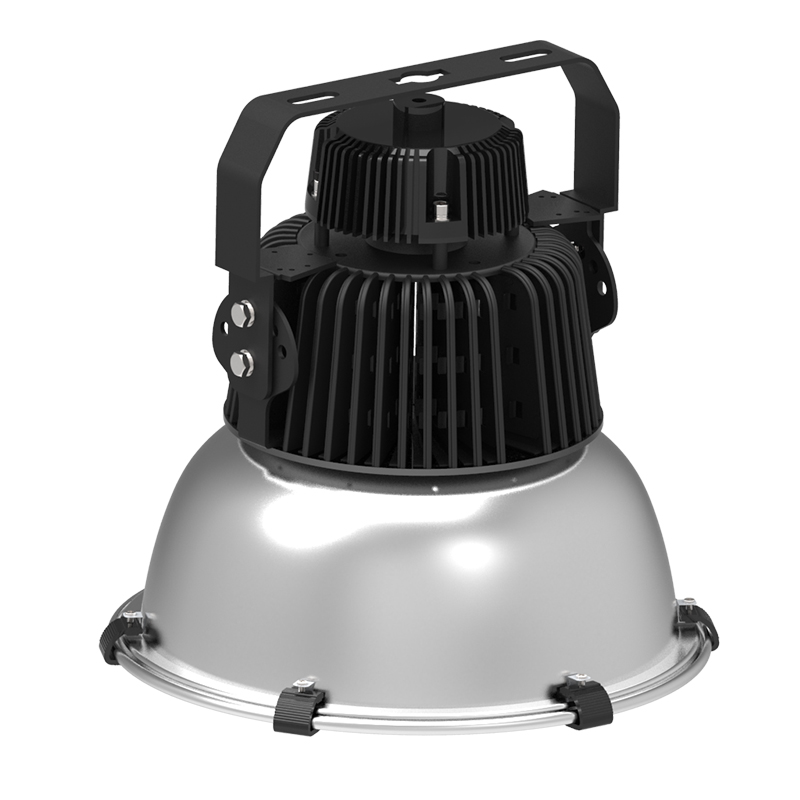

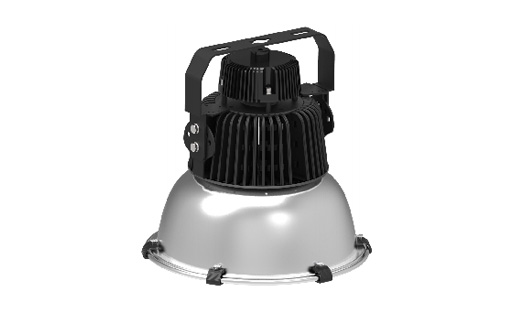

HBS-2 series (regular) high bay is designed to replace traditional HPS,HID or Metal Halide high bays,with very small size,compact size and high lumen output,soon became popular since face market.
--Fins heat sink system,fast heat dissipation.
--Bigger PCB and more LEDs,resolve heat dissipation for light source.
--High Output 130~140 lm/W.

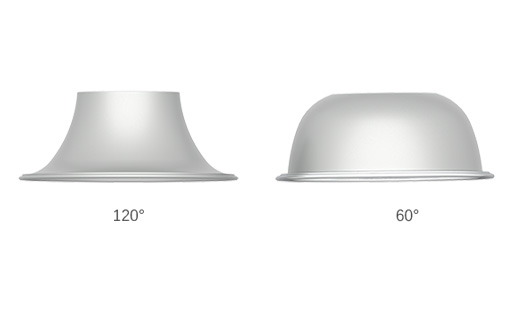

--Different beam angle for different heights and applications.
--Wide application:Car Park,Industrial Plants,Workshops,Warehousing,Food Industry,ect..
--IP65 and 5 years warranty.
◆ PRODUCT PARAMETER
| Data Specifications | HBS-2 series | ||
| Power | 80W/100W | 130W/150W | 200W/240W |
| Input Voltage | AC90-305V 50/60Hz | ||
| Output Voltage | DC40-45V | ||
| color temperature | 2800-3200 /4000-4500 /5500-6000K | ||
| CRI | Ra>70 & Ra>80 | ||
| Average Beam angle(50%) | 25°/45°/60°/90°/120° | ||
| Light Efficiency | whole lamp output 140-150lm/w | whole lamp output 140-150lm/w | whole lamp output 140-150lm/w |
| Lumens | 80W：11600lm； 100W：14500lm | 130W：18850lm； 150W：21750lm | 200W：29000lm； 240W：34800lm |
| LED | 140 ( Tiandian 3030) pcs | 231 ( Tiandian 3030) pcs | 364 ( Tiandian 3030) pcs |
| Driver | MeanWell HBG-100-48A/B | MeanWell HBG-150-48A/B | MeanWell HBG-240-48A/B |
| UGR | <20 (Lower UGR, Higher comfortable) | ||
| Power Factor(Typ) | ≥0.95 | ||
| Operating Temperature | （-40～70 ℃）(Lowest operation temp -40°C, and highest 70°C) | ||
| Ip rate | the waterproof grade IP65 ,can work outdoor under rain | ||
| Life Span | 50000Hrs (L70B50>50,000hrs) | ||
| Main Materials | Aluminum, LED,Plastic | ||
| Operating Humidity | 20%～90% | ||
| Storage Temperature | (-40～80 ℃) | ||
| Lumen Maintenance | >85%（5000Hrs） | ||
| Others | |||
| Replace Traditional lamp | 80W≥200W； 100W≥250W(HPS, MH, HID) | 130W≥400W； 150W≥600W(HPS ,MH, HID) | 200W≥800W； 240W≥1000W(HPS, MH, HID) |
| Energy Saving | about 60% | about 75% | about 76% |
| Lux on 5 meter | 80W=253.07lx； 100W=357.14lx (lux at ground from 5m high) | 130W=437.23lx； 150W=488.79lx (lux at ground from 5m high) | 200W=632.94lx； 240W=759.16lx (lux at ground from 5m high) |
| Lux on 10 meter | 80W=63.27lx； 100W=89.29l x(lux at ground from 10m high) | 130W=109.31lx； 150W=122.20lx (lux at ground from 10m high) | 200W=158.24lx； 240W=189.79lx (lux at ground from 10m high) |
| Temperature on housing Max | 80W=51.7°C； 100W=51.7°C (Test environment temperature 25 °C) | 130W=57.9 °C； 150W=60.4 °C (Test environment temperature 25 °C) | 200W=62.3 °C； 240W=64.5 °C (Test environment temperature 25 °C) |
| Temperature on LED Max | 80W=63.8 °C； 100W=63.8 °C (Test environment temperature 25 °C） | 130W=73.4 °C； 150W=78.5 °C (Test environment temperature 25 °C） | 200W=78.5°C； 240W=80.2 °C (Test environment temperature 25 °C） |
| Temperature on Driver Max | 80W=51.4 °C； 100W=52.4°C (Test environment temperature 25 °C） | 130W=54.8 °C； 150W=58.2 °C (Test environment temperature 25 °C） | 200W=60.6 °C； 240W=62.3 °C (Test environment temperature 25 °C） |
| Net weight | 5.2 Kgs (without package) | 5.2 Kgs (without package) | 6 Kgs (without package) |
| Gross Weight(Kgs) | 7.3 Kgs (with package) | 7.7 Kgs (with package) | 8.5 Kgs (with package) |
| Package Size | 410x410x430mm | 410x410x430mm | 410x410x430mm |

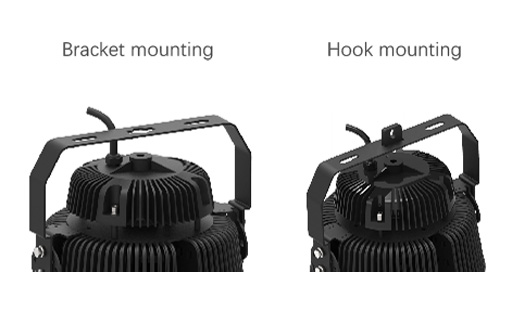

| Installations | Hooker / U shape Bracket | ||

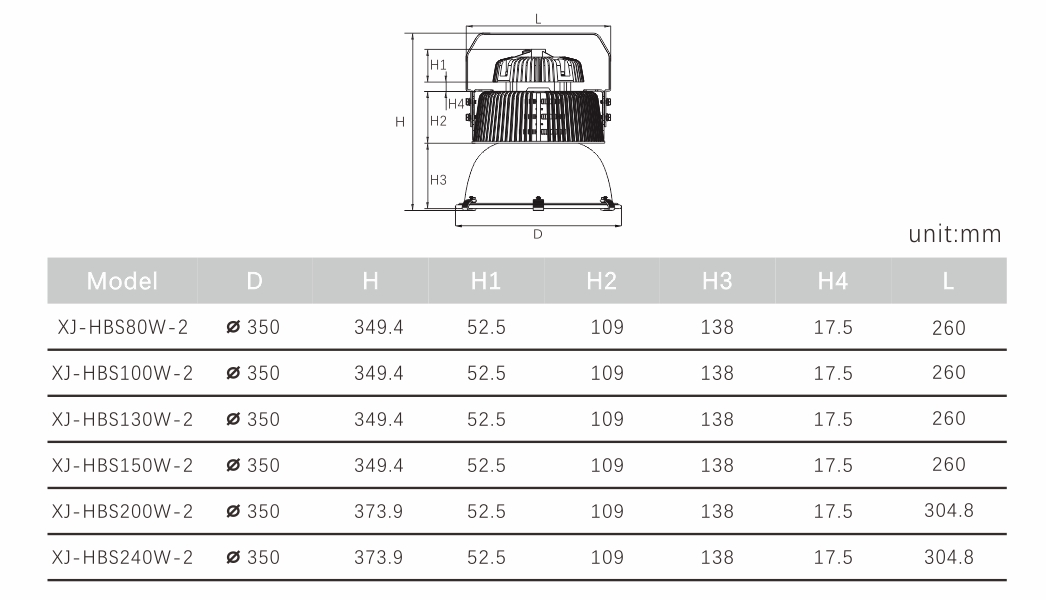

◆ PRODUCT SIZE
◆ PRODUCT DETAILS

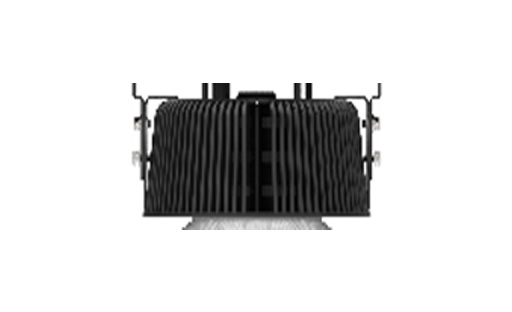

Each fin is equally spaced and tightly buckled to form a whole, which effectively strengthens the fin solidity and achieves the maximum heat dissipation area with a minimum weight.
There are convection holes parallel distributed on each cooling fins, forming a convection air duct,together with the gaps between the fins to maximize the heat dissipation.

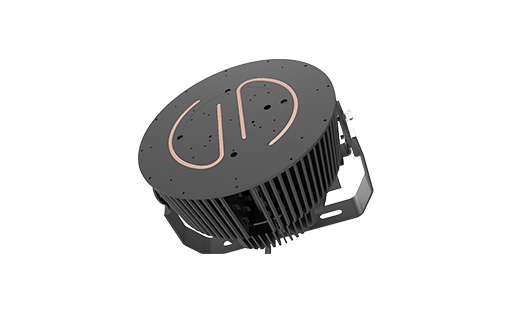

With heat pipes under te back of the LED,the heat is taken to the fins of heat sink quickly and evenly.
◆ THERMAL PRESENTATION

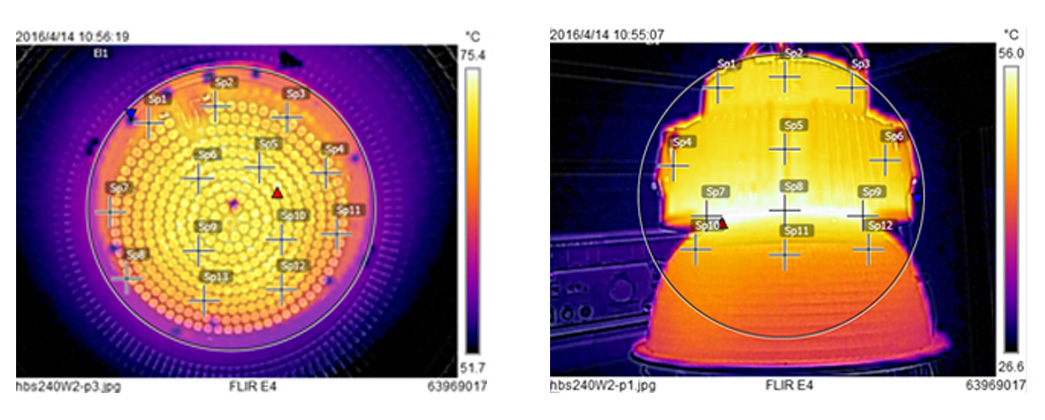

The combination of high thermal conductivity materials.The whole lamp is tested by thermal radiation: HBS- 240W The lowest operating temperature of the radiator is 27 degrees, the highest temperature is 56 degrees, the lowest operating temperature of the LED light source is 51 degrees, the highest temperature is 75 degrees, the whole product greatly improved the life and stability.

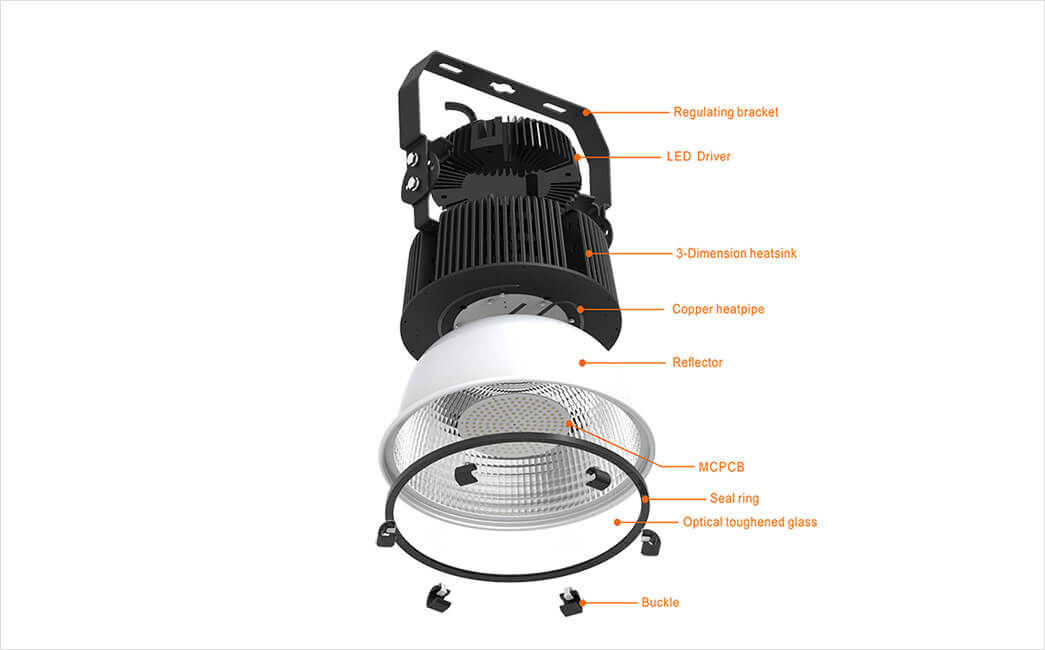

◆ PRODUCT EXPLOSIVE VIEW

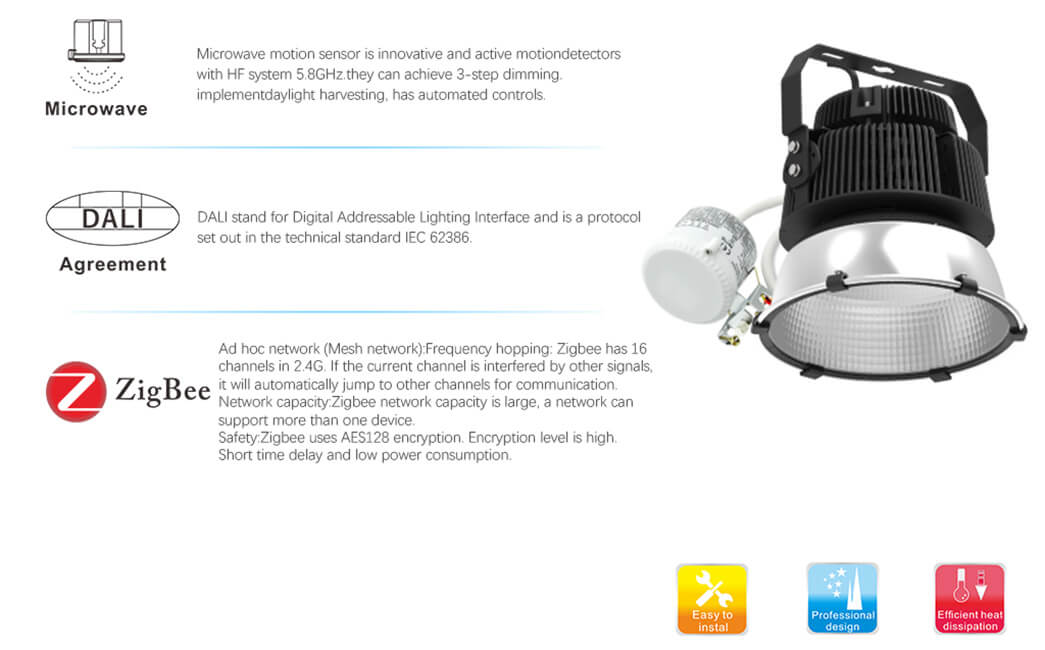

◆ PRODUCT FUNCTION APPLICATION

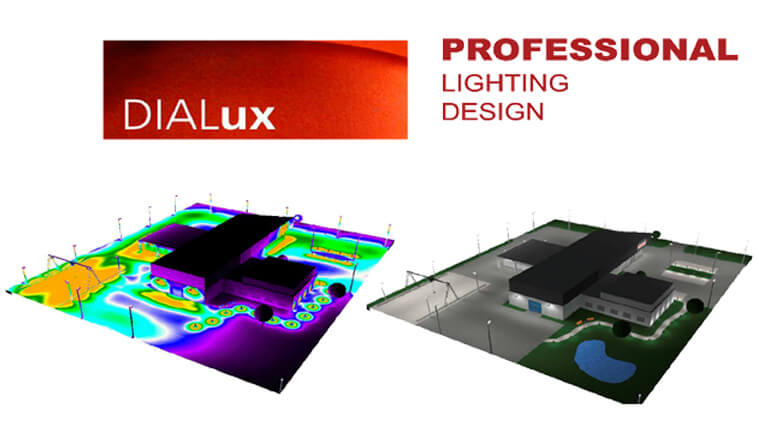

◆ FREE LIGHTING DESIGN
SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.
