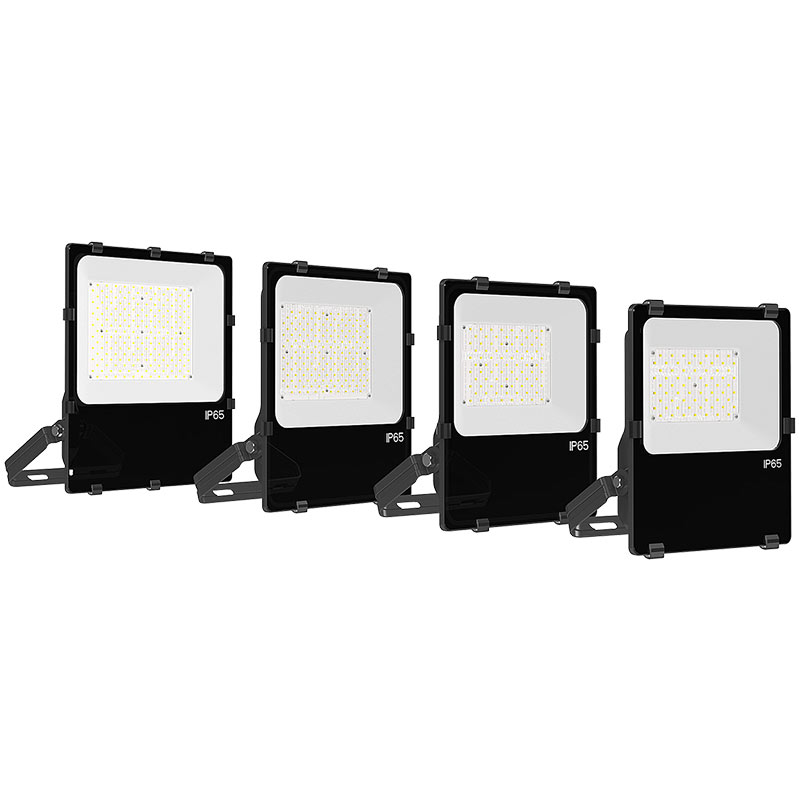

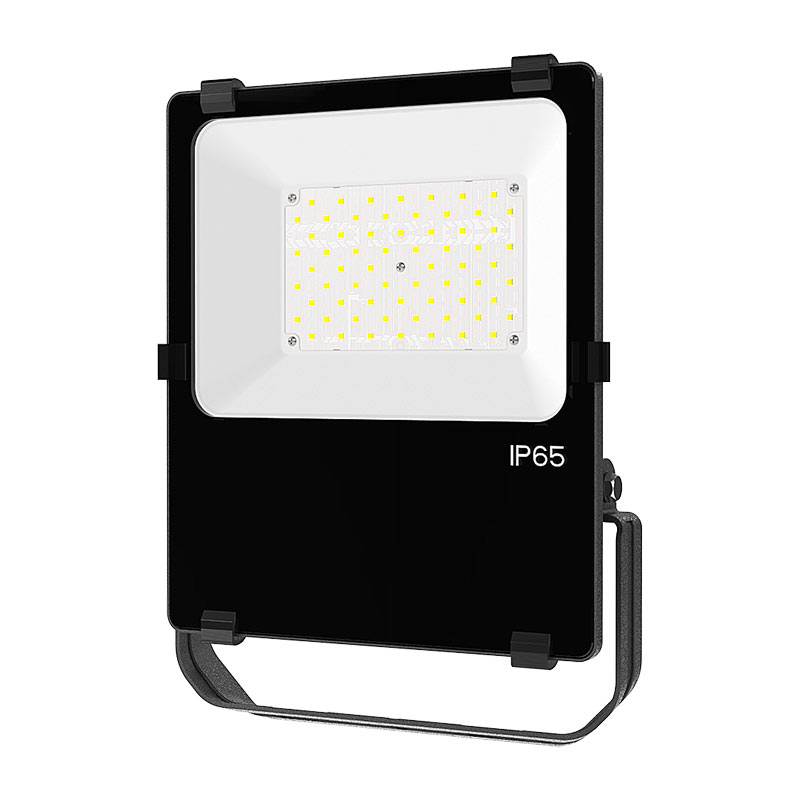

LED Stadium light/Spot light/High mast light can be used as LED flood light,sport light and tunnel light.Rotatable Multi-Modular.150-160lm/W ultra efficient.
◆ PRODUCT PARAMETER
| Data Specifications | FLA-2 series | ||||
| Power | 50W | 70W | 100W | 150W | 200W |
| Input Voltage | AC100-305V ：50W； 50/60Hz | AC100-305V ：70W； 50/60Hz | AC100-180V ：80W； AC200-305V ：100W； 50/60Hz | AC100-180V ：120W； AC200-305V ：150W； 50/60Hz | AC100-180V ：160W； AC200-305V ：200W； 50/60Hz |
| Output Voltage | DC45-48V | ||||
| color temperature | 2700-3200K / 4000-4500 / 5500-6000K | ||||
| CRI | Ra>70 & Ra>80 | ||||
| Average Beam angle(50%) | 120° | ||||
| Light Efficiency | whole lamp output 145-155lm/w | ||||
| Lumens | 50W：7500lm | 70W：10500lm | 100W：15000lm | 150W：22500lm | 200W：30000lm |
| LED | 150(Tiandian SMD 2835) pcs | 210(Tiandian SMD 2835) pcs | 320(Tiandian SMD 2835) pcs | 450(Tiandian SMD 2835) pcs | |
| Driver | SOSEN SS-50H-54 | SOSEN SS-75E-58 | MEANWELL ELG-100-48 | MEANWELL ELG-150-48 | MEANWELL ELG-240-48 |
| UGR | 20 | ||||
| Power Factor(Typ) | ≥0.95 | ||||
| Operating Temperature | （-40～70 ℃）(Lowest operation temp -40°C, and highest 70°C) | ||||
| Ip rate | the waterproof grade IP65 ,can work outdoor under rain | ||||
| Life Span | 50000Hrs (L70B50>50,000hrs) | ||||
| Main Materials | High purity aluminum+LED+PC lens | ||||
| Operating Humidity | 20%～90% | ||||
| Storage Temperature | (-40～80 ℃) | ||||
| Lumen Maintenance | >85%（5000Hrs） | ||||
| Others | |||||
| Replace Traditional lamp | 125W HPS ,MH, HID | 175W HPS ,MH, HID | 250W HPS ,MH, HID | 375W HPS ,MH, HID | 500W HPS ,MH, HID |
| Energy Saving | 40% | ||||
| Lux on 5 meter | 45.34lx (lux at ground from 5m high) | 53.91lx (lux at ground from 5m high) | 64.87lx (lux at ground from 5m high) | 102.6lx (lux at ground from 5m high) | 130.7lx (lux at ground from 5m high) |
| Lux on 10 meter | 11.34lx (lux at ground from 10m high) | 13.48lx (lux at ground from 10m high) | 16.22lx (lux at ground from 10m high) | 25.64lx (lux at ground from 10m high) | 32.67lx (lux at ground from 10m high) |
| Temperature on housing Max | 60.8°C (Test environment temperature 25 °C） | 62.6 °C (Test environment temperature 25 °C） | 65.8 °C (Test environment temperature 25 °C） | 75.0 °C (Test environment temperature 25 °C） | 76.7 °C (Test environment temperature 25 °C） |
| Temperature on LED Max | 75.7°C (Test environment temperature 25 °C） | 68.0 °C (Test environment temperature 25 °C） | 68.1 °C (Test environment temperature 25 °C） | 77.1 °C (Test environment temperature 25 °C） | 82.0°C (Test environment temperature 25 °C） |
| Temperature on Driver Max | 70.8°C (Test environment temperature 25 °C） | 68.6 °C (Test environment temperature 25 °C） | 68.2 °C (Test environment temperature 25 °C） | 71.5 °C (Test environment temperature 25 °C） | 70.1 °C (Test environment temperature 25 °C） |
| Net weight | 2.6 Kgs (without package) | 2.8 Kgs (without package) | 3.5 Kgs (without package) | 4 Kgs (without package) | 4.6 Kgs (without package) |
| Gross Weight(Kgs) | 14 kg/carton(5 pcs) | 15 kg/carton(5 pcs) | 4.5 kg/carton(1 pcs) | 5 kg/carton(5 pcs) | 5.6 kg/carton(5 pcs) |
| Package Size | 395x350x100mm | 395x350x100mm | 440x355x102mm | 490x390x102mm | 530x435x102mm |
| Installations | U-Bracket | ||||

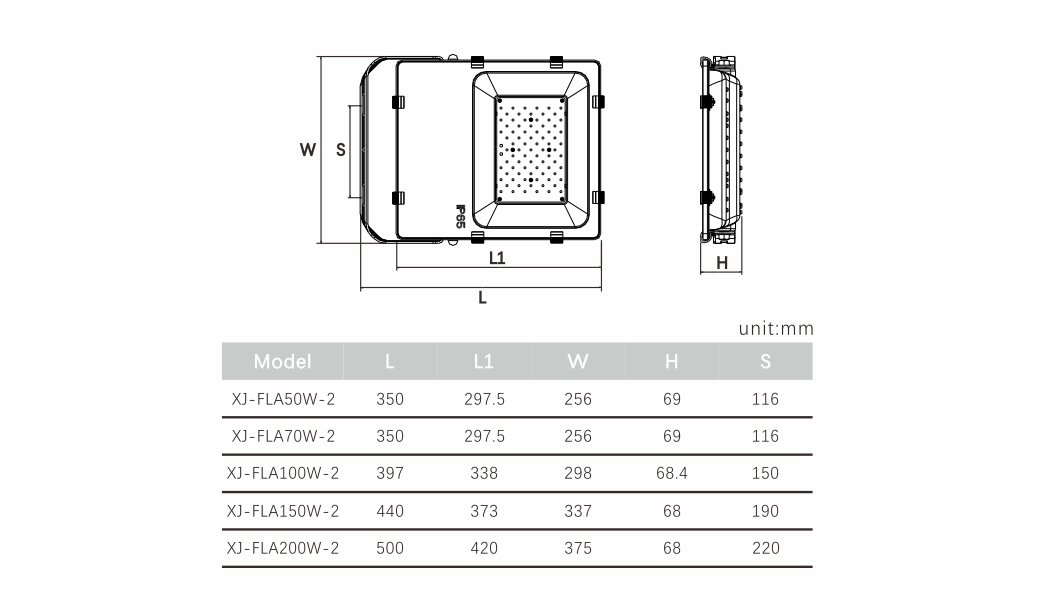

◆ PRODUCT SIZE

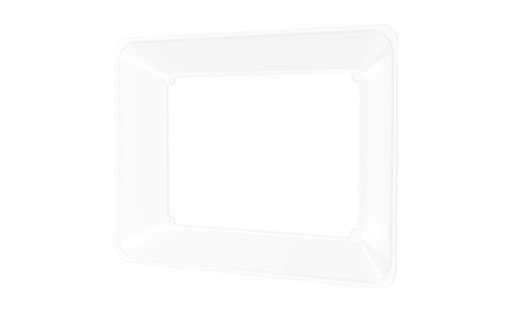

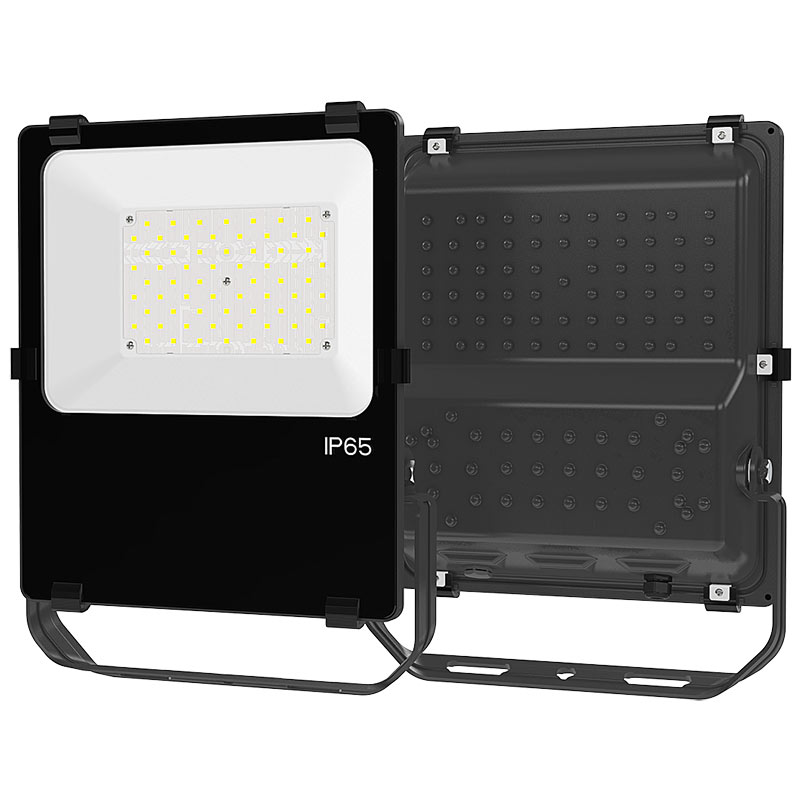

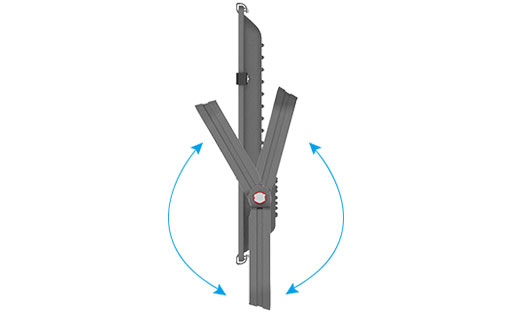

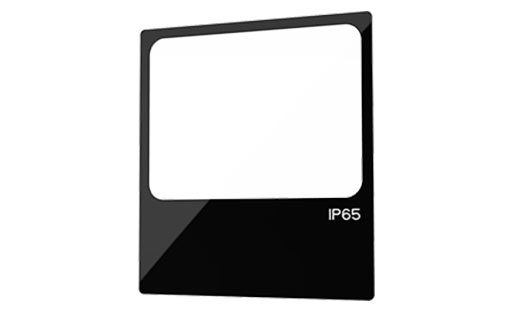

◆ PRODUCT DETAILS

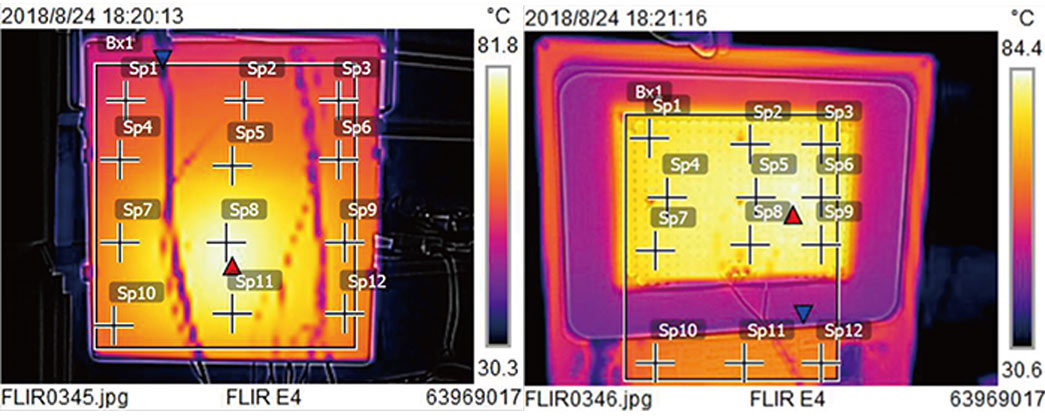

◆ THERMAL RADIATION TEST
The combination of high thermal conductivity materials.The whole lamp is tested by thermal radiation: TFL- 200W-2 The lowest operating temperature of the radiator is 30 degrees, the highest temperature is 82 degrees, the lowest operating temperature of the LED light source is 30.6 degrees, the highest temperature is 84 degrees, the whole product greatly improved the life and stability.
◆ PRODUCT EXPLOSIVE VIEW
◆ PRODUCT FUNCTION APPLICATION

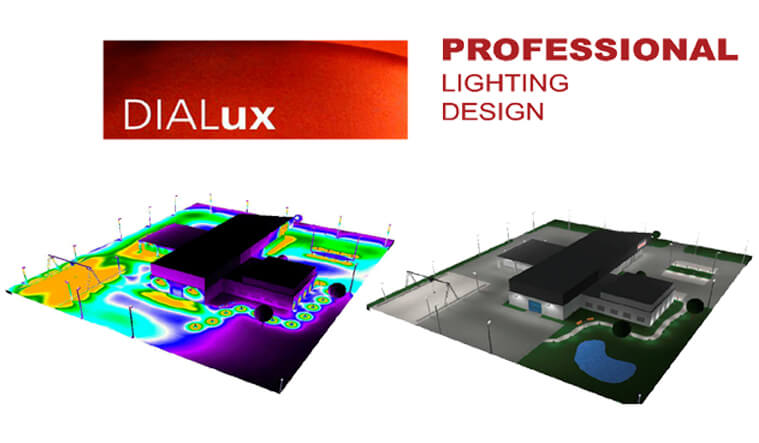

◆ FREE LIGHTING DESIGN
SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.
