6W LED Windows Wall Washer Light IP65 Waterproof low voltage
Click on the image to view the original image
Product： views：66W LED Windows Wall Washer Light IP65 Waterproof low voltage
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-09-03 08:45
  Negotiated
Product Details

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage

   ◆  Product description

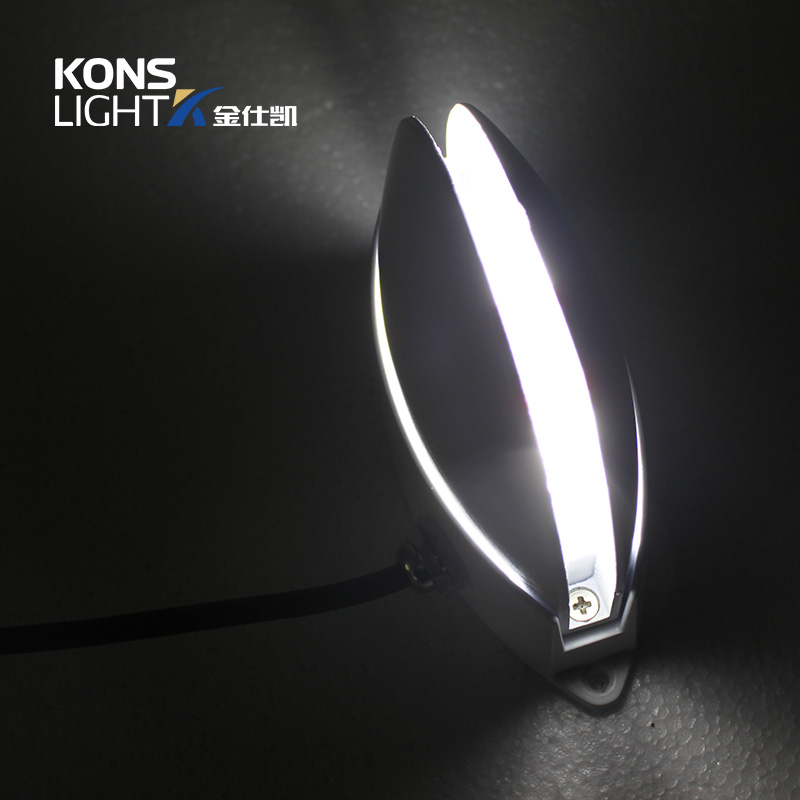

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage-1

▶ High efficiency,low energy consumption.

▶ Good quality beam.

▶ Long life span 50000hours.

▶ Flexible control. Dimming by changing the current

▶ Ecological.The waste can be recycled.  No pollution and mercury

   ◆  Performance Specifications

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage-2

Dimension

150mm x 60mm x 100mm

Chip

CREE/PHILIPS/LUMILEDS/Samsung/Epistar

Beam angle

120°

Colours

3000K

Bin/Step

3

CRI

≥80

Lifetime

50,000 hours

Operating temp

Ta=-25 to 60℃（Tc max=70℃）

IP Rating

TIp65

Power consumption

6W

Supply voltage

DC24V

Supply current

0.25A

   ◆  LIGHT DISTRBUTION CURVE

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage-3

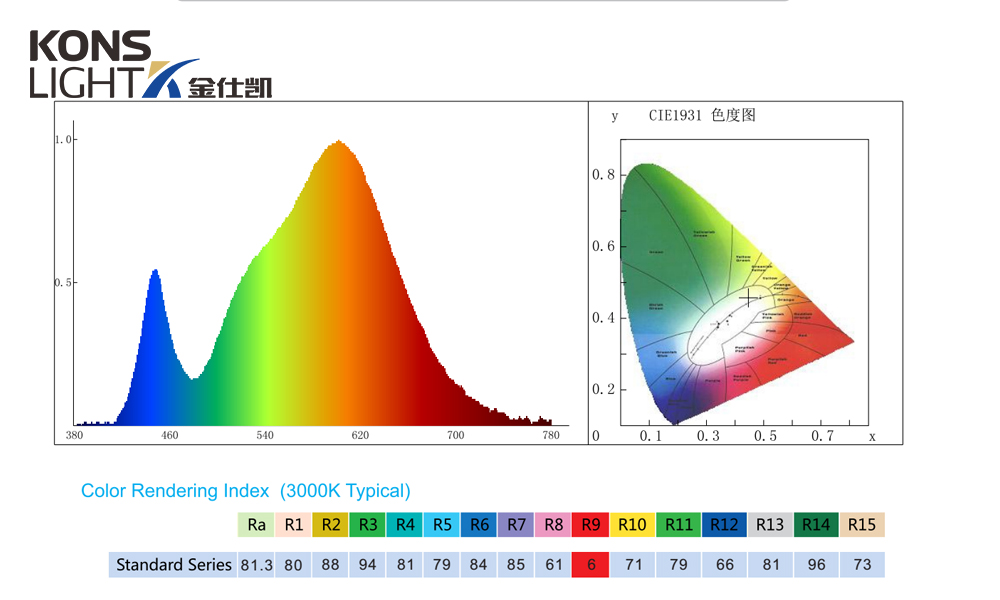

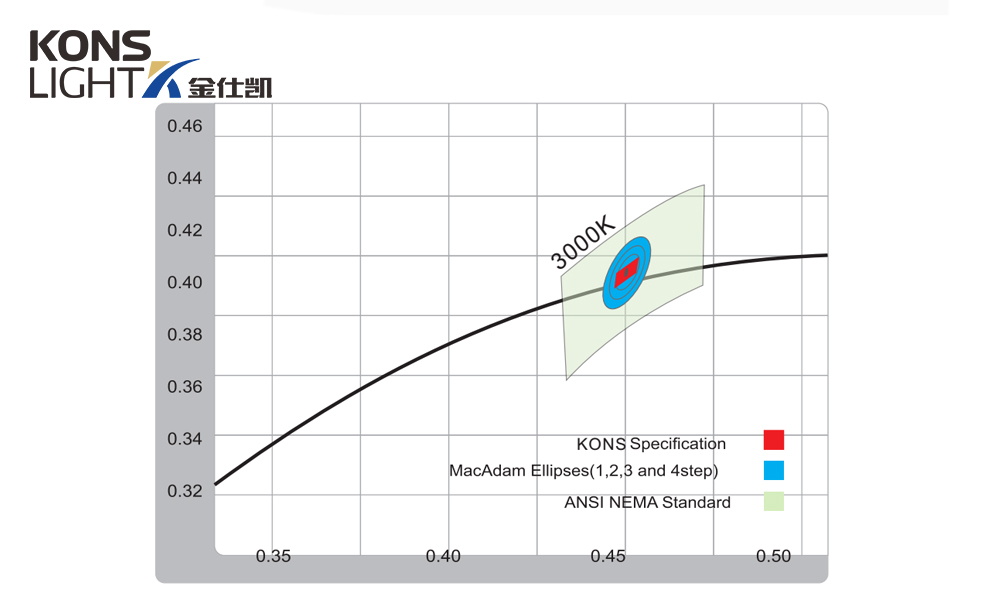

   ◆  Color information

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage-4

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage-5

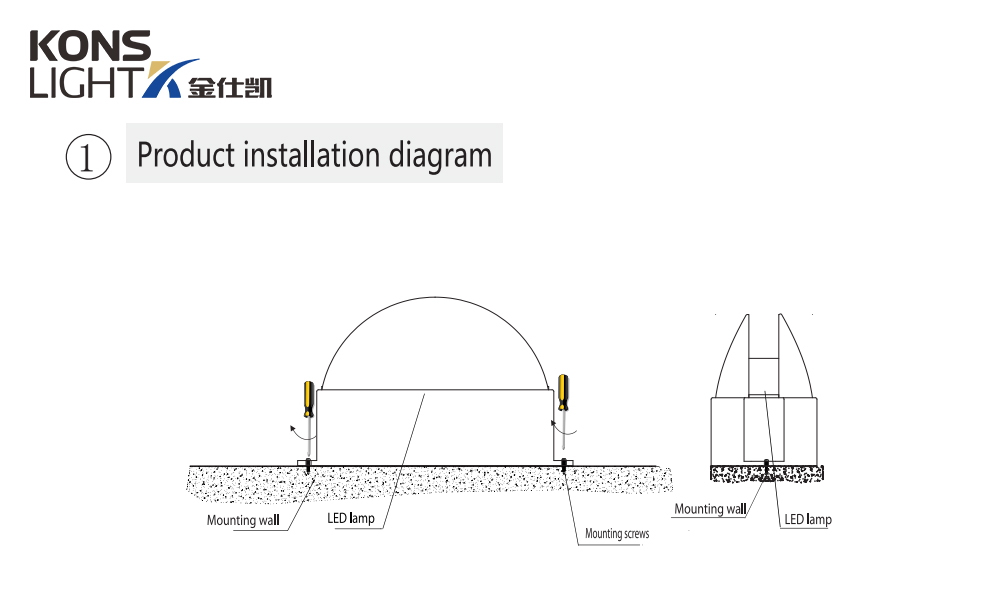

   ◆  installation

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage-6

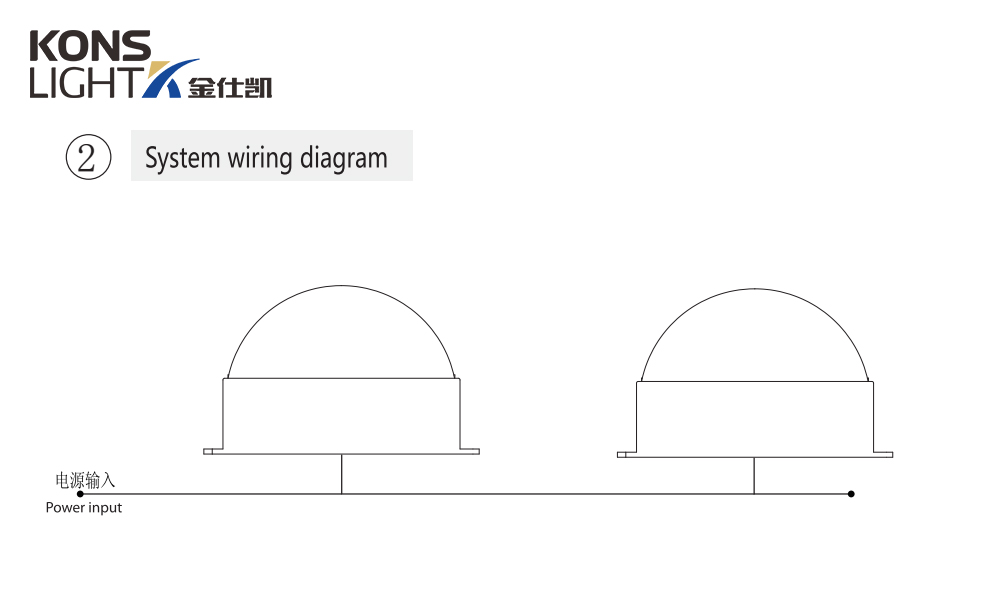

Kons-6w Led Windows Wall Washer Light Ip65 Waterproof Low Voltage-7


   ◆  notes


  • ▍ This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of theproduct and the hazards involved.

  • ▍ Do not attempt to install or use a fixture until you read and understand the installation instructions and safety labels.

  • ▍ Fixtures have line voltage risk of shock and no user serviceable parts. Do not attempt to open them.

  • ▍ Do not hot swap fixtures. Ensure that power to the series is off before connecting or disconnecting individual fixtures.

  • ▍ Do not use a fixture if the lens, housing, or power cables are damaged.

  • ▍ Do not use a fixture for any voltage for which it is not rated. Do not exceed the specified voltage and current input for any fixture.

  • ▍ Caution led radiation do not stare into beam class 2 LED products.
