LED street lamp refers to the street lamp made with LED light source, which has the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed and high color rendering index, and is of great significance for energy saving of urban lighting.
◆ Product Feature
The LED street lamp differs from the conventional street lamp in that the LED light source adopts low-voltage dc power supply and the high-efficient white light synthesized by GaN base power blue light LED and yellow. It has the unique advantages of high efficiency, safety, energy saving, environmental protection, long life, fast response speed and high color index, which can be widely used on the road.The outer cover can be made to withstand high temperature up to 135 degrees and low temperature up to -45 degrees.
◆ Product description
Customized street lamp,Multi-power optional, energy saving and environmental protection, anti - corrosion
Model | KOS904-50W | KOS904-100W |

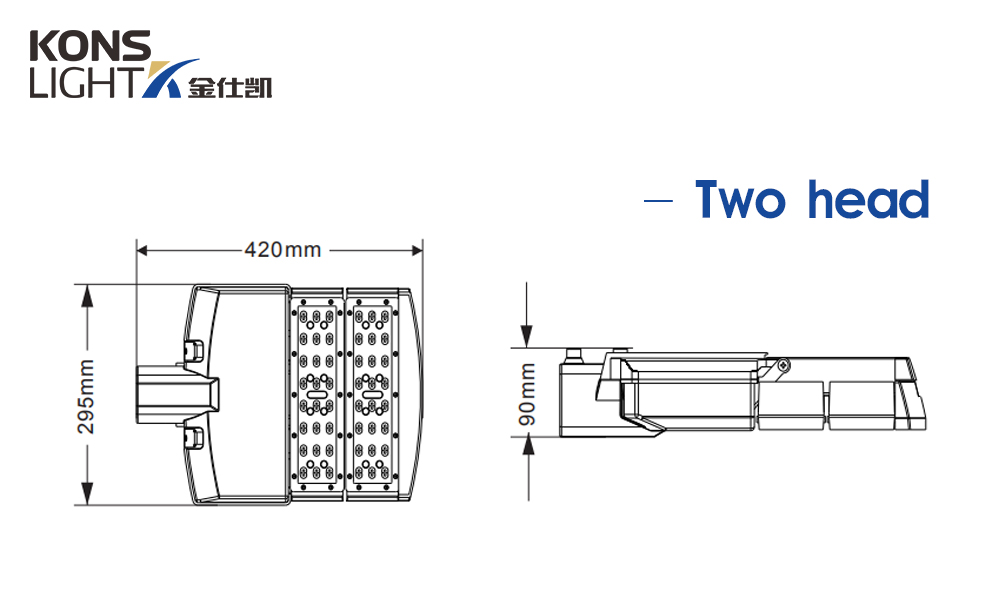

Dimension | 340mm×295mm×90mm | 420mm×295mm×90mm |
LED Chip | SAMSUNG3030 | SAMSUNG3030 |
Beam angle | 120° | 100° |
Color | 2000K~6500K | 5700K |
CRI | ≥80 | ≥80 |
Lifetime | 50,000 hours | 50,000 hours |
Operating temp | Ta=-25 to 45℃(Tc max =70℃) | Ta=-25 to 45℃(Tc max =70℃) |
IP Rating | IP65 | IP65 |
Power consumption | 50W | 100W |
Supply voltage | AC110V | AC110V |
Supply current | 0.469A | 0.886A |
Luminous flux | 5900lm | 11600lm |

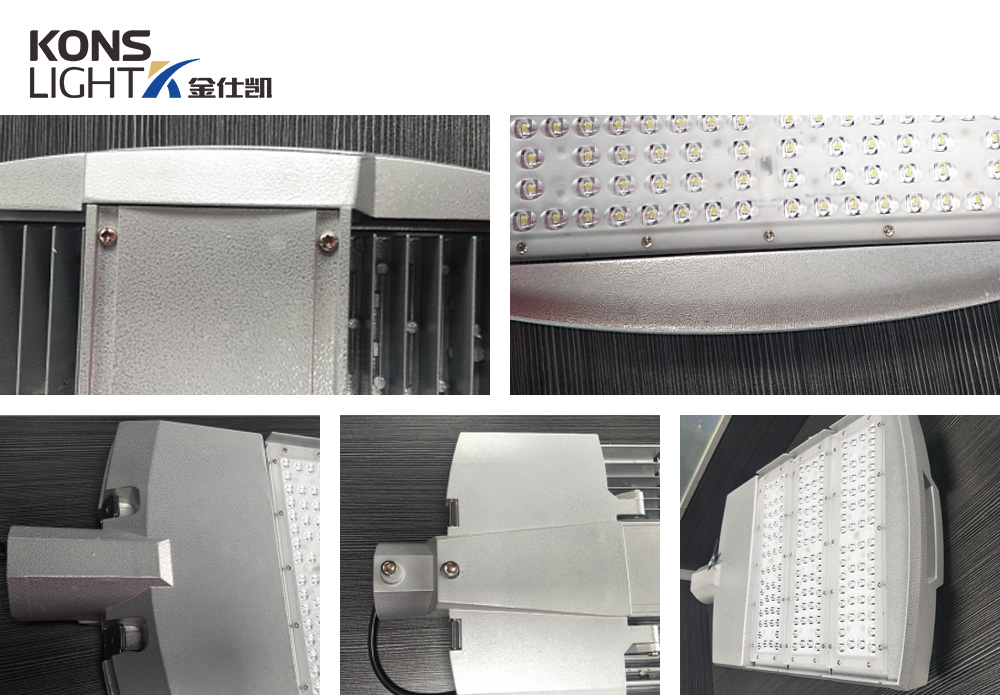

◆ Performance Details
◆ Product Features and Benefits
▶ High efficiency,low energy consumption.
▶ Good quality beam.
▶ Long life span 50,000hours.
▶ Flexible control.Dimming by changing current.
▶ Ecological.The waste can be recycled.No pollution and mercury.
◆ Application
High efficiency, safety, energy saving, environmental protection, long life, fast response speed and high color index, which can be widely used for urban road construction.
