▶ 1:It requires proper connection of the power supply (AV220V-240V) when using the product, and the incoming line is located at the top of the lifter terminal.
▶ 2:It will not work if without load anything. When it is installed or used, it needs to load 3-15KG lamps. If the lamp descends to the ground, the lifter will stop without gravity and need to manually pull the wire rope to give it gravity.

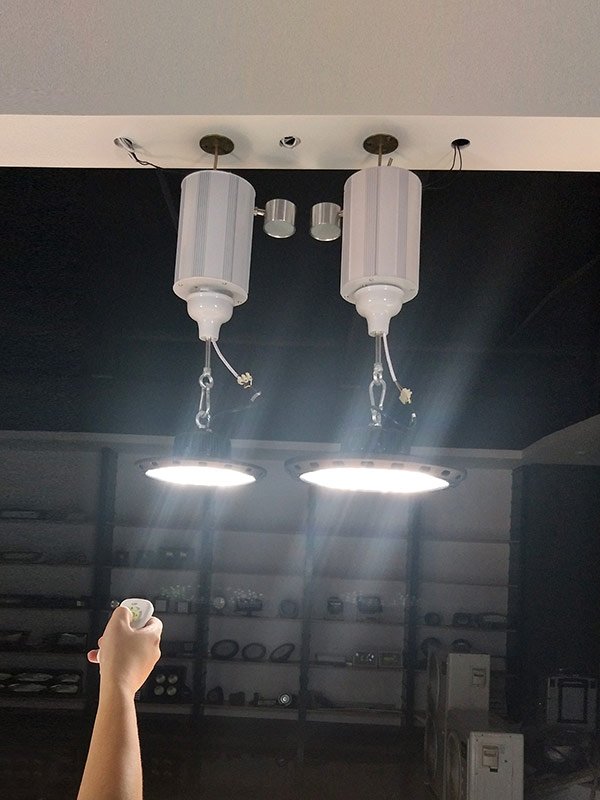

▶ 3: (1) Infrared remote control is point-to-point control. When a signal command is sent, the signal beam of the remote control must face to the signal receiver on the lifter,then it will be workable.
(2) The coded remote control isn’t require point-to-point,it is workable within 30m effective distance.
[ Indication: There must be no obstructions between remote control signal distances ]
▶ 4:The lifter is forbidden to rise or drop directly. The correct procedure is to raise-stop-drop and stop for 3 seconds per shift, and vice versa.
▶ 5:The lifter is equipped with an electromagnetic lock. After lifting it into the right position, it has to press “stop”button to reset the electromagnetic lock.
◆ Installing Methods
▶ 1.Prepare a M10 expansion ring screw before installation.
▶ 2.Ensure that the ceiling installing point can bear the total weight of the lifter and the lights.
▶ 3.Hole was punched on the ceiling and install the M10 expansion screw on the ceiling,make sure it was firmly installed.
▶ 4.Installing the lifter on the ceiling correctly with M10 expansion ring screw

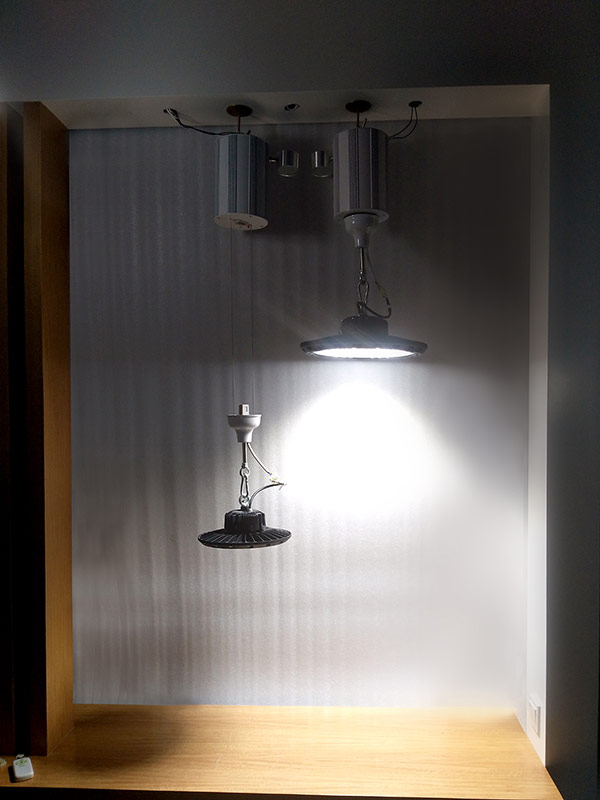

▶ 5. The Light can be connected to the lifter on the ground first, also can install the lifter on the ceiling before the light is connected. Lifter and light are generally connected by screws, flanges, and hooks.
▶ 6.The power cable to connect the lifter and lamp . The power cable is 0.75-1.5 square.
▶ 7.After using, make sure the remote control switch presses the stop button(ON/OFF)
▶ 8.Examine and run the lift for several times before removing the scaffold.
▶ 1.Only the professional person can dis-assemble the lifter.
▶ 2.Disposal of waste electrical appliances should be in accordance with National Regulations.
Warning:Only the professional person can dis-assemble the lifter!
Warning:When the product is in operation (work), people shouldn’t stand below.
Warning:Prohibition of shortening or lengthening the steel ropes,prohibiting any changes to the lifter.
Warning:Be caution when selecting lifter control methods.Please change to use wall switch in a complex
Rated Specifications | Lifter Specifications | ||
Operating Voltage | AC220V-240V | Lighting Weigh | 3-15KG |
Working Frequency | 50HZ | Lift Heigh | Less or equal to 15m |
Input Power | 50W | Rising Speed | 2.5m/min |
| Currency | 0.35 | Falling Speed | 3m/min |
| Working Temperature | -15 to 40 °C | IP Degre | IP55 |
| Size | 165*470mm | Insulation Class | 1 Class |
| Steel Rope Dia | 1.5m | Motor Type | DC |
| 3pc | Remote Control Type | Infrared/Encoding/wire Control | |
| Wire Dia | 0.75-1.5 square | ||

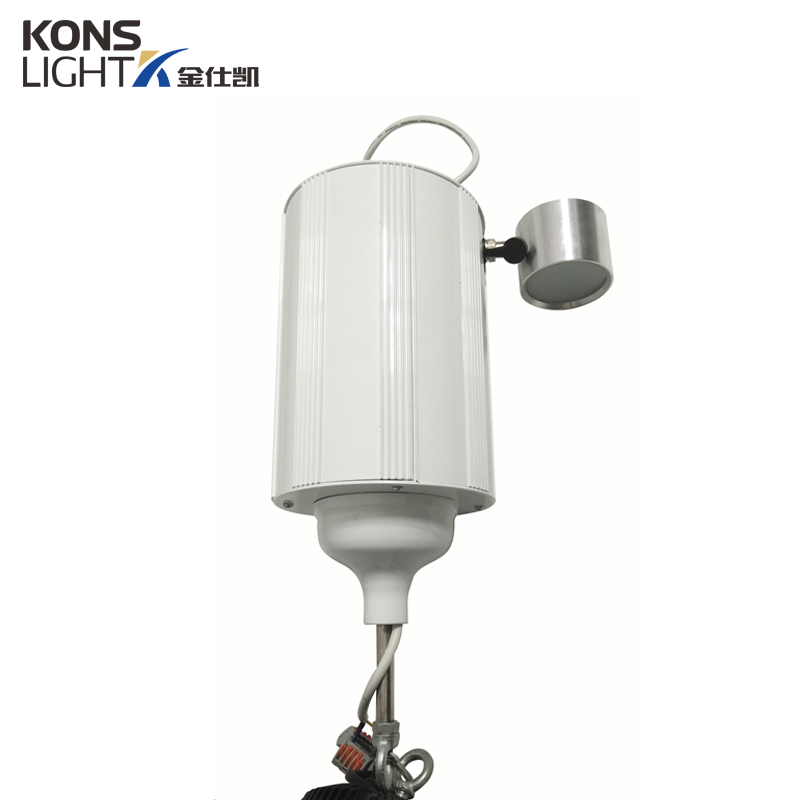

▶1.Cylindrical lifting design: easy to install, just one hook to hang up,no need to adjust the level, automatic balance adjusted, windproof, shockproof.
▶ 2.Turbine self-locking variable speed motor, simple design, allows the lights to stop at any height without the need for motor brakes.
▶ 3.Bottom-end-point switch: The motor automatically stops working after the wire rope is totally released, preventing the wire rope from continuing to rise after the motor is reversed.
▶ 4.Top-end point switch: After the lamp rises to the top, the motor brake stops working to prevent the motor from being blocked and damage the motor.
▶ 5.Gravity protection switch: When the steel wire rope is weightlessness (for example, when the lamp falls on the floor or hangs on the shelf, the wire rope loses the pulling force) the motor will automatically stop working and the wire rope will not be damaged.
▶ 6.Cable arranging device: can evenly arrange the wire rope on the take-up wheel (optional)
▶ 7.Electromagnetic lock: It can hang the light to prevent it from falling when the wire rope breaks due to abnormal external force.
▶ 8.Power socket, three-reed groove design, smooth insertion and removal, high accuracy, good conductivity and good security.
▶9.Double steel wire structure: It can make the lamp do not rotate when it moves up and down, more stable and accurate positioning.

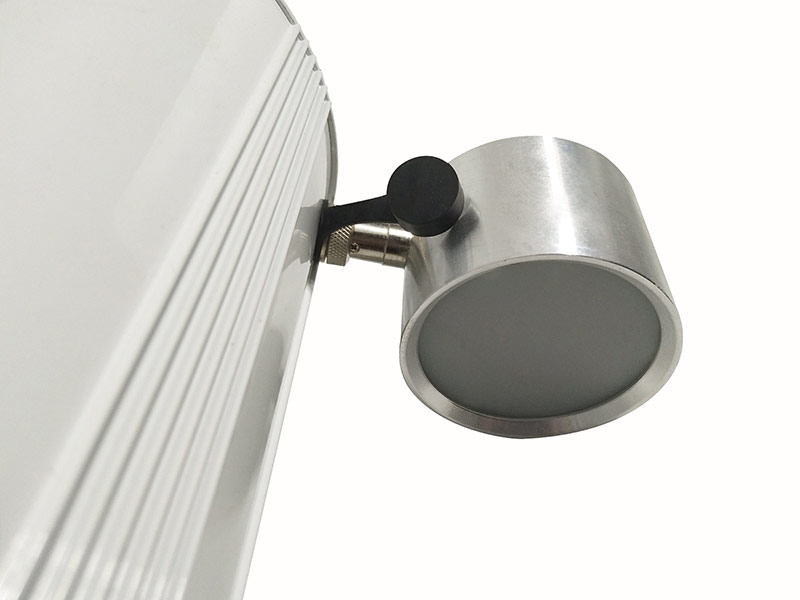

▶ 10.Signal receiving switch plug-in external, convenient to switch the elevator control mode, mechanical switch and remote control switch can be switched at any time or at the same time.
▶ 11.Laser remote control: A handle can control any lifter when you align it. Controlling distance (50M). The remote control handle is universal,thus the handle can be replaced at any time if it is broken. No coding is required.
