●High eficiency，low energy counsumption.
●Good quality beam.
●Long life span 5000 hours.
●Flexible control. Dimming by changing current.
●Ecological. The waste can be recycled. No pollution and mercury.
++
◆ PRODUCT DESCRIPTION
◆ Technical Parameters
Model | KS-CPD-CNW1-8W |
Dimension | 170*170*H125mm |
LED Chip | CREE |
Beam angle | 10° |
Color | 3000K |
CRI | ≥80 |
Lifetime | 50,000 hours |
Operating temp | Ta=-25 to 60℃(Tc max =70℃) |
IP Rating | IP65 |
Power consumption | 8W |
Supply voltage | DC24V |
| Luminous flux | ≥480LM |
◆ Description

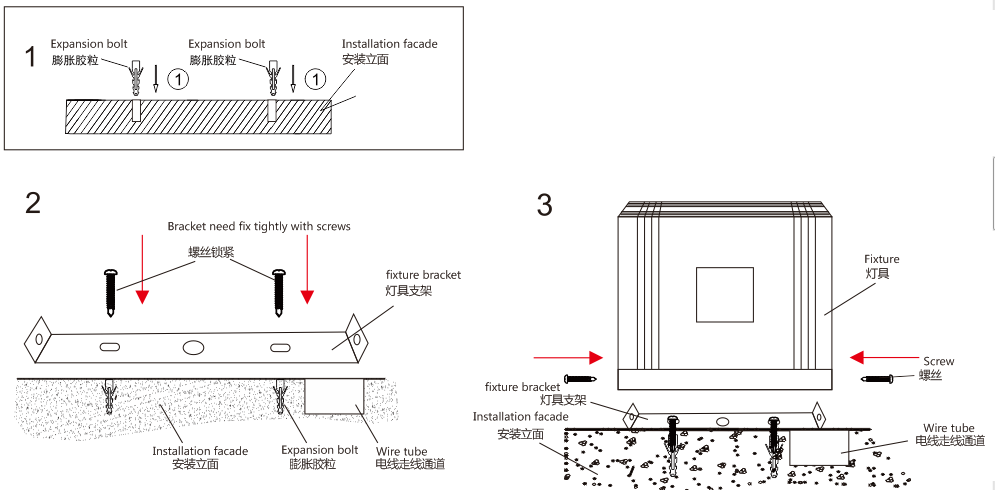

◆ Installation method
1、Drill hole in facade and knock expansion bolt into facade；
2、Loose bracket screws, adjust distance between cut hole and bracket, then use screw to tight bracket；
3、After bracket finished, the fixture's side hole need be aligned with the hole of bracket , tight screws and finish installation。
◆ APPLICATION
