◆ PRODUCT DESCRIPTION
●High eficiency，low energy counsumption.
●Good quality beam.
●Long life span 5000 hours.
●Flexible control. Dimming by changing current.
●Ecological. The waste can be recycled. No pollution and mercury.
◆ Technical Parameters
Model | KL-BD810 |

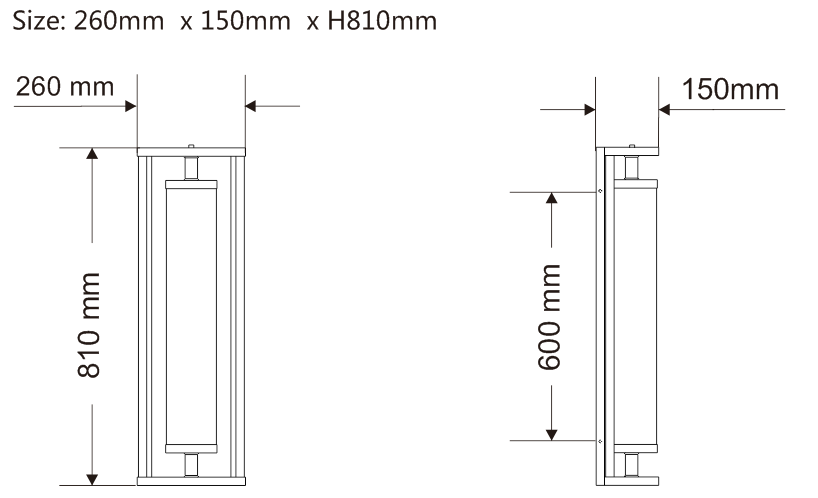

Dimension | 260*150*H810mm |
LED Chip | CREE |
Beam angle | 120° |
Color | 3000K |
CRI | ≥80 |
Lifetime | 50,000 hours |
Operating temp | Ta=-25 to 60℃(Tc max =70℃) |
IP Rating | IP54 |
Power consumption | 7W |
Supply voltage | AC220V |
| Material | stainless steel+Milky white acrylic |

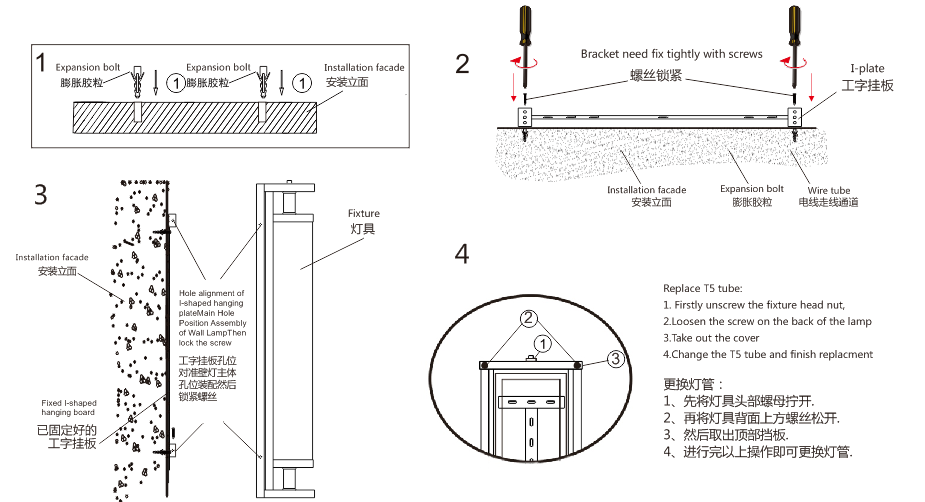

1、Drill hole in facade and knock expansion bolt into facade；

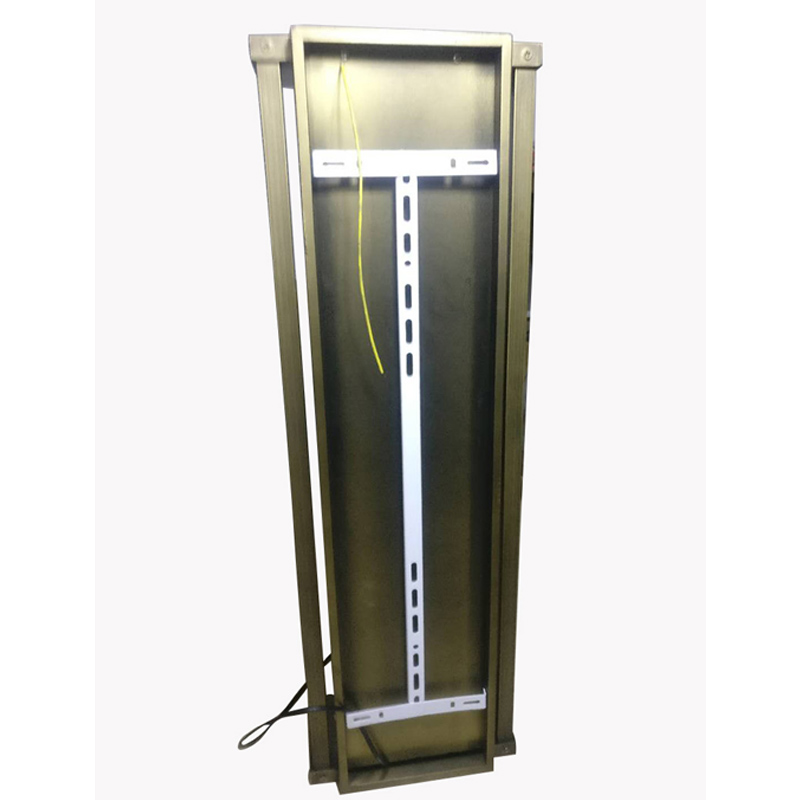

2、Loose bracket screws, adjust distance between cut hole and bracket, then use screw to tight bracket；
3、After bracket finished, the fixture's side hole need be aligned with the hole of bracket , tight screws ,and finish installation.
4、Replace T5 tube: Firstly unscrew the fixture head nut, loosen the screw on the back of the lamp ，and then remove it,
then change the T5 tube and tight the cover's screw, finally finish replacement
