| Model | AI-U30W/40W | |
| Rated Power | 30W | 40W |
| LED Chips | 72LEDs | 72LEDs |
| Solar Panel | 60W | 80W |
| Luminous Flux(lm) | 3,600lm | 5,200lm |
| Battery | 391WH | 488WH |
| Warranty | 3 Years | 3 Years |

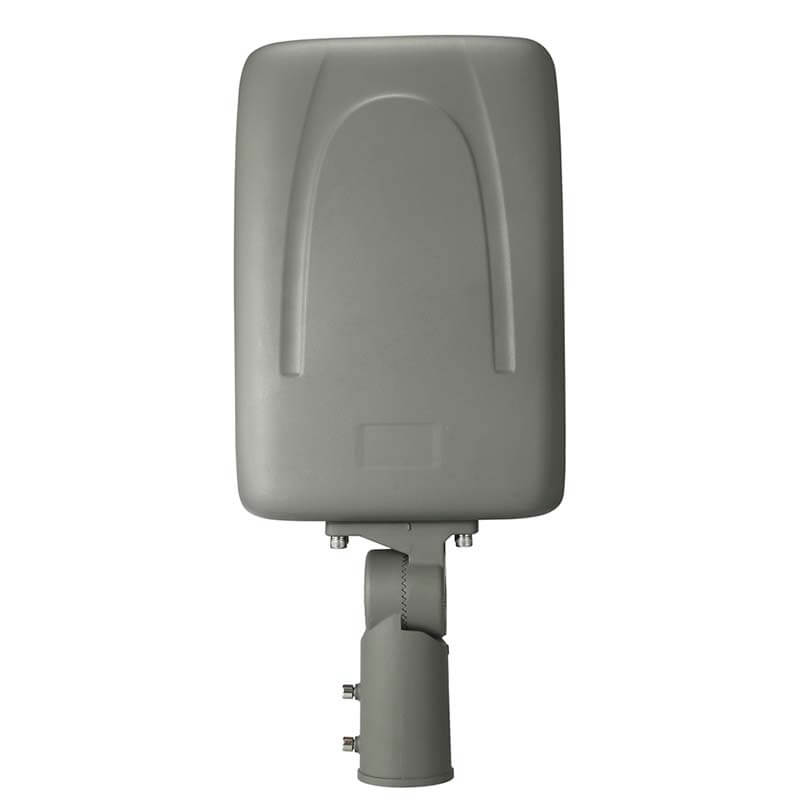

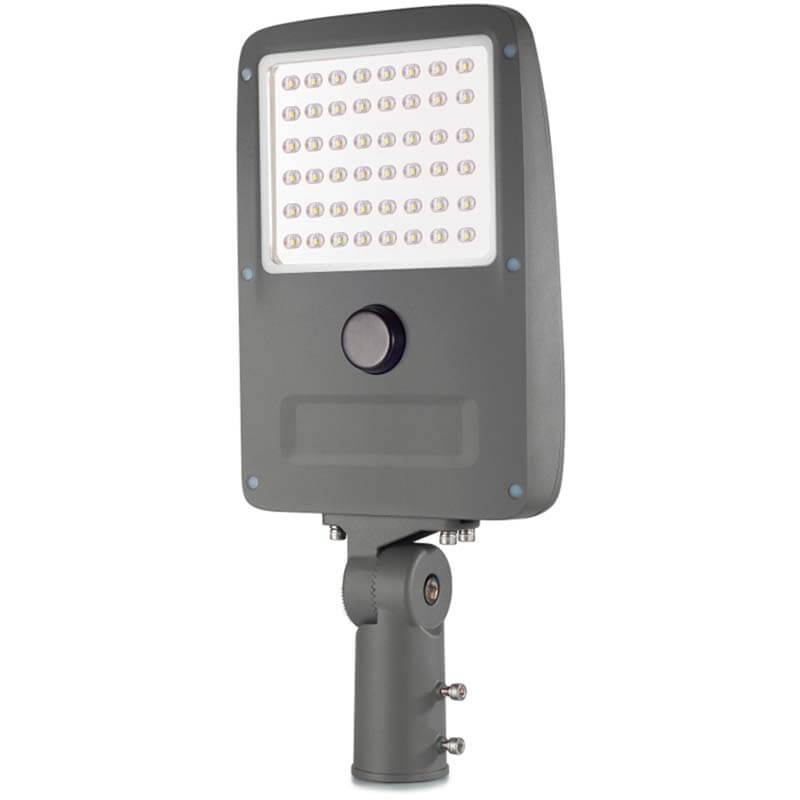

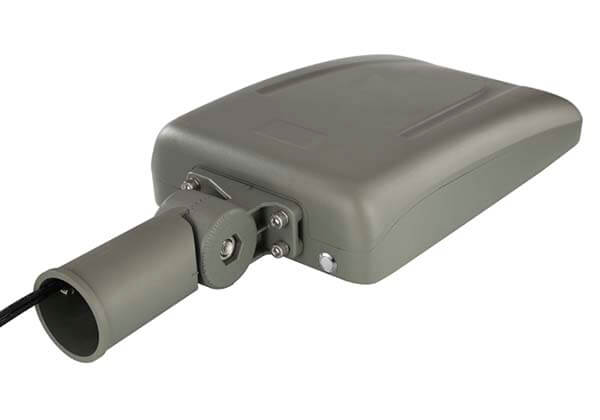

Helios Series - Integrated Solar Street Light is the original patented design with streamlined appearance, which combined brgihter Philips LED source, extreme efficient Movo PV panel, intelligent programable MPPT controller, long lifespan LifePO4 lithium battery, 'Smart Eye' motion sensor and full-angle adjustable bracket to All In One. Integrated design, module structure and plugging connection make easier to install, maintain and save budget.
Lithium Battery Pack
High temperature resistant,up to 2000 cycles lifetime.Smart BMS protection
Philips SMD LED Source
More LEDs is used,drived with lower current,achieving more than 150lm/w. High efficiency than normal solar lights
MPPT Solar Controller
Higher chagring efficiency than PWM controllers,Ensuring enough power generated for every night
Switch Button;
Aluminium material,anti-UV; Oxidation
High Quality Solar Cable
Durable and long lifetime of solar cable.Less power will be lost than using small cable.Max 40M from light to solar panel.
Motion Sensor Optional
Sensor is optional in case of detection function for security use or to save energy
HELIOS Solar LED Street Light is adopting big brand Philips SMD3030 1W as light source.
What's more, more than doubled LED is used but LEDs are driven by lower current input. It achieves a super high lumens , up to 150lm/W practically. HELIOS 20W is equal to same lighting performance as "All in one" 30W, The LED of "All in one" solar led street light is always used high power 1W with Epistar or Bridgelux LED. HELIOS 30W is saying the total led consumption is 30W. "All in one" 30W is always saying the total quantity of led 1W is 30Pcs. the real power is always much less than power as declared.
That is why HELIOS all in two solar street light is much brighter than all in one type.
The solar panel of HELIOS AIT street light is separated from light head. It makes so convenient for customer to choose the right panel according to sunshine radiation of local environments. This is quite necessary especially customers requires 100% power for whole night. For example, HELIOS 20W can come with 40W solar panel if does not need long and brightness for whole light, and also HELIOS 20W can come with 100W solar panel for the area where is lack of sunshine very much, like North of Canada.
Comparing with HELIOS AIT. solar panel of "All in one" is fixed completed on the light, and customers cannot do anything for panel if sunshine is bad, customer cannot increase the panel power as wish. Because of this disadvantages, "all in one" solar street light always come with a motion sensor, and only work with 30%+100% for whole 12 hours. never support 6 hours 100% brightness+6 hours 100% which is the most requirements for big projects.
Thanks to separated solar panel, Customer can adjust the position of solar panel in horizontal and vertical position freely and easily. This allows solar panel can be used with the highest efficiency as possible in the best position. Customer can purchase solar panel from Auroras, or buy from their ready supplier, or use solar panel in stock. More flexible for business.
What's more, Solar panel and solar light head are connected by MC4 which is the universal connector for solar panel. Distance from solar panel to light is max 40M. Lights can be installed far away from solar panel. Lighting will be anywhere, anytime.
