| Model: | T6-78 | Working Temp: | -20℃~65℃ |
| Rated Power: | 60W | Lighting Modes: | 100% Continuous lighting / Energy saving / Customized modes. |
| LED Chips: | 248LEDs | N.W/Light: | 14.30Kg |
| Solar Panel: | 120W 36V | G.W/Light: | 15.20Kg |
| Luminous Flux(lm): | 7800lm | Product Size: | 800mm*310mm*116mm |
| Battery: | 1296WH | CTN Size: | 930mm*400mm*220mm |
| Warranty: | 3 Years | Control Method: | Manual ON/OFF / Automatically ON/OFF / Time Control |

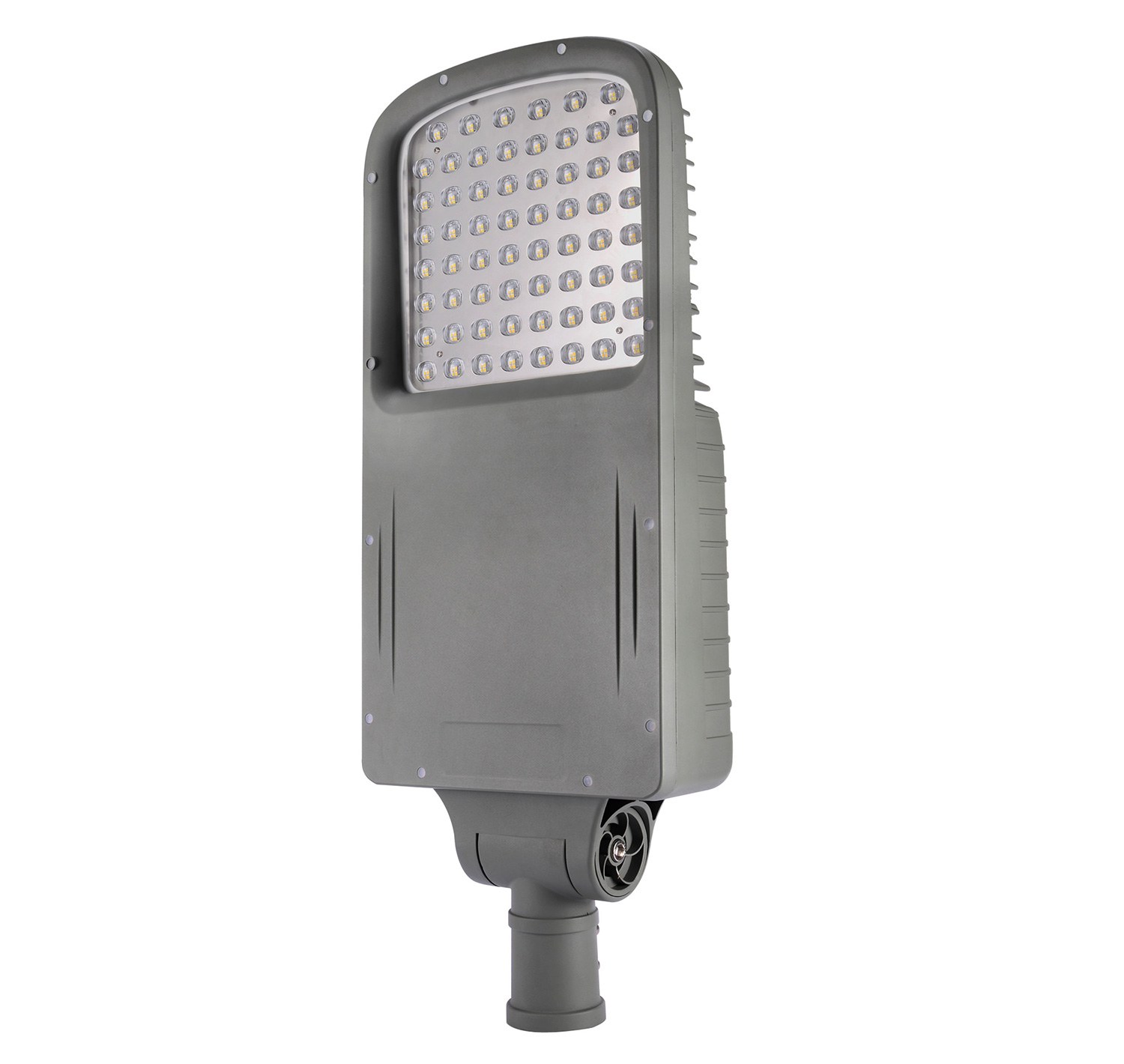

Just as its name represents a powerful force, from the very beginning, it was designed with more functional and brightest standards. There is no solar street light in the market that can have such high actual power and brightness as THOR.
It adopts lumileds SMD3030 LED as light source, led qty is up to 248pcs. Up to 18000lm with actual power as 140W. The power range is from 50W to 120W as optional, max NCM lithium battery capacity is more than 2400WH or LifePO4 battery 1350WH. Each power of LED range, there are different power capacity we can use in order to get various automony ( backup days) according to customer's requirement.

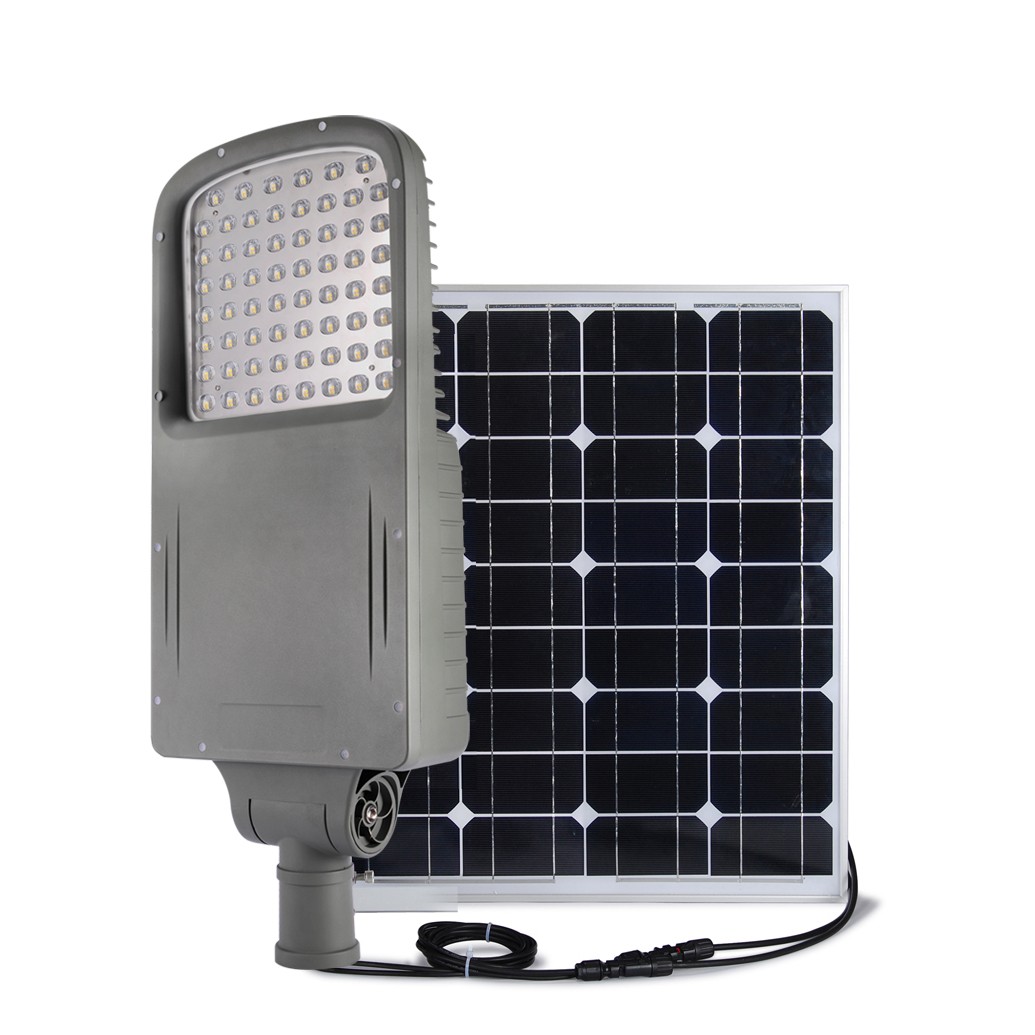

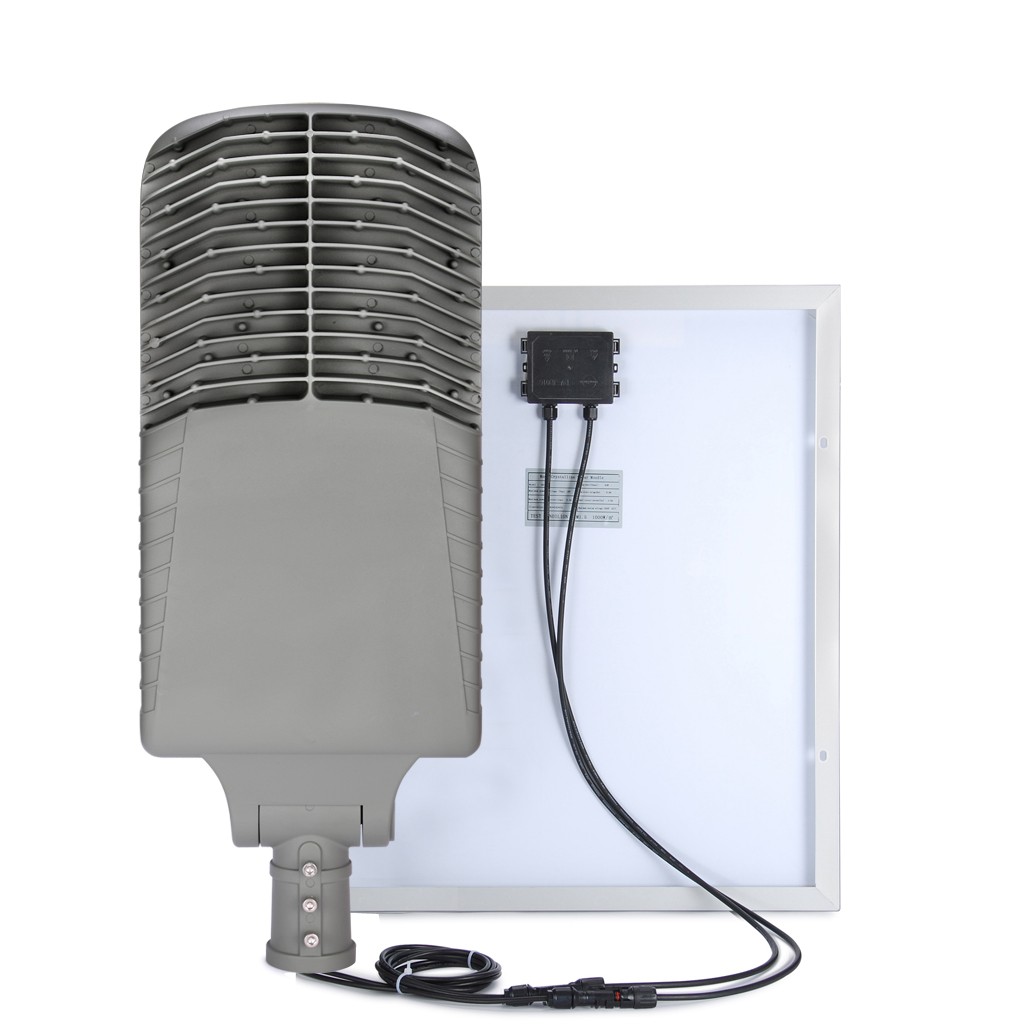

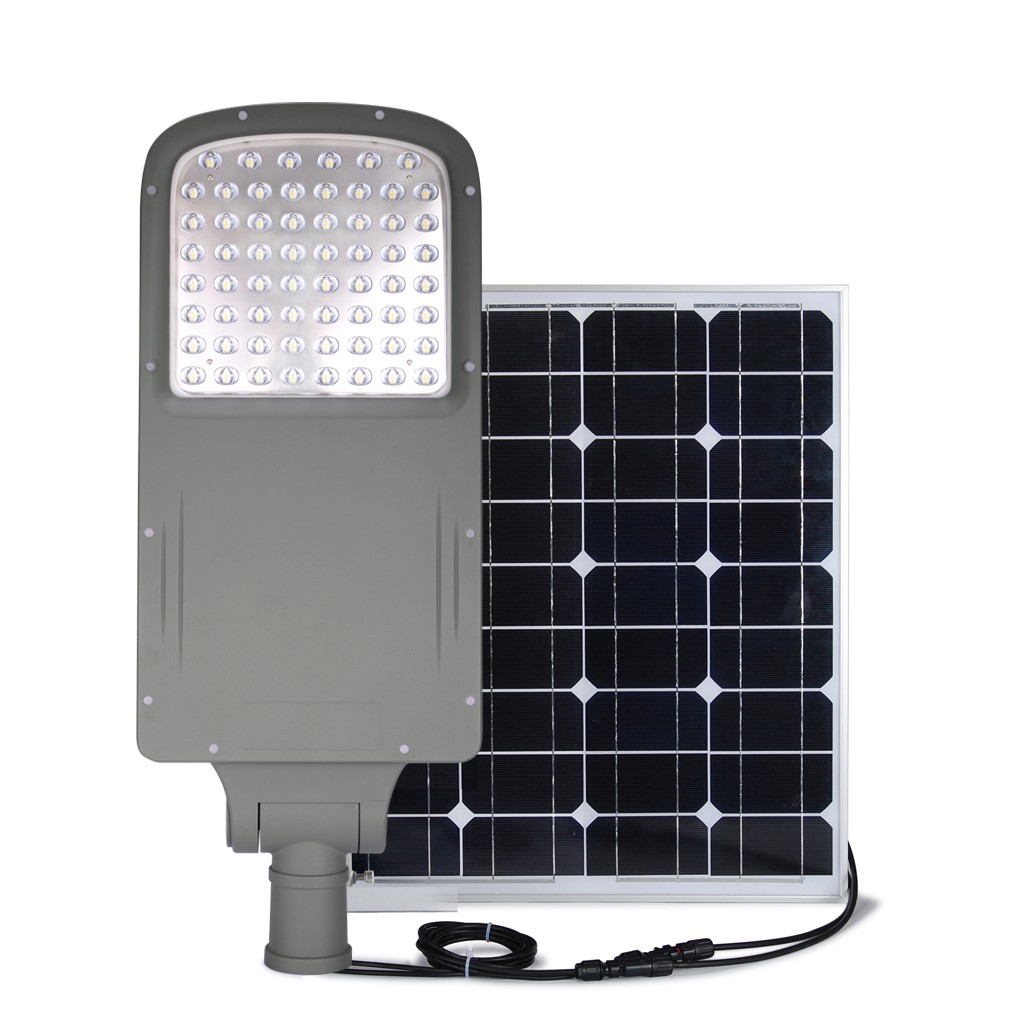

Thanks for its practical high lumen performance, this light is the ideal model and capable to be used for the application where require ultra high brightness with high poles 12m 14m for express way, or airport. Different solar panel up to 600W can be matched according to local solar radiation by which we can ensure suffciency power can be generated even in challenging situation.
THOR is the best of solar led street light for your coming project.

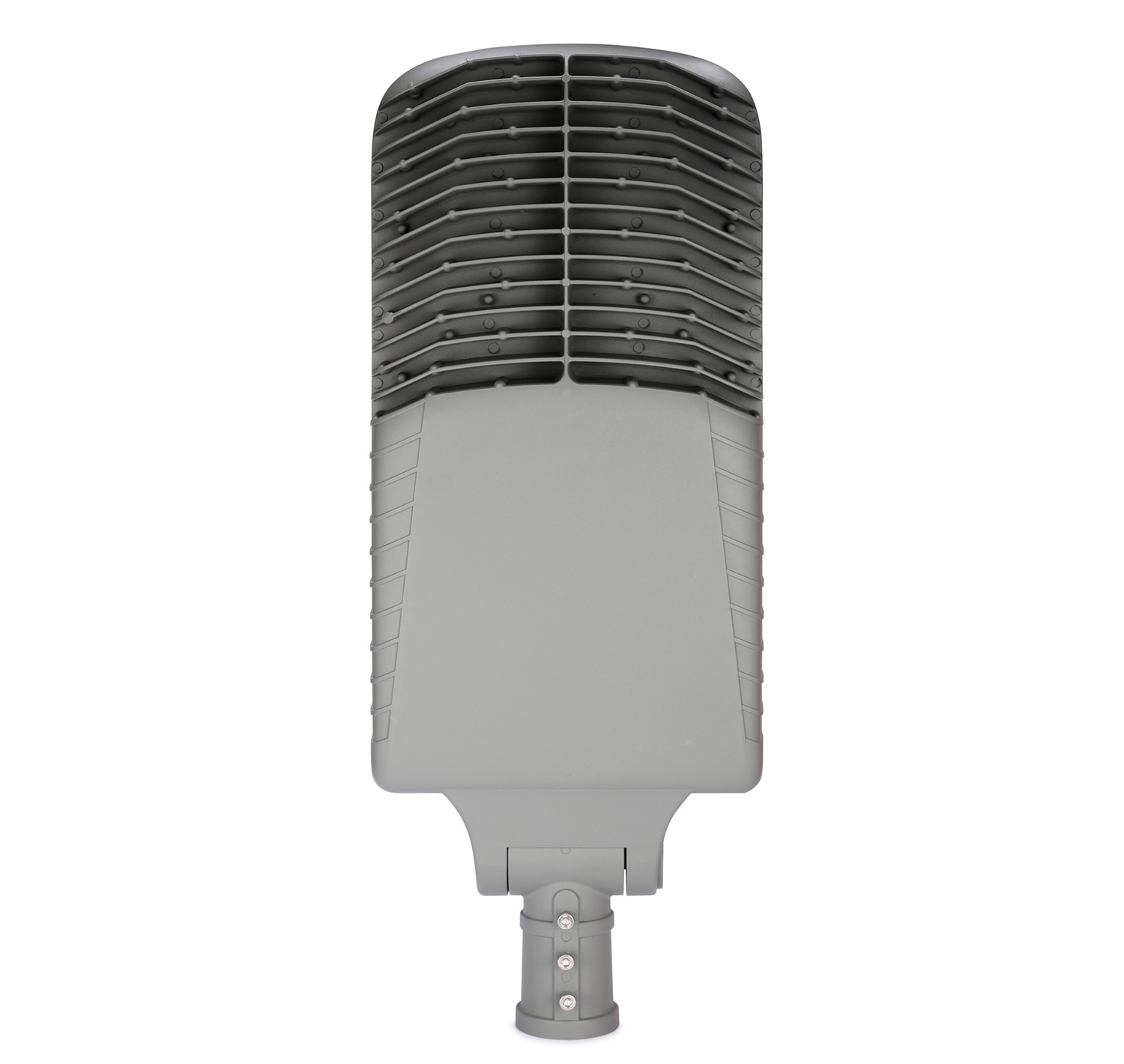

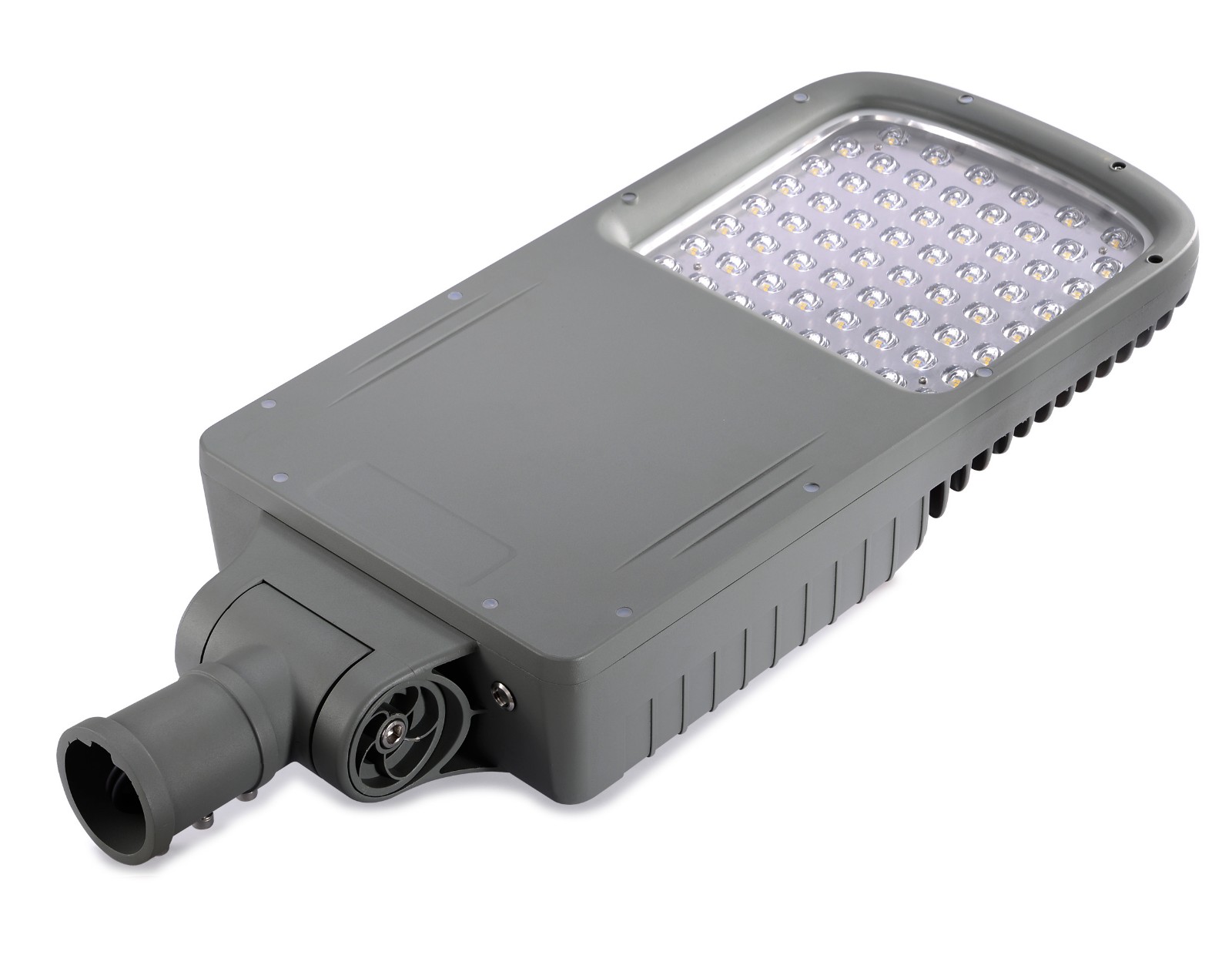

• A standard industrial-grade product with an industrial grade aluminum alloy case, interference resistant, solid and durable, easy to install.
• Wireless ad-hoc network technology, together with GPRS communication technology, enables remotecontrol at anywhere and anytime.
• Collects individual-light data, and through protocol conversion,uploads the data to the monitoring system, then issues commands to the individual-light controller.
• Adopts GPRS communication technology, with the operating frequency covering 4 bands, i.e. 850/900 /1800/1900 MHz.
• Intelligent concentrator relay routing algorithm.
• Supports text message monitoring and setting.
• The software employs PPP multiplexing uplink communication technology.
• With excellent electromagnetic compatibility, the system can operate accurately under tough interferences like high voltage spike pulses, strong magnetic field, strong static electricity, lightning surges, drastictemperature Ochanges, etc.
• An IP65 waterproof level.
