XH-LA(L) Low-intensity obstruction light is used in Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions within 45 meters to air traffic with a steady/flashing burning red safety light. There is one switch converting between flashing mode and steady-burning mode.
Product Specifications
Light intensity | 32cd |
Operation mode | Steady-burning (Customized flashing ) |
Light source | LED |
Service life of LED | ≥100,000hours |
Operating voltage | AC110V-240V, DC12V-48V, 50-60Hz |
Power consumption | 1W |
Vertical degree | ≥10° |
Horizontal degree | 360° |
Material | Housing: PC, Base: die casting aluminum |
Emitting color | Aviation red |
Ambient temperature | -40℃~+70℃ |
Wind load | 80m/s |
Protection standard | IP65 |
Overall size(mm) | 130 by 130 by 211 |
Mounting size | 78 by 78 by φ9 |
Weight | 1Kg |
Product Features
◆ ICAO Certificate from USA Intertek. No.:102968386CRT-001TVoC.
◆ IP65 waterproof rating.
◆ Low power consumption.
◆ Long life LED light source.
◆ Integrated design with built-in photocell.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV.

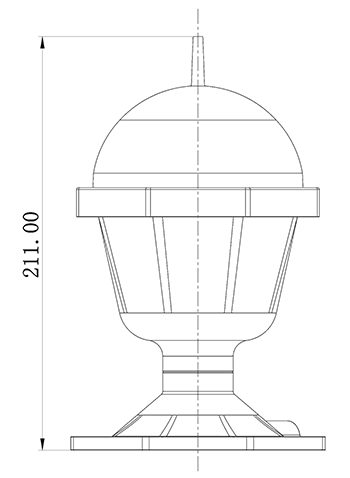

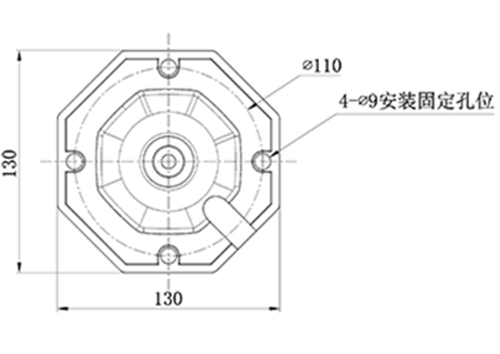

Product Dimension
Production Process
