2019 new Outdoor IP65 all in one 25w 30w 40w 50w 60w 70w 80w 100w 120w 150w integrated solar street light
Product Description
Solar powered street lights are a very good example on what can be done with solar energy.
A growing number of solar street lighting projects are running in Africa, Asia and the Middle East.
Some European and US cities are currently running pilot projects.
The concept is straightforward and we shall see more countries migrating this way.
well chosen, solar street lights are cost-effective, cost-saving and reliable.
Remarks：Installation diameter of steel hoops:60mm-100mm
The integrated solar street light, which can also be called all in one solar garden light, it uses several practical and good control technology,such as mini-controller and human infrared induction, and unites the integrated design to satisfy the needs of low consumption brightness, long using time and maintenance free,and the performance of water-proofing and heat dissipation are also perfect
Product Features
1) All in one intelligent design
2) Long lighting time up to 36-48 hours
3) Energy Saving LED garden/street lights
4) Different Motion sensor with timer
5) Pole optional, easy to install
6) Have photo sensor turn on at nite, turn off daytime, also can according customer design the working time

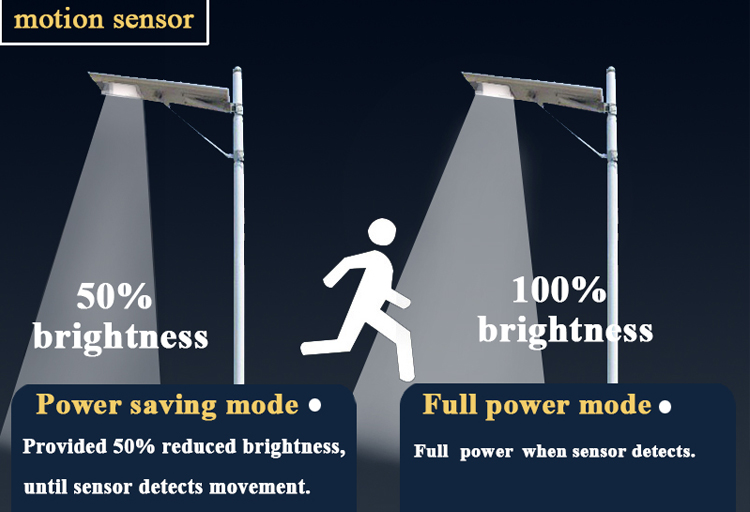

Working mode: During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power .
Installation Instructions
Wiring-free, easy installation and light; Two workers can do installation within 5 minutes; High-capacity, long service time li-battery is used to make sure that the using time of the light can be 8 years; Green illumination source without hazardous substance like mercury, less radiation.
Application
solar led Street Light Pathway Lighting Ramp Lighting
Private Road Lighting Sidewalk Lighting Remote Area Lighting
Square Lighting Jogging and Bike Path Lighting Perimeter Security Lighting
Farm & Ranch Lighting Wildlife Area Lighting Park Lighting
Gate Lighting Yard Lighting Parking Lot Lighting
Campus Lighting Boat Dock Lighting

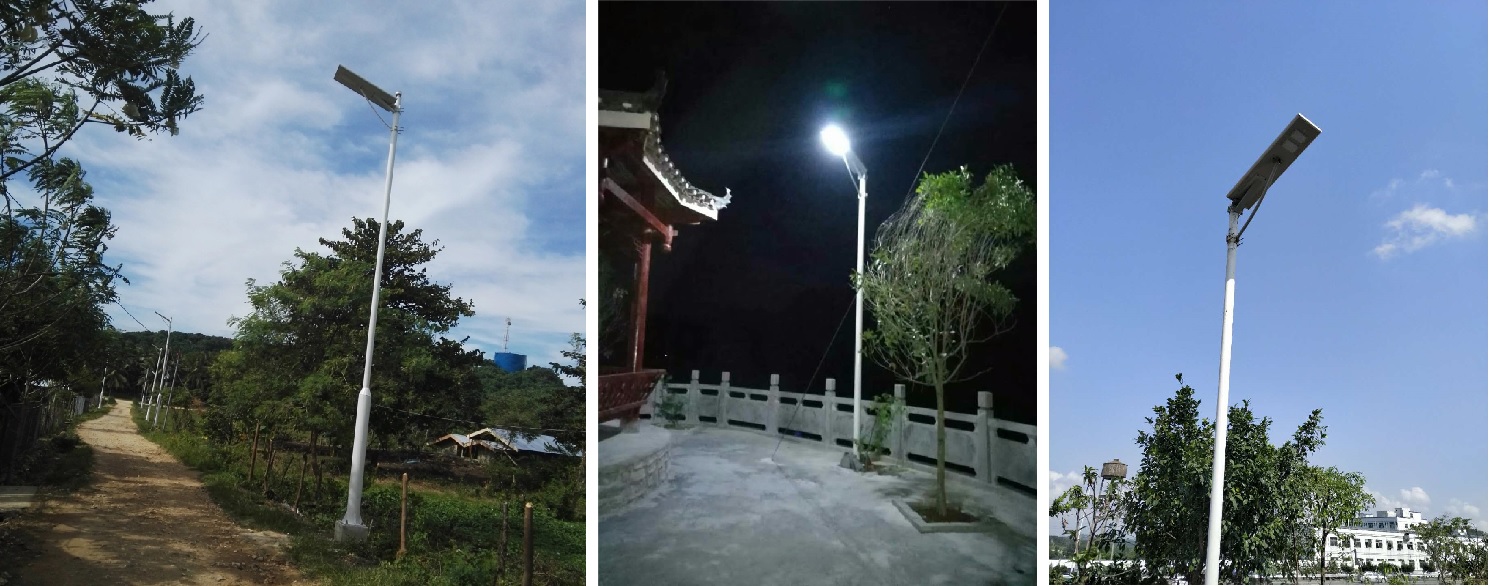

The All-in-one integrated solar street light can be installed in all streets, auxiliary roads, paths in residential subdistricts, mine areas, non-electricity zones, parks, parking lots and villages to provide light, and the solar panel can charge the battery to satisfy the need of lighting.
1. “All in One solar steer light ” could not work without sunshine, please select the suitable model according to the
local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.
2. “All in One solar street light” adopts the long life Lithium battery for storing energy, charging temperature at day
time is between: 0℃~+60℃, when temperature goes lower than 0℃, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0℃. Discharging temperature at night is between: -20℃~+60℃, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.
3. Battery of the “All in One solar street light” can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.
4. When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away form any shadow of houses, trees etc.
5. Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
6. All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.
7. The knob of the fuse is at the left rear end of the light, please insert the fuse while using. By the way, there is one piece of fuse more as backup(If not fuse, then it is switch, just turn the switch)
