Product information
High Quality SMD2835
Product Feature
◆ Extremely wide viewing angle
◆ Long lifespan：life can up to 50,000H
◆ High luminous efficiency：The light efficiency of 1W product can reach 150LM/W
◆ Optimal light color：Spectral color tolerance
◆ High density：new process PCT2835 vulcanization resistance is better than the same trade 3%
◆ Full power： PCT2835 covers the existing 2835 single crystal, twin crystal and tricrystal
◆ Wide variety of voltages are available：In addition to the ordinary 3V, you can also choose following high voltage：2835 6V, 9V, 12V, 18V, 24V, 36V, 45V, 48V
◆ Suitable for all SMT assembly and solder process.
◆ Wide usage：available on tape and reel, also can used for bulb, downlight, spot light, flood light, tube, strip and advertising signboard.
◆ Moisture sensitivity level: Level 4
Advantage：Efficiency priority, can meet the demanding light efficiency requirements.
Application：Outdoor and industry.
Color Rendering Index：MIN Ra 80
Advantage：Cost first, meet the requirement of high index and high light efficiency.
Application：Residential and office used.
Advantage：Color priority, while light efficiency exceeds most traditional light sources.
Application：Shops and museum used.
Advantage：Color priority，to meet the places that with high requirements for color discrimination.
Application：Medical and printing industry lighting.
Product parameters
| Rank | Light Color | Viewing Angle(V) | Luminous Intensity(lm/60mA) | |
| 2θ1/2 | min | max | ||
| A | White | 120° | 24 | 27 |

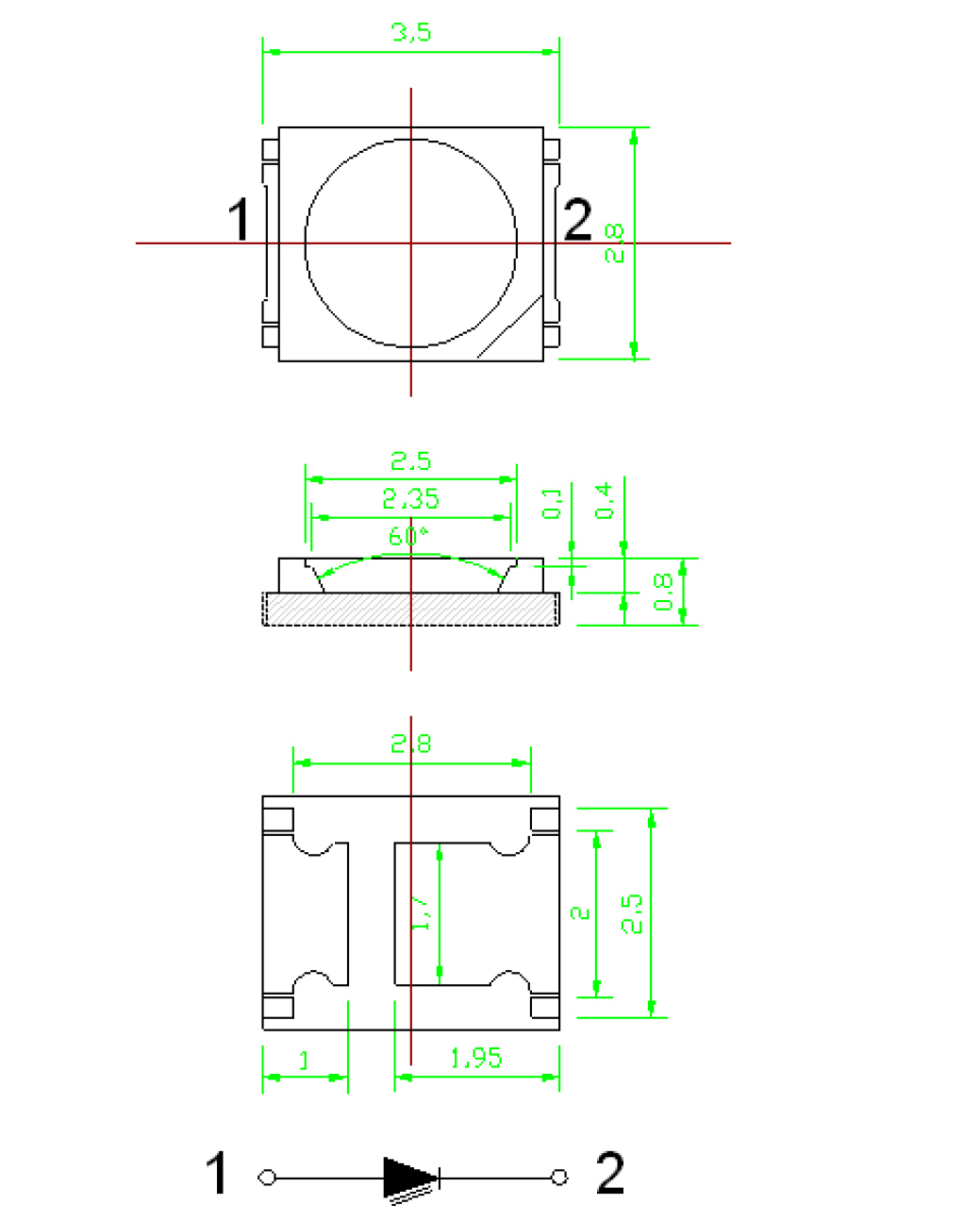

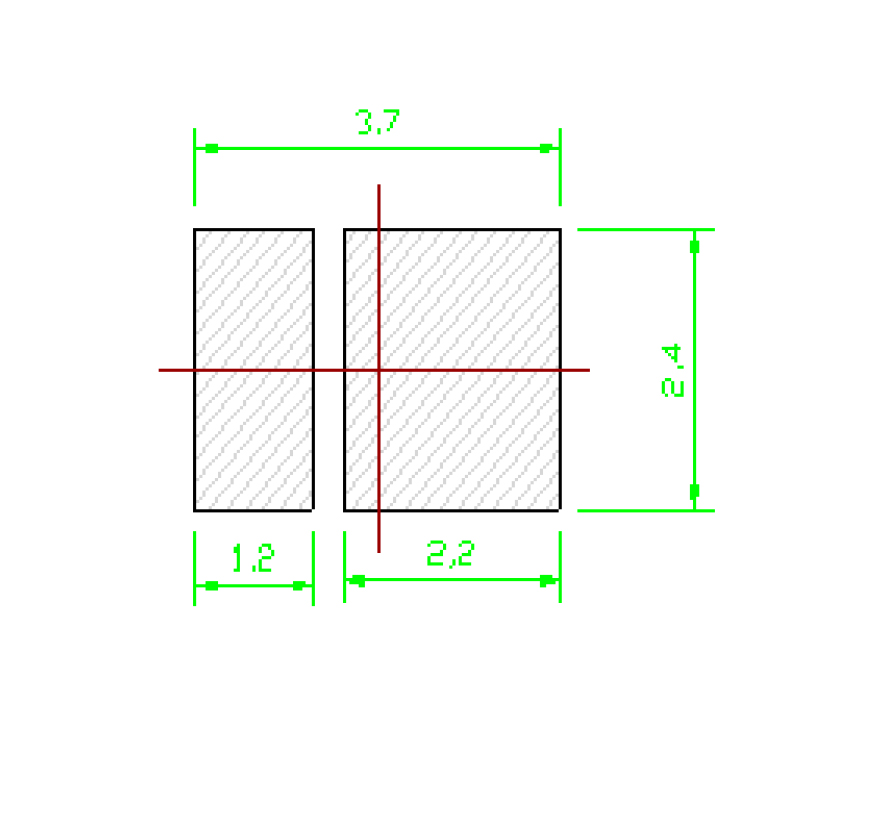

Product Dimension
Unit：mm
Tolerance：±0.1
