Click on the image to view the original image
| Model | EGM-12BLT50、EGM-12BLT30 |
| Material | Aluminum |
| Cooling power | Max.1500W |
| Cooling Surface Area (mm²) | 57600 mm² |
| Matching optics | 20°、40°、60°、90°、120°、TypeII |
| Protection level | IP65 |
| Crafts | Stamping & fin |
| Color & Finishing | Silver + black Power coating |
| Weight | 21.2 Kg |
| Quantity | 1PCS/Box |
| Package dimensions | 712*519*180 mm |
| Typical applications | high bay, low bay, parking, and stadium lighting. |
Prdouct Description
EGM-12BLT Heatsinks
The EMG heatsinks offer lower thermal resistance than traditional extruded, cold forged, and die-cast heatsinks. The high aspect ratio fin provides adequate heat transfer capability. The lightweight heatsinks offer design flexibility with high thermal conductivity which is well suited for LED lighting applications.
UPGRADABLE LED MODULE
A modular construction of LED engines, drivers and add on accessories that ensures the future upgradability of our range of luminaires.
Features
LANYEEH is committed to creating high-quality, reasonably priced, well-designed LED lighting enclosures that allow you to easily install and save end users money and labor.
◈ Excellent thermal performance
◈ Large heatsink surface and lightweight
◈ High thermal conductivity aluminum alloy
Matching optics
Put light where it’s needed.
Darkoo's spec-grade optics are designed to offer Type II, 20°，40°，60°，90°and 120° to ensure you get the light where it's needed most.

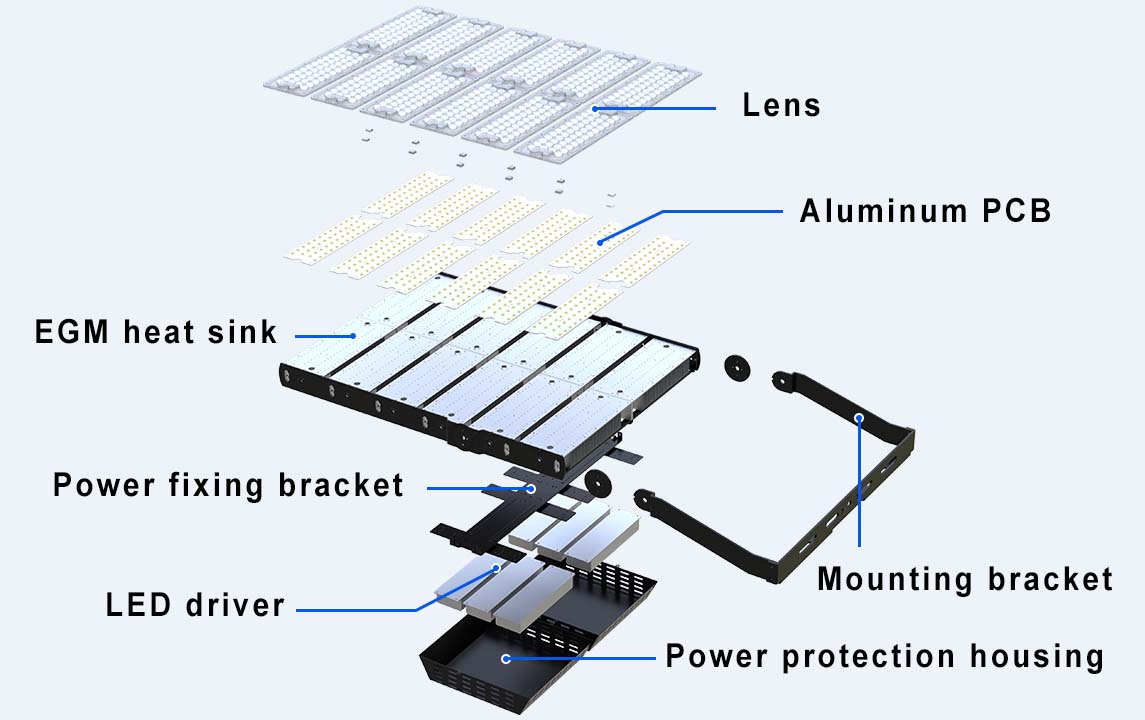

Product Structure
