| Model | EGB-12LT50, EGB-12LT30 |
| Material | Aluminum |
| Cooling power | Max.1500W |
| Cooling Surface Area (mm²) | 57600mm² |
| Matching optics | 20°、40°、60°、90°、120°、TypeII |
| Protection level | IP65 |
| Crafts | Stamping & Fining |
| Color & Finishing | Silver + black Power coating |
| Weight | 29.9kg |
| Quantity | 1PCS/Box |
| Package dimensions | 772*1024*421mm |
| Typical applications | High pole light, Industrial lighting, Coliseum lighting, Golf Course lighting, Harbor lighting |
Prdouct Description

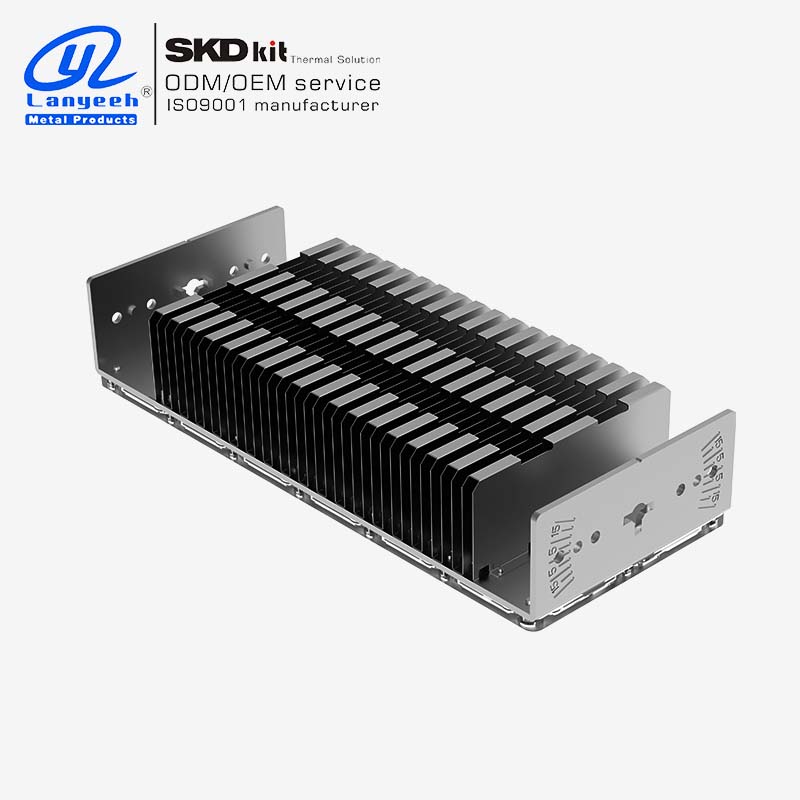

Manufactured by folding one continuous sheet of metal in a wave pattern to maximise cooling surface area, the folded fins are then attached to the heatsink base by stamping riveting.
Specifically designed for high power, forced convection applications where space is at a premium, folded fin heat sinks offer an increased surface area without increasing heatsink volume. Offering reduced thermal resistance of up to 60%, folded fin heat sinks are a high-performance method of meeting your cooling needs.
The key features of the folded fin heat sink are the use of lightweight cooling fins resulting in reduced material cost and part weight.
The lightweight fins make them particularly useful for applications where weight is important, such as LED Heatsinks or interior, exterior, industrial and domestic applications，covering Street lights High bay lights Stage lights Spotlights.
Most LED folded fin Heatsinks solutions will be customised to specific applications, however, as leaders in this field we are well placed to advise you on the best, most cost-effective solution for your needs.

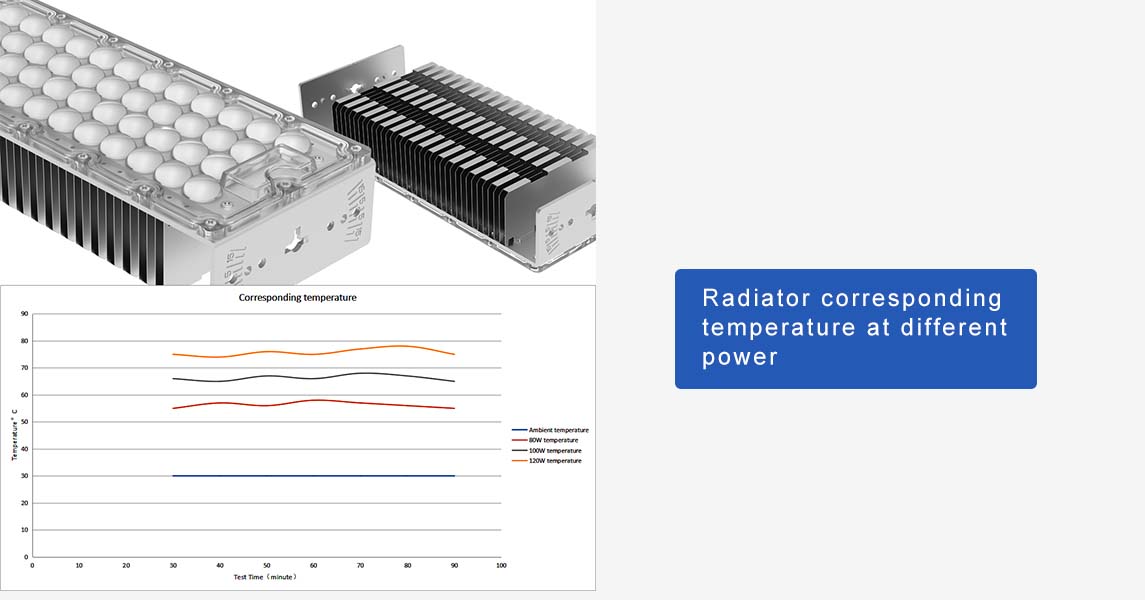

◈ Radiator corresponding temperature at different power
In order to adapt to a variety of application environments, there are a variety of optical options, 20 °, 40 °, 60 °, 90 °, 120 °, Type II
Specifically designed for high power, forced convection applications where space is at a premium, folded fin heat sinks offer an increased surface area without increasing heatsink volume. Offering reduced thermal resistance of up to 60%, folded fin heat sinks are a high-performance method of meeting your cooling needs.
Anti-aging, anti-UV, quality assurance 5 years
Product Structure
