Click on the image to view the original image
| Model | SRM-40LT30 |
| Material | Aluminum |
| Cooling power | Max.30W |
| Thermal conductivity | 209W/K.m |
| Cooling Surface Area (mm²) | 1500 CM² |
| Matching optics | 60°、90°、120°、TypeII |
| Protection level | IP67 |
| Crafts | Stamping & Riveting |
| Color & Finishing | Power coating |
| Weight | 480 Kg |
| Quantity | 1PCS/Box 20Box/CTN 48CTN/Pallet |
| Box size | 310*82*52 mm |
| CTN size | 530*325*185 mm |
| Typical applications | Roadway，Street Light，Parking Lot，Tunnel Light |
Prdouct Description
Designed to be used with the LRM modules engine , SRM 30-W heat sink is part of the ecosystem of parts for the LRM LED module engine family to help lighting manufacturers speed their time to market.
Lanyeeh Led modules heat sinks provide a The luminaire designs, regardless of the emissions lumens, require the additional heat dissipation that can be provided by a heat sink.
Stamping is a sheet metal forming process that can be used to manufacturer heat sinks or thermal management module. Because it is lightweight and requires no moving parts, the Folded Fin on a stamping part is a highly reliable, passive thermal solution with a virtually unlimited operational life. The heat sink fins for LED street light assembly is also made by stamping method.

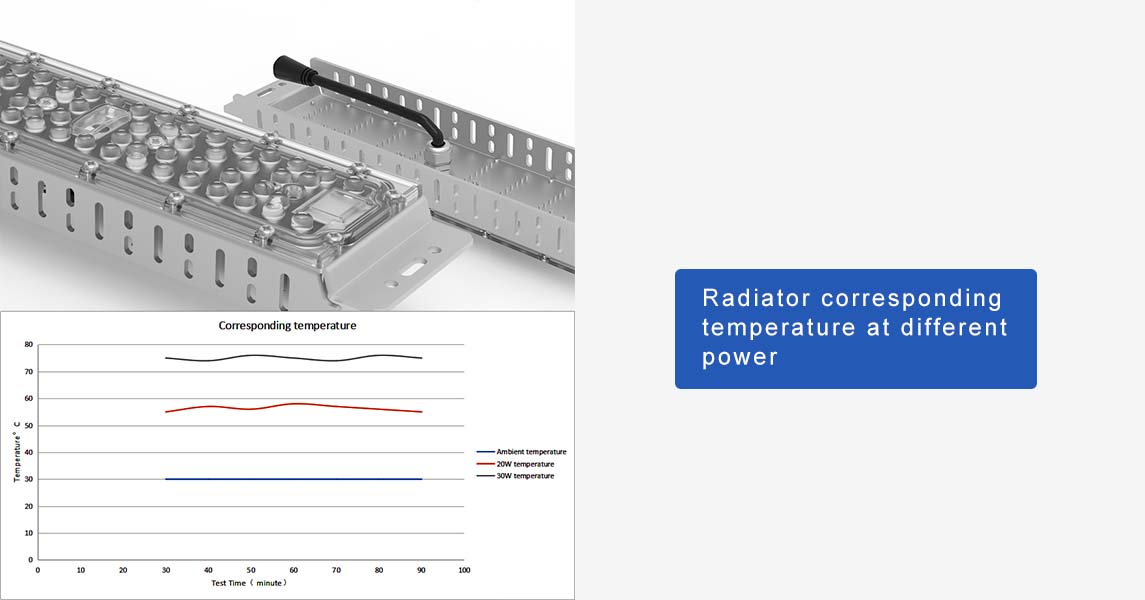

◈ Radiator corresponding temperature at different power
In order to adapt to a variety of application environments, there are a variety of optical options, 20 °, 40 °, 60 °, 90 °, 120 °, Type II
The lens is an optical PC material with a light extraction efficiency of up to 94%.
Anti-aging, anti-UV, quality assurance 5 years

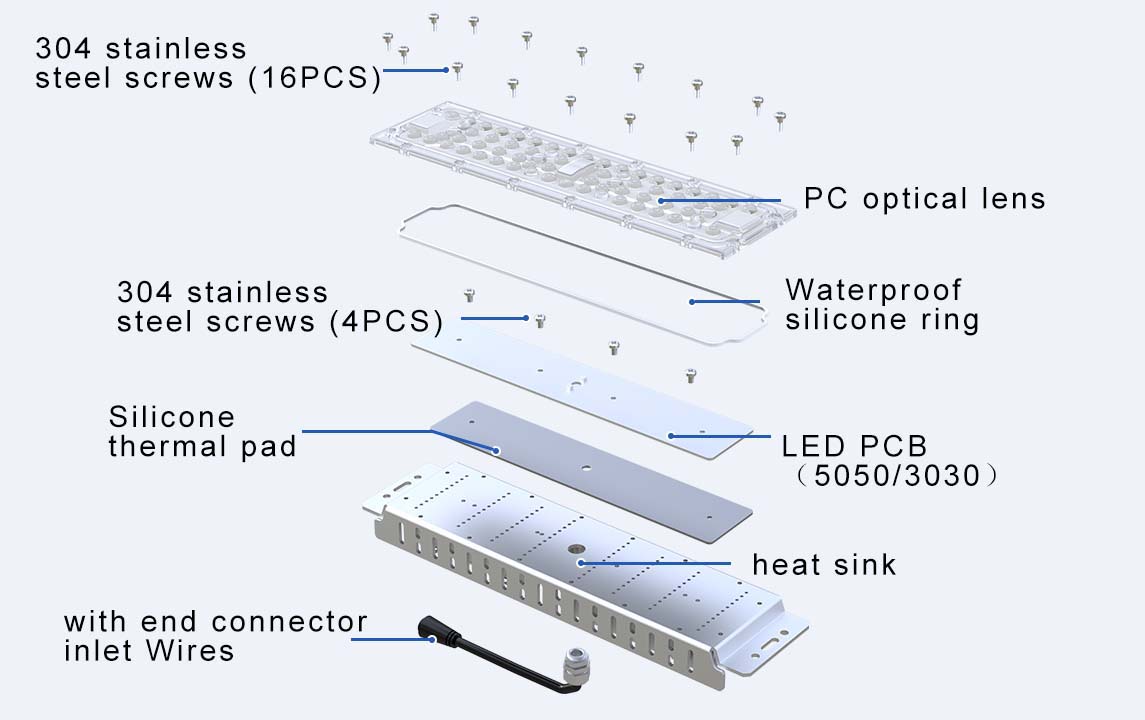

Product Structure
