Click on the image to view the original image
| Model | SSM-28LT30、SSM-28LT35、SSM-28LT50 |
| Material | Aluminum |
| Cooling power | Max.50W |
| Thermal conductivity | 209W/K.m |
| Cooling Surface Area (mm²) | 1200 CM² |
| Matching optics | 60°、90°、120°、TypeI、TypeII |
| Protection level | IP67 |
| Crafts | Stamping & Riveting |
| Color & Finishing | Power coating |
| Weight | 270 Kg |
| Quantity | 1PCS/Box 32Box/CTN 42CTN/Pallet |
| Box size | 140*80*106 mm |
| CTN size | 500*300*225 mm |
| Typical applications | Street Light，Parking Lot，Garten Light |
Prdouct Description

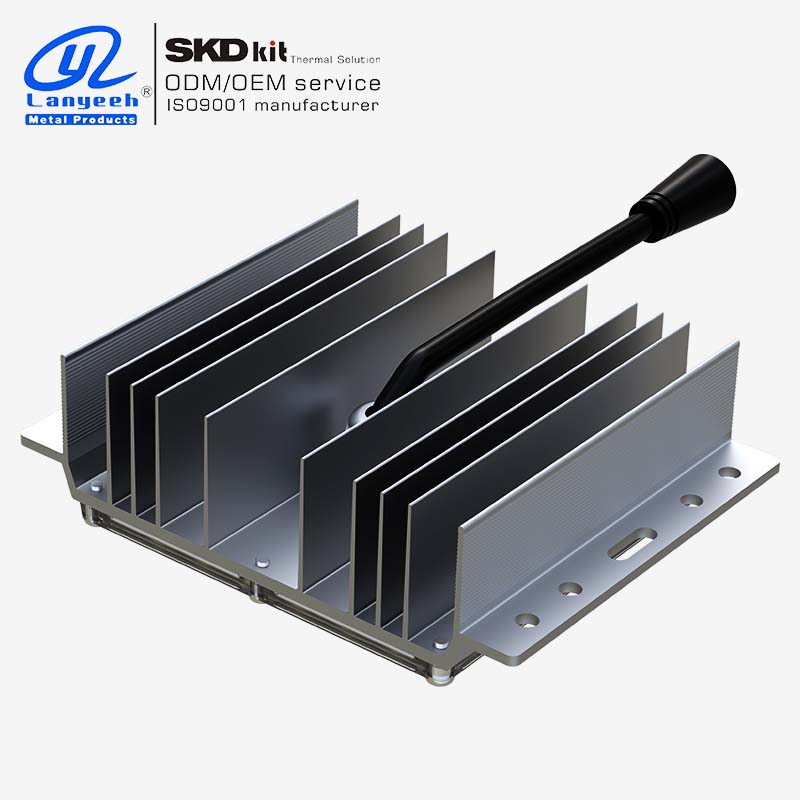

Lanyeeh designs and manufactures a wide range of extrusions LED Heatsinks that can be cut to size as required. Post processing such as machining, drilling, anodising, assembly etc. to specific requirements are also available.
Extruded Heat Sinks For LED Heatsinks and Various System Level Heat Dissipation.
Easy Assembling Which Provides Cost Savings.
Optimizes Thermal Management With The Flexibility to Cut To Length.
Features
LANYEEH is committed to creating high-quality, reasonably priced, well-designed LED lighting enclosures that allow you to easily install and save end users money and labor.

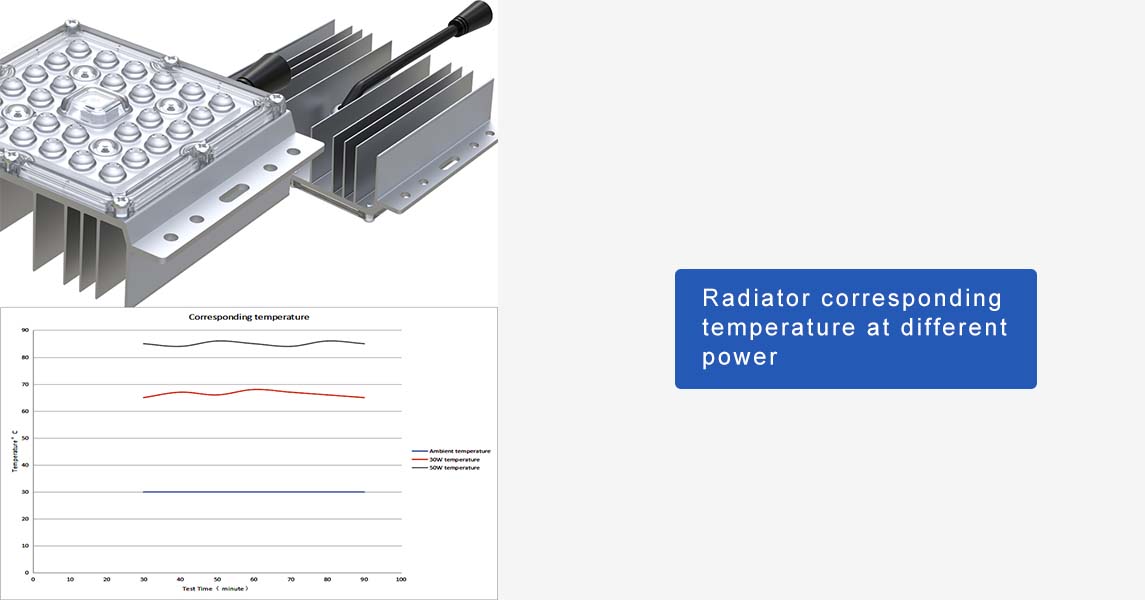

◈ Radiator corresponding temperature at different power
In order to adapt to a variety of application environments, there are a variety of optical options, 20 °, 40 °, 60 °, 90 °, 120 °, Type II
The lens is an optical PC material with a light extraction efficiency of up to 94%.
Anti-aging, anti-UV, quality assurance 5 years

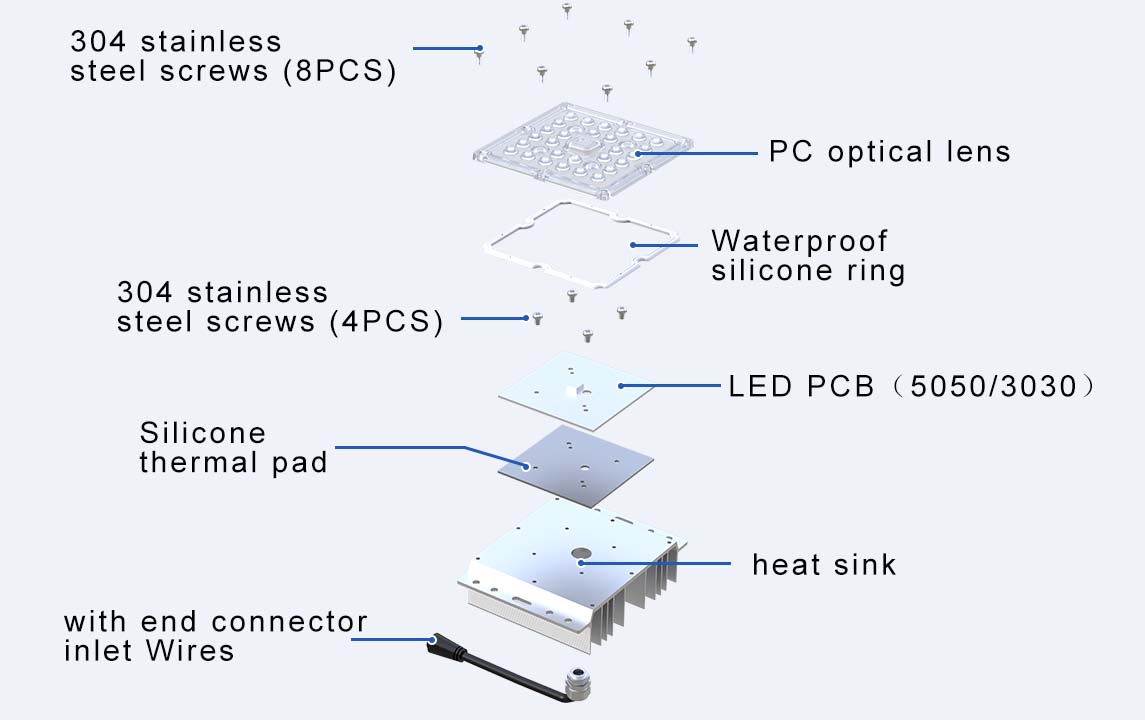

Product Structure
