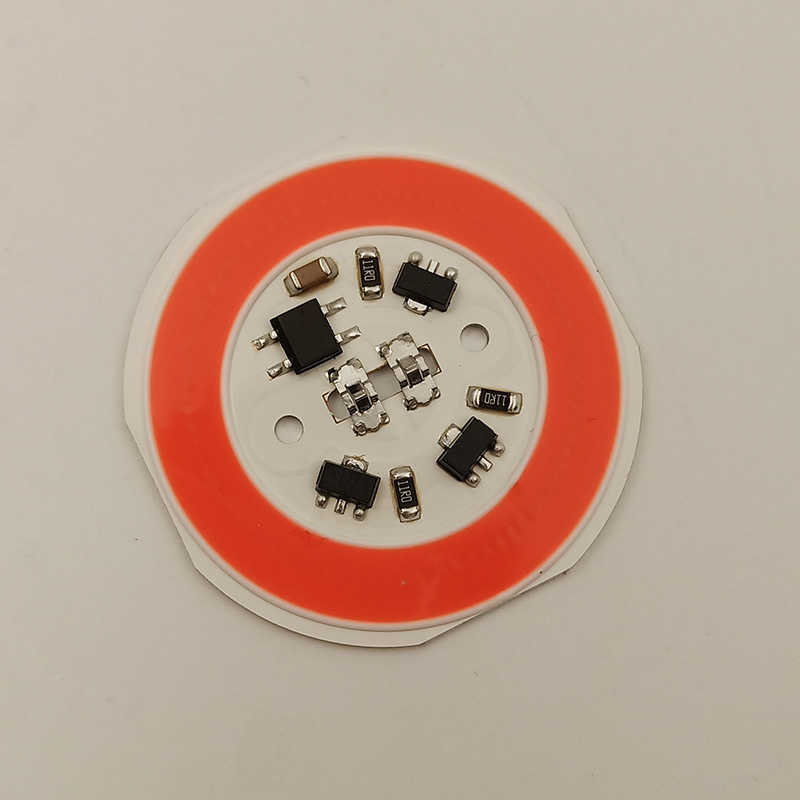

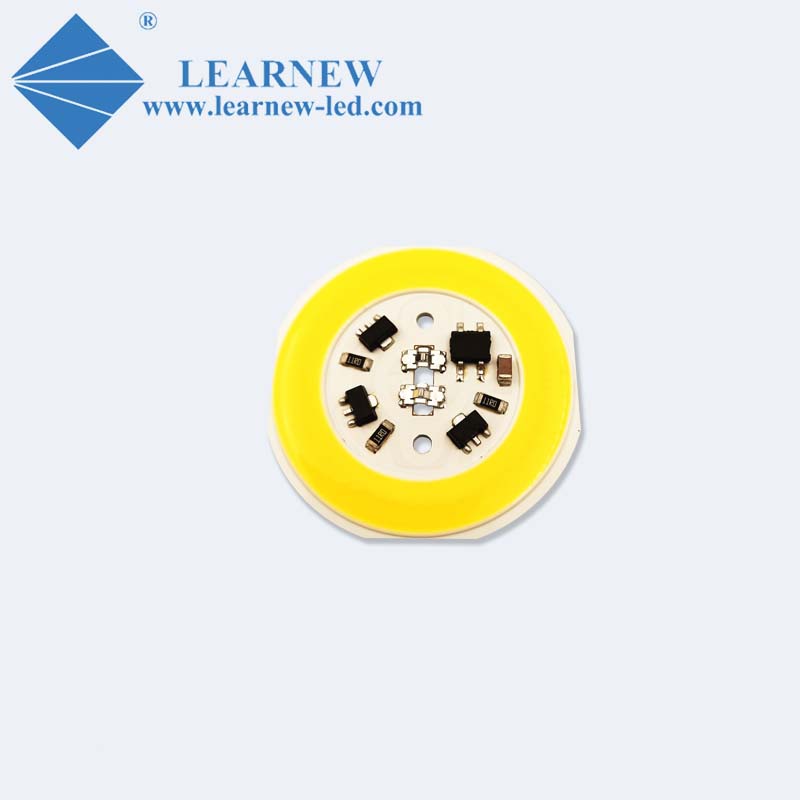

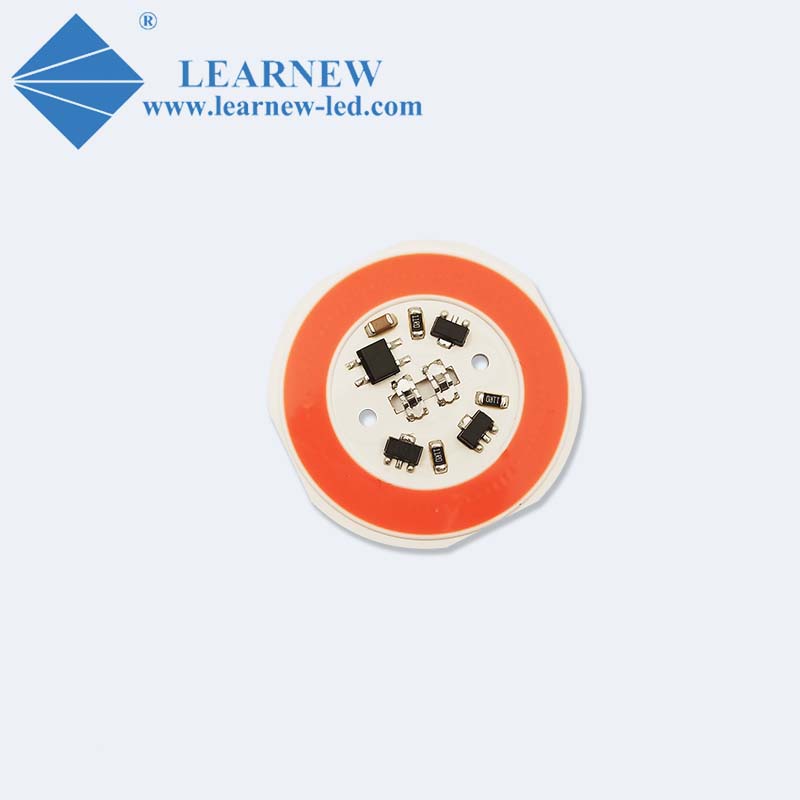

Light engine AC LED COB series
Think market’s think is the consistent attitude of Learnew,we design and prepare Light engine AC series as to support market Economic and Convenient assemble LED products.
Except cost performance,we also pay more source on excellent design and property of AC LED products.
Product feature
◪ Right circuit according to different application.
◪ Solve the series problem,such as uneven current in circuit,poor heat dissipation,Droop effect.
◪ IC driver with high-voltage chips arrangment perfect solve the problem of high dropout voltage.
◪ High PF provide,standard performance is PFC 0.92.
◪ High power efficiency provide,P.Eff 0.85.
| P/N | LN-AFR38XW-P20AC-C9 | LN-AFR38FS-P20AC-C9 |
| POWER | 20W |
| Wavelength or CCT | 3000-6000K | 380-780nm |
| CHIPS | Flip chip |
| VF | AC200-240V |
| PF Value | >0.90 |
| Power Efficacy | >0.85 |
| WHOLE SIZE | R38mm |
| LES | 9mm circular |
| VIEW ANGLE | 120DEG |
| Luminous efficacy | 80-100lm/w | 100-120lm/w | 4-6umol/s |
| Standard | CLS A | CLS B |
| Plug and Play | Plug type |
Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 1-3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
