SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED.

UV LED Array series

UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.

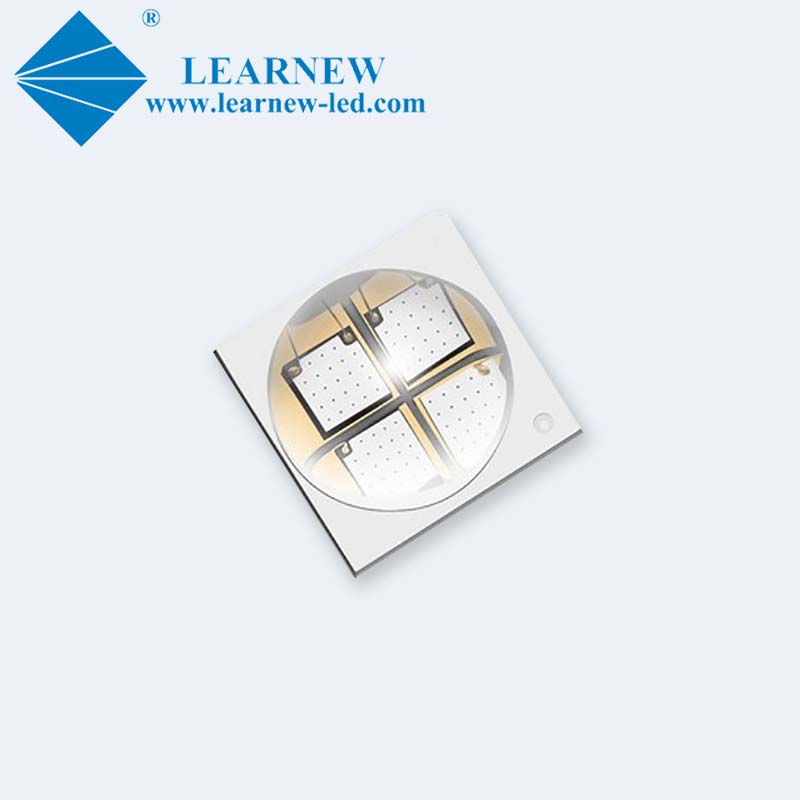

UV-A	LN-SMD6868UV-P4
POWER	5-10W
Dominant Wavelength	365nm	385nm	395nm
Optical Power	3200-4000mW	4000-4500mW	4100-5000mW
IF	500-700mA (Test=700mA)
VF	12-15V
WHOLE SIZE	6.8*6.8MM
Lighting Area	R5.0MM
VIEW ANGLE	60°
LENS	QUARTZ GLASS LENS
SUBSTRATE	ALN Coppering
CHIPS	VERTICAL EPISTAR (LG or HPO)

Note:
      A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
      B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
      C.WARRANTY IS 2 YRS.
      D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
      E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
      F.OEM & ODM IS ACCEPTABLE.
