SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED.

UV LED Array series

UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.

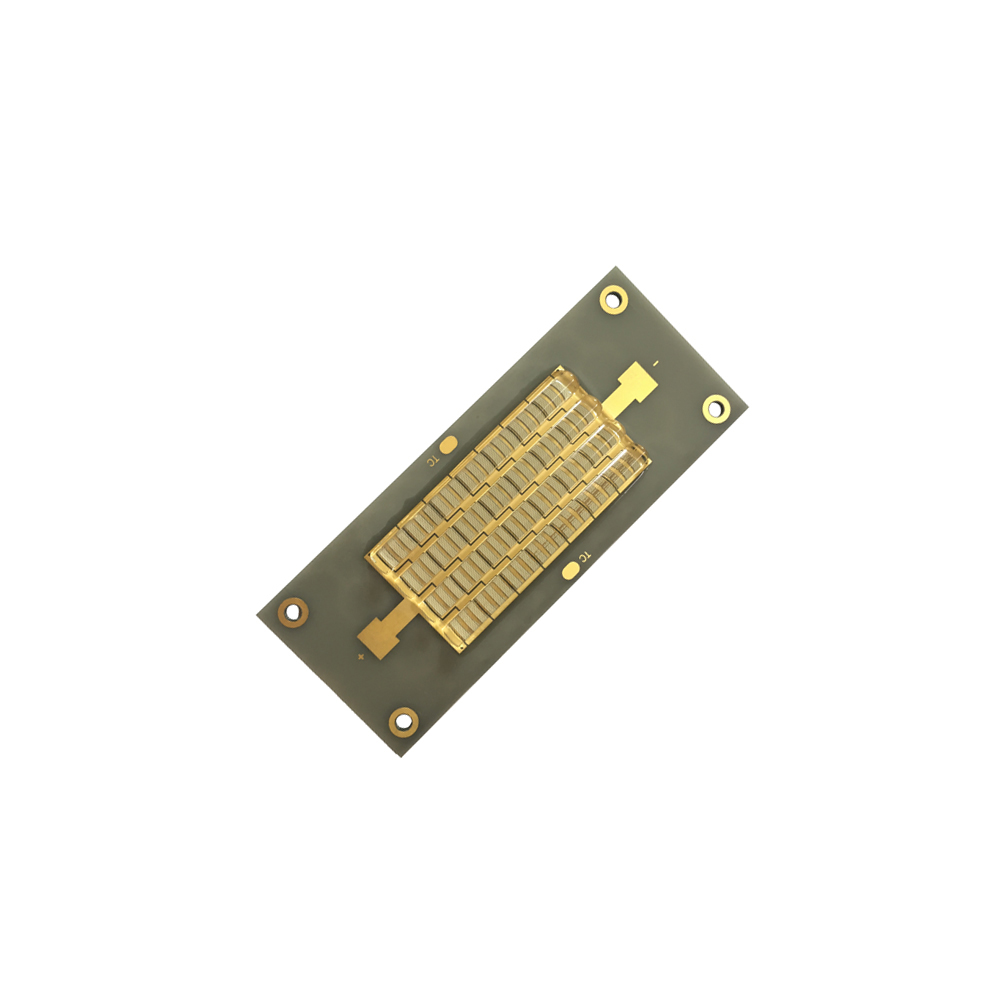

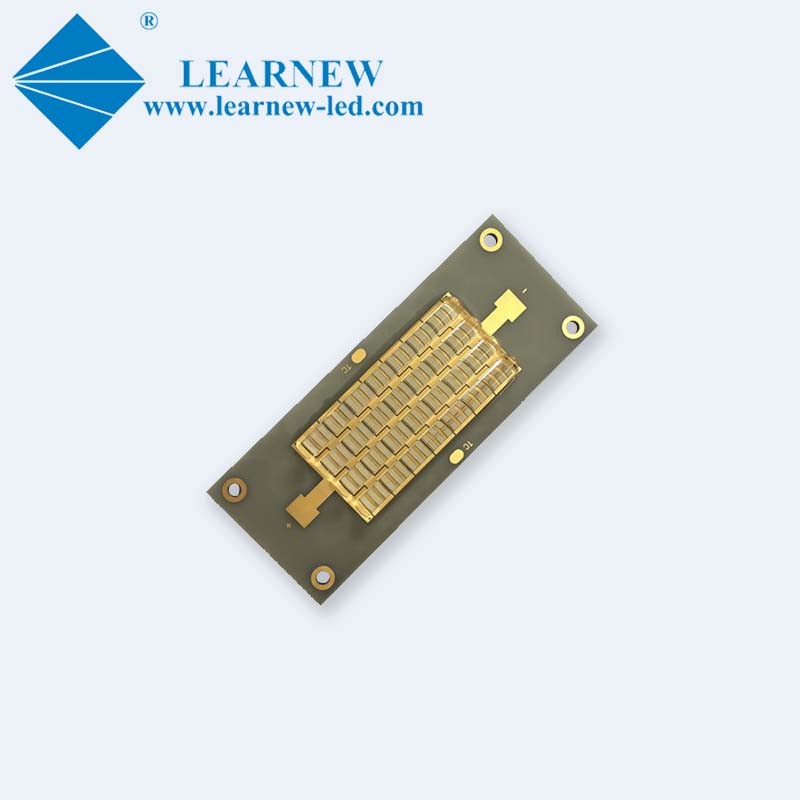

UV-A	LN-CVB75UV-P84
POWER	135-188W
Dominant Wavelength	365nm	385nm	395nm
Optical Power	65000-85000mW	82000-96000mW	86000-100000mW
IF	6000-8400mA (Test=6000mA)
VF	23-26V
WHOLE SIZE	75*30MM
Lighting Area	40*20MM
VIEW ANGLE	30°
LENS	QUARTZ GLASS LENS
SUBSTRATE	ALN Coppering
CHIPS	VERTICAL EPISTAR (LG or HPO)

Note:
      A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
      B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
      C.WARRANTY IS 2 YRS.
      D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
      E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
      F.OEM & ODM IS ACCEPTABLE.
