UV LED Array series

UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.

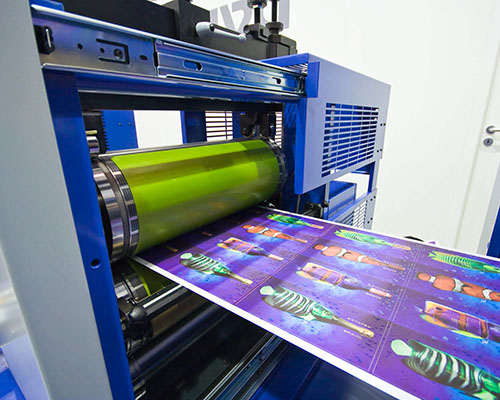

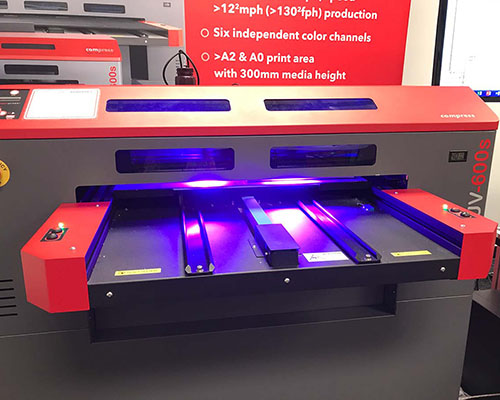

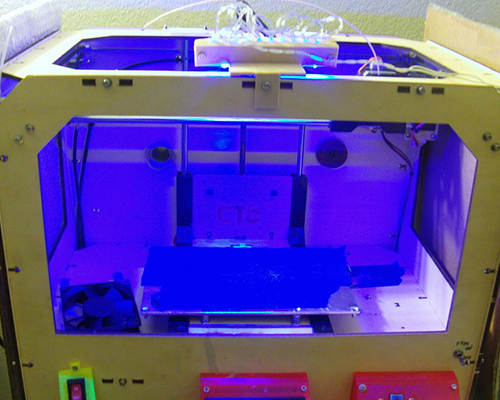

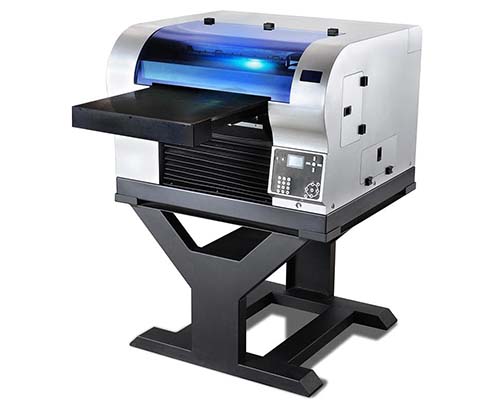

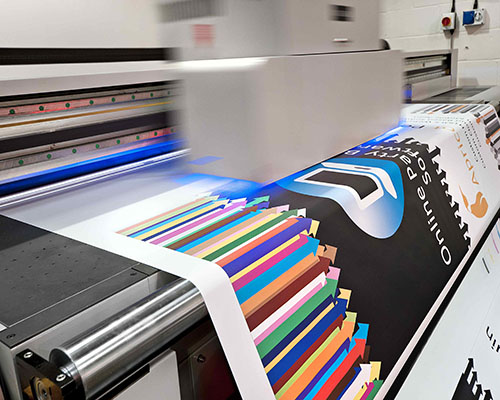

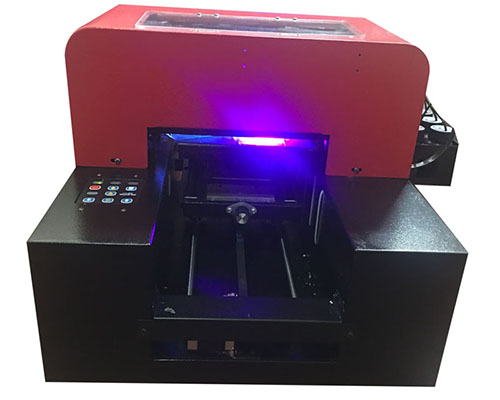

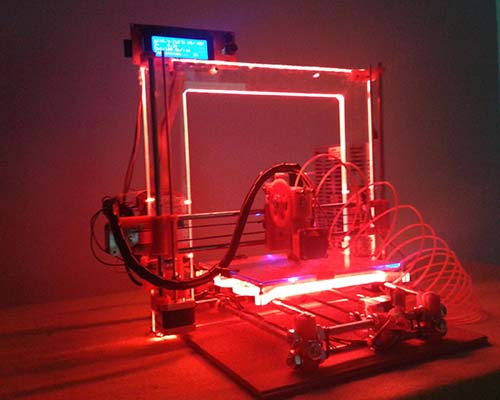

Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.

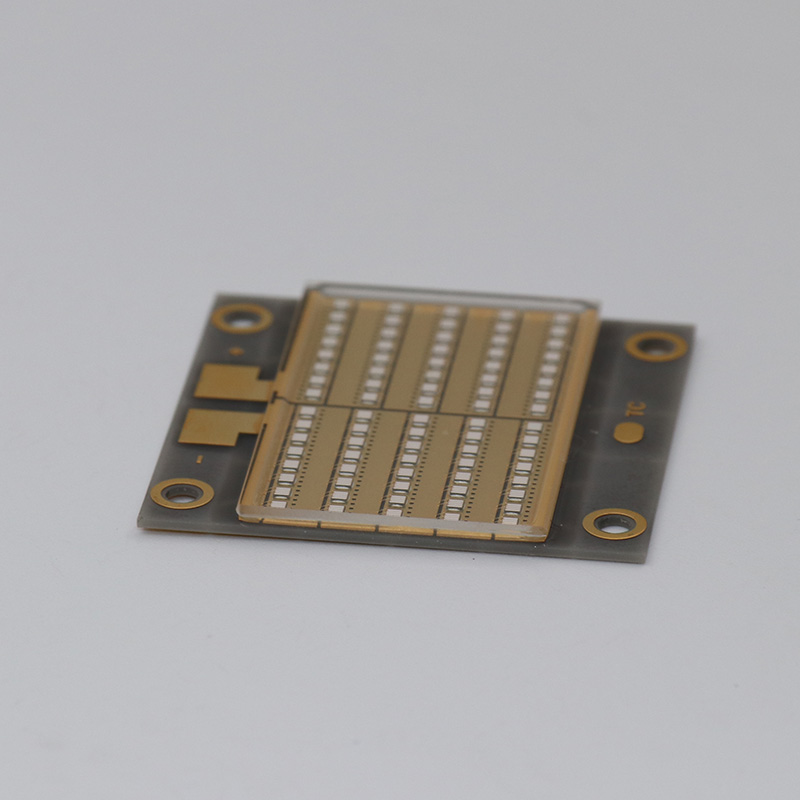

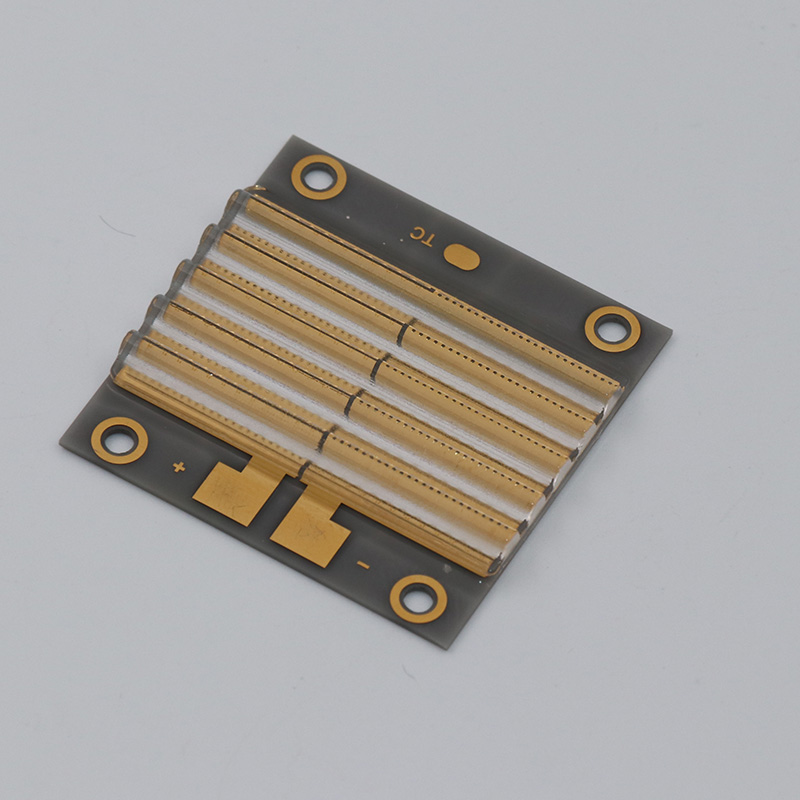

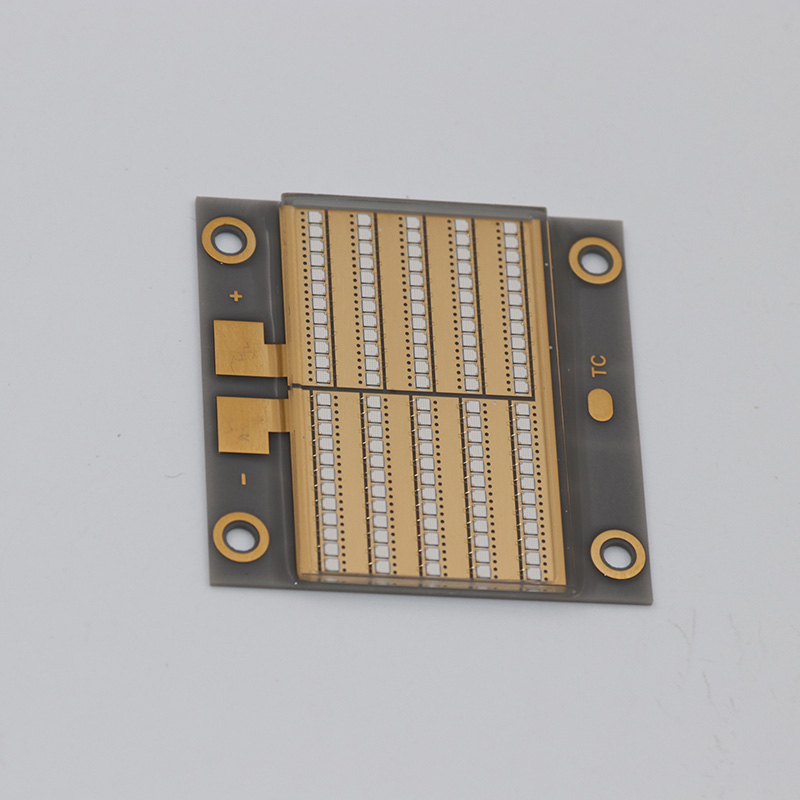

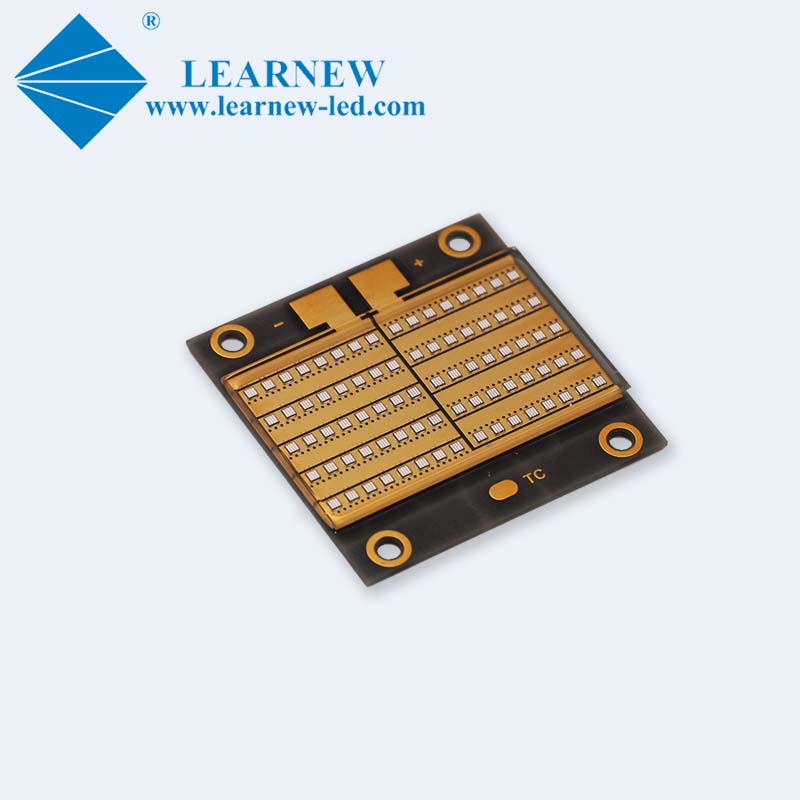

UV-A	LN-CVS35UV-P120
POWER	192-300W
Dominant Wavelength	365nm	385nm	395nm
Optical Power	95000-110000mW	120000-140000mW	125000-150000mW
IF	6000-8400mA (Test=8400mA)
VF	34-38V

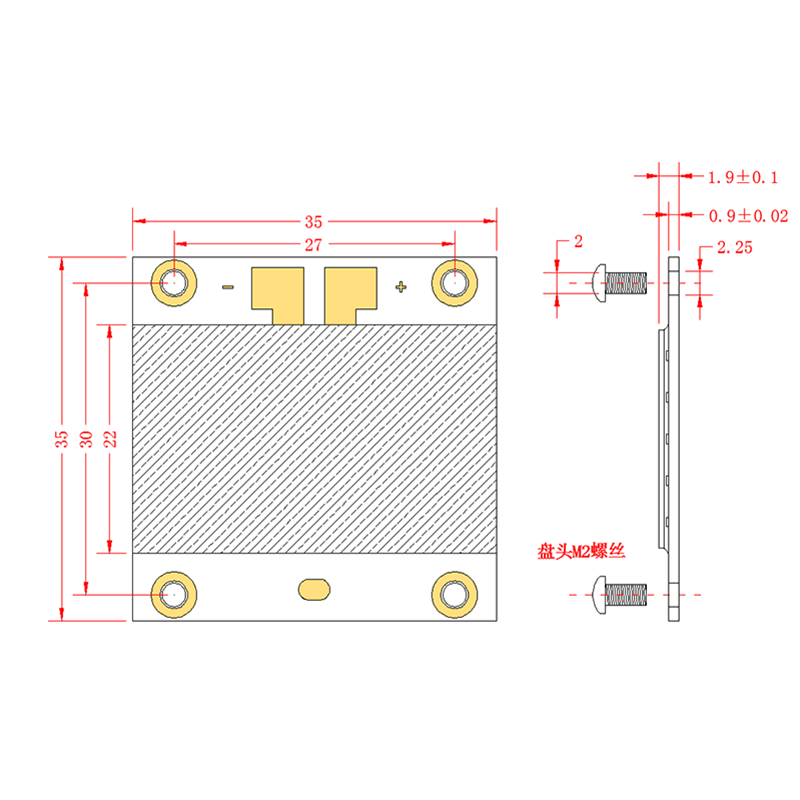

WHOLE SIZE	35*35MM
Lighting Area	22*35MM
VIEW ANGLE	120°
LENS	QUARTZ GLASS LENS
SUBSTRATE	ALN Coppering
CHIPS	VERTICAL EPISTAR (LG or HPO)

Note:
      A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
      B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
      C.WARRANTY IS 2 YRS.
      D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
      E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
      F.OEM & ODM IS ACCEPTABLE.
