Home > Products > Mirror Alu Substrate 19*19mm 30W 900mA RGB led cob chip for Stage light

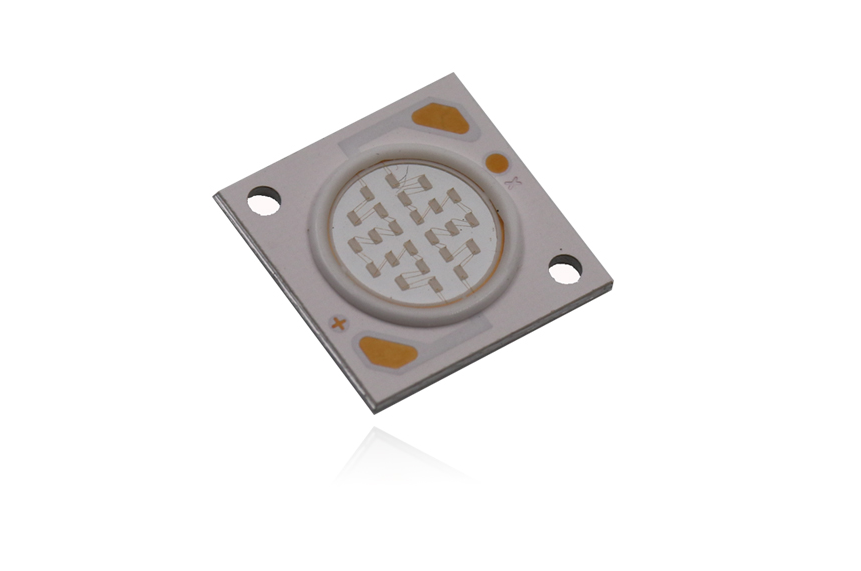

Mirror Alu Substrate 19*19mm 30W 900mA RGB led cob chip for Stage light

Click on the image to view the original image

Product：	views：9Mirror Alu Substrate 19*19mm 30W 900mA RGB led cob chip for Stage light
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-09-03 08:46

Product Details

Product parameters

ITEM	POWER	CCT	Luminous flux	IF	VF	WHOLE SIZE	LES SIZE	VIEW ANGLE	SUSTRATE	CHIPS
1919 series	15w	RED=620-630nm	40-60lm/w	300mA	30-36V	19x19mm	R17mm	120°	MIRROR ALU	EPISTAR OR EPILED
		GREEN=520-530nm	90-110lm/w		45-48V					EPISTAR OR EPILED
		BLUE=460-470nm	20-30lm/w		45-48V					HC
	20w	RED=620-630nm	40-60lm/w	600mA	20-24V					EPISTAR OR EPILED
		GREEN=520-530nm	90-110lm/w		30-34V					EPISTAR OR EPILED
		BLUE=460-470nm	20-30lm/w		30-34V					HC
	25w	RED=620-630nm	40-60lm/w	750mA	20-24V					EPISTAR OR EPILED
		GREEN=520-530nm	90-110lm/w		30-34V					EPISTAR OR EPILED
		BLUE=460-470nm	20-30lm/w		30-34V					HC
	30w	RED=620-630nm	40-60lm/w	900mA	20-24V					EPISTAR OR EPILED
		GREEN=520-530nm	90-110lm/w		30-34V					EPISTAR OR EPILED
		BLUE=460-470nm	20-30lm/w		30-34V					HC

Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
